Ball vibrator VK 960

Code: VK1B
15 119 Kč –4 %
Ball vibrator VK 960
15 119 Kč –4 % 14 364 Kč / pcs 11 871 Kč excl. VAT
up to 14 days
Delivery to:
14.01.2025
VK ball vibrator with 960 N force and 1/8" connection thread. Body made of exolated aluminium, ball and orbit made of hardened steel, cover made of AISI303 stainless steel. Installation in vertical position only. Operating temperature up to 80°C.

Detailed information

Product detailed description

Ball vibrator VK 960N

  • force at 6 bar 960 N
  • connection thread 1/8"
  • frequency 25 000 rpm
  • consumption 200 l/min

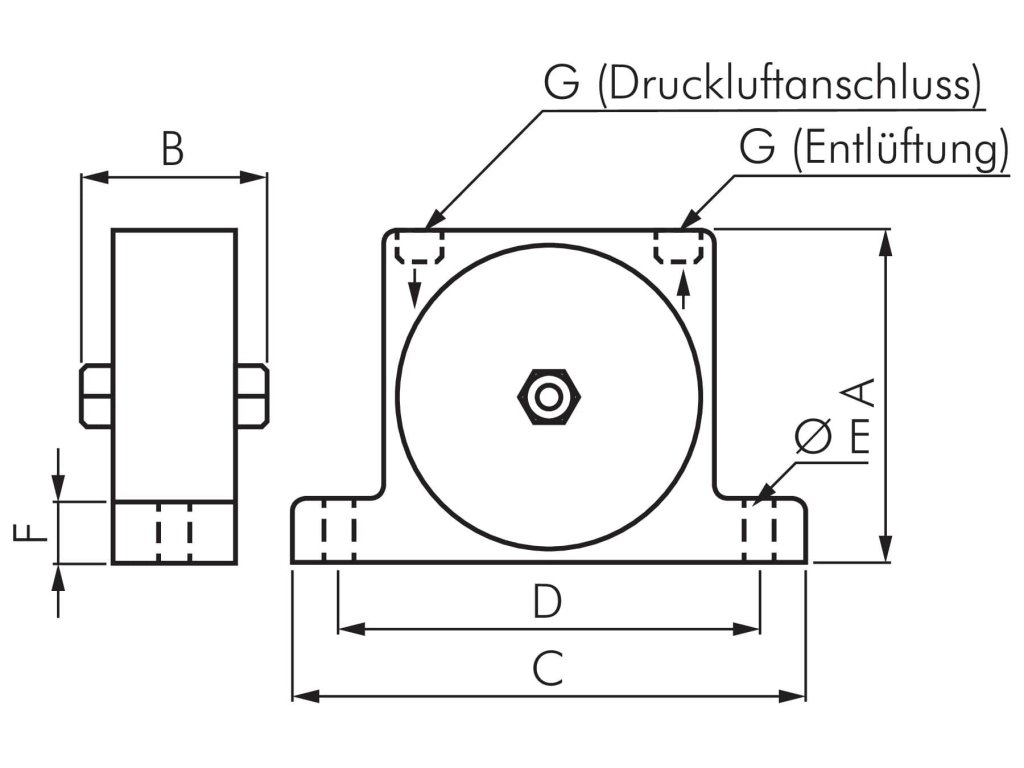

  • dimensions: 90x36x55mm
  • weight 0.22 kg

Additional parameters

Category: Ball vibrators VK
Weight: 0.22 kg
Frequency: 25,000/min
Body material: Aluminium
Material vibrator: Steel
Hole spacing: 73 mm
Force: 960 N
Consumption: 200 l/min
Temperature: 0/+80 °C

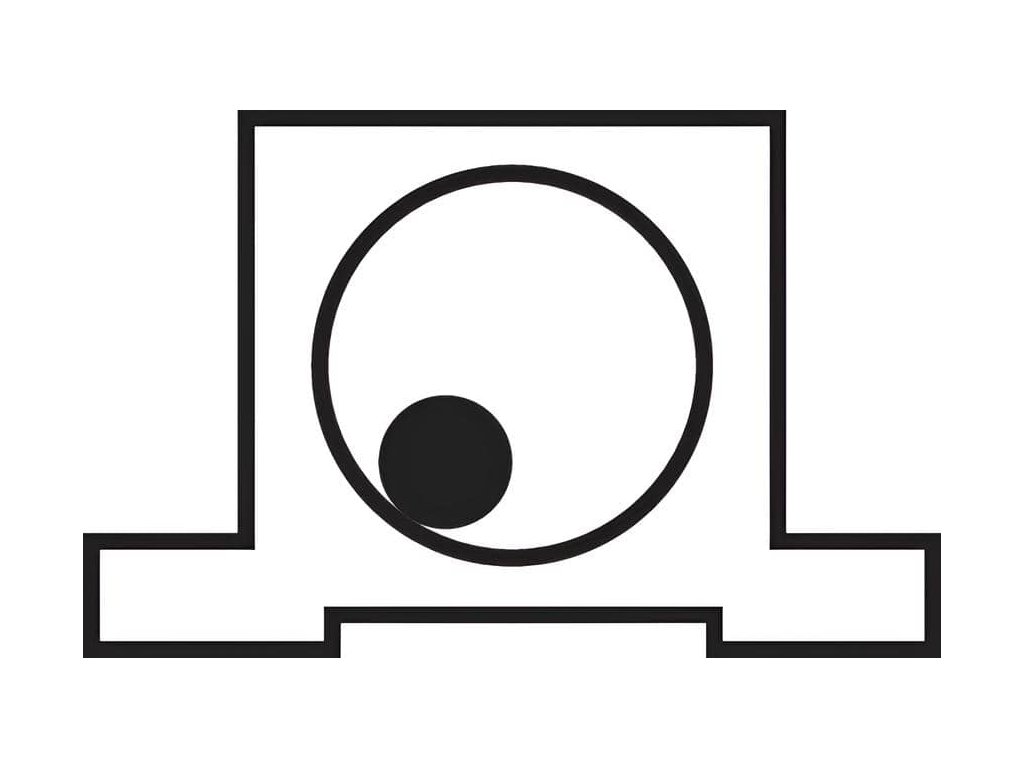

Source of vibration: Ball
