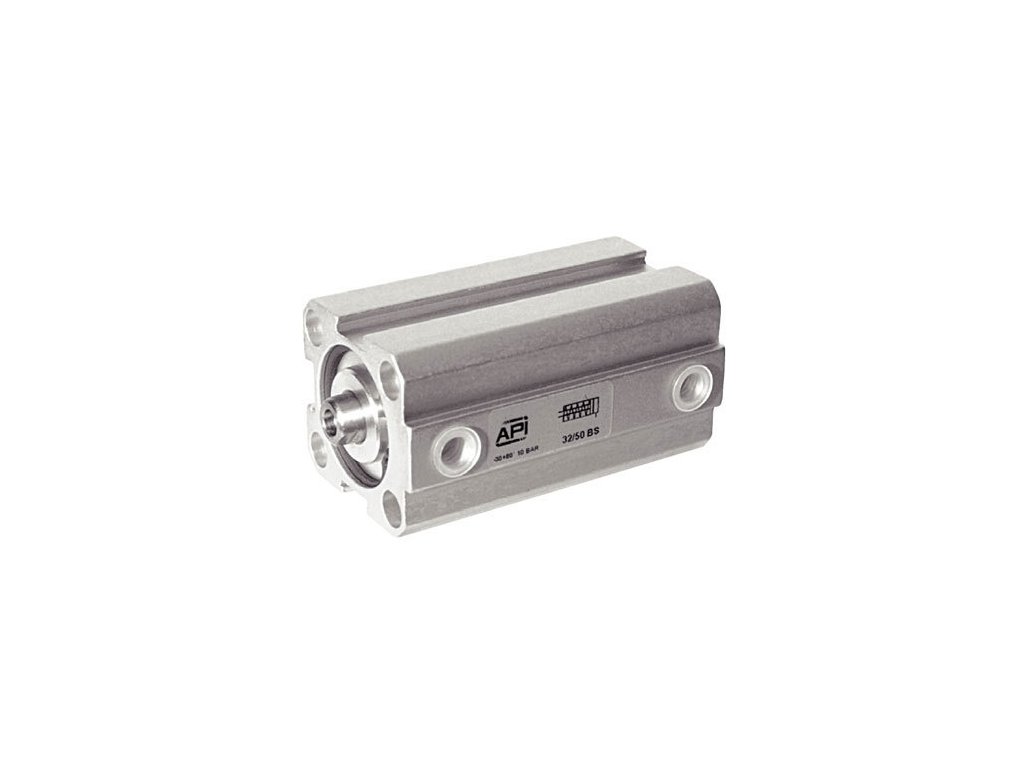

Short lift cylinders BD 12mm

Code: 12/5BD 12/10BD 12/15BD 12/20BD 12/25BD 12/30BD 12/40BD Choose variant
1 010 Kč 1 040 Kč 1 097 Kč 1 137 Kč 1 193 Kč 1 264 Kč 1 392 Kč from 1 010 Kč –5 % –5 % –5 % –5 % –5 % –4 % –5 % up to –5 %
Short lift cylinders BD 12mm
1 010 Kč 1 040 Kč 1 097 Kč 1 137 Kč 1 193 Kč 1 264 Kč 1 392 Kč from 1 010 Kč –5 % –5 % –5 % –5 % –5 % –4 % –5 % up to –5 % 959 Kč / pcs 988 Kč / pcs 1 042 Kč / pcs 1 080 Kč / pcs 1 133 Kč / pcs 1 201 Kč / pcs 1 322 Kč / pcs from 959 Kč / pcs 793 Kč excl. VAT 817 Kč excl. VAT 861 Kč excl. VAT 893 Kč excl. VAT 936 Kč excl. VAT 993 Kč excl. VAT 1 093 Kč excl. VAT from 793 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer
BD short-lift cylinders with a diameter of 12 mm without magnet in double-acting design. Variant without magnet and without damping in the end positions.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

BD 12 mm short lift cylinders

  • diameter 12 mm
  • strokes 1-40 mm
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel

Additional parameters

Category: BD and BDM double-acting short-lift cylinders
Version: Double acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: without magnet
Piston rod material: Stainless steel AISI303
Profile material: Aluminium
Lid material: Aluminium
Average: 12 mm
Temperature: -20/+80°C
Seals: NBR
Cylinder thrust: 61 N
Cylinder type: Short lift
Stroke selection: 1-40 mm
Connecting rod thread: M3
Minimální tlak: 2 bar
