Condensing loop KSSP-N
Code: KSSP-NProduct detailed description

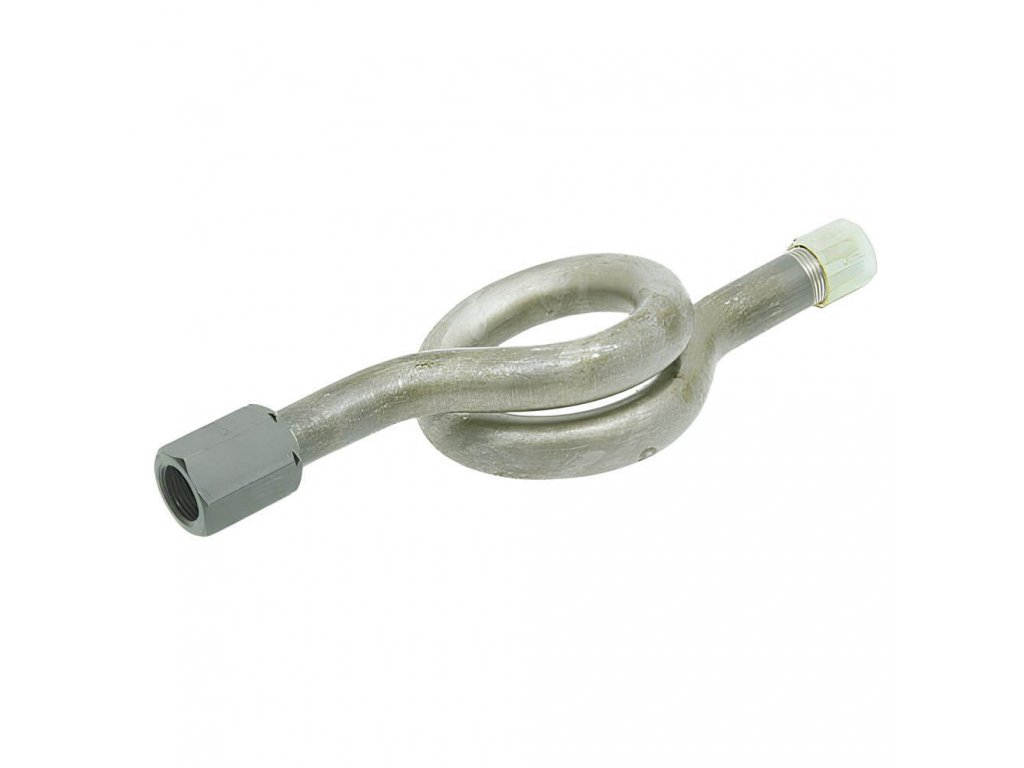

Condensing loop KSSP-N
- condensing loops are primarily designed to protect the gauge from the effects of medium or high temperature up to +300 °C
- two shapes available: curled or curved
- pin design - inlet external thread, outlet nut with internal thread
- welding design - inlet threaded nut, outlet threaded nut
- vertical mounting, outlet side up; in winter operation, the loop must be emptied or filled with antifreeze
Additional parameters
| Category: | Twisted condensing loops for manometers |
|---|---|
| Pressure: | 250 bar |
| Material: | Stainless steel |
| Medium: | Air, Water, Aggressive media, Non-aggressive media |
| Standard: | AN 137530D |
| Thread: | M20 x 1.5 |
