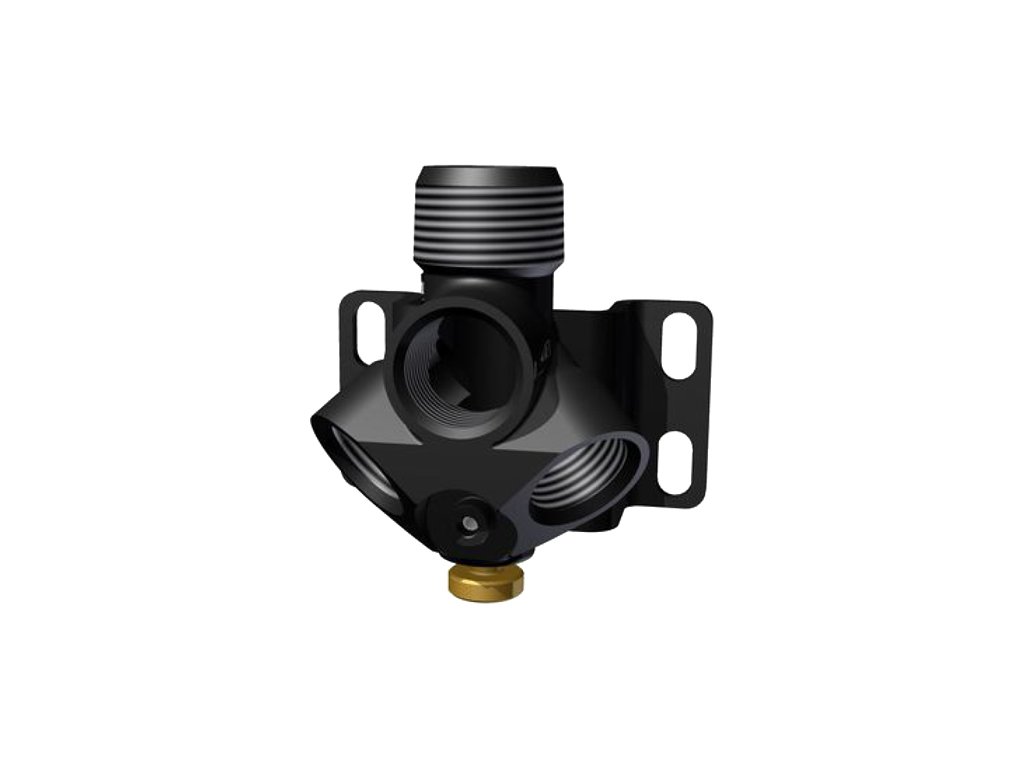

End box with G1/2" - G3/4" thread

Code: AKKT-1234

Not rated

959 Kč / pcs 793 Kč excl. VAT

Delivery to: 22.04.2025 Delivery offer

Airnet end box G1/2" and G3/4" thread. The system is characterised by its simple and quick installation. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant. Made of aluminium.

Detailed information

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Product detailed description

Connecting adapter G1/2" - G3/4"

length 77 mm
width 59 mm
thread G1/2" and G3/4"
weight 0.35 kg
material aluminum

Additional parameters

Category:	Tvarovky potrubních rozvodů, nástrčný systém
Version:	End boxes
Pressure:	13 bar
Material:	Aluminium
Medium:	Compressed air, inert gas
Working temperature:	-20/+70°C
Hardness:	70°N
Thread:	G 3/4"

Aluminum tube in 6 m rod 20 / 17.4 - 12.5 bar

Tip

746 Kč –2 %

Aluminum tube in 6 m rod 20 / 17.4 - 12.5 bar

(27 pcs)

598 Kč excl. VAT

724 Kč

Powder-coated blue aluminium pipe with 20 / 17.4 mm dimension for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-20

Aluminum tube in 6 m rod 20 / 17.4 - 12.5 bar - green

Tip

933 Kč –3 %

Aluminum tube in 6 m rod 20 / 17.4 - 12.5 bar - green

(64 pcs)

748 Kč excl. VAT

905 Kč

Powder-coated aluminium pipe in green colour with a dimension of 20/17.4 mm and a length of 6 m designed for piping of compressed air and inert gases up to 12.5 bar. Pipe...

Code: ALG-T6-20

Aluminum tube in 6 m rod 25 / 22.2 - 12.5 bar

Tip

1 025 Kč –3 %

Aluminum tube in 6 m rod 25 / 22.2 - 12.5 bar

(244 pcs)

821 Kč excl. VAT

994 Kč

Powder-coated blue aluminium pipe with a dimension of 25 / 22.2 mm for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-25

Aluminum tube in 6 m rod 25 / 22.2 - 16 bar - green

Tip

1 198 Kč –3 %

Aluminum tube in 6 m rod 25 / 22.2 - 16 bar - green

(47 pcs)

960 Kč excl. VAT

1 162 Kč

Powder-coated aluminium pipe in green colour, 25 / 22,2 mm in length 6 m, designed for piping of compressed air and inert gases up to 12,5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALG-T6-25

Aluminum tube in 3 m rod 25 / 22.2 - 12.5 bar

New

512 Kč –2 %

Aluminum tube in 3 m rod 25 / 22.2 - 12.5 bar

411 Kč excl. VAT

497 Kč

Powder-coated blue aluminium pipe with a dimension of 25 / 22.2 mm and a length of 3 m designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material -...

Code: ALB-T3-25

Aluminum tube in 6 m rod 63 / 59 - 12.5 bar

Tip

3 055 Kč –2 %

Aluminum tube in 6 m rod 63 / 59 - 12.5 bar

(87 pcs)

2 450 Kč excl. VAT

2 964 Kč

Powder-coated blue aluminium pipe with a dimension of 63/59 mm and a length of 6 m for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-63

Aluminum tube in 6 m rod 100 / 94 - 16 bar

Tip

6 034 Kč –3 %

Aluminum tube in 6 m rod 100 / 94 - 16 bar

(45 pcs)

4 837 Kč excl. VAT

5 853 Kč

Powder-coated blue aluminium pipe with a dimension of 100 / 94 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-100

Aluminum tube in 3 m rod 40 / 36.4 - 12.5 bar

New

951 Kč –3 %

Aluminum tube in 3 m rod 40 / 36.4 - 12.5 bar

762 Kč excl. VAT

922 Kč

Powder-coated blue aluminium pipe of 40 / 36.4 mm, 3 m long, designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T3-40

Aluminum tube in 6 m rod 80 / 76 - 16 bar

Tip

3 903 Kč –3 %

Aluminum tube in 6 m rod 80 / 76 - 16 bar

(156 pcs)

3 129 Kč excl. VAT

3 786 Kč

Powder-coated blue aluminium pipe with a dimension of 80/76 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-80

Aluminum tube in 6 m rod 32 / 29 - 12.5 bar

Tip

1 438 Kč –2 %

Aluminum tube in 6 m rod 32 / 29 - 12.5 bar

(184 pcs)

1 153 Kč excl. VAT

1 395 Kč

Powder-coated aluminium pipe in blue colour, 32 / 29 mm in length 6 m, designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-32

Aluminum tube in 6 m rod 40 / 36.4 - 12.5 bar

Tip

1 901 Kč –3 %

Aluminum tube in 6 m rod 40 / 36.4 - 12.5 bar

(160 pcs)

1 524 Kč excl. VAT

1 844 Kč

Powder-coated blue aluminium pipe of 40 / 36.4 mm, 6 m long, designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-40

Aluminum tube in 6 m rod 50 / 46 - 12.5 bar

Tip

2 768 Kč –3 %

Aluminum tube in 6 m rod 50 / 46 - 12.5 bar

(57 pcs)

2 219 Kč excl. VAT

2 685 Kč

Powder-coated blue aluminium pipe with 50/46.0 mm dimension and 6 m length designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T6-50

Aluminum tube in 3 m rod 32 / 29 - 12.5 bar

New

614 Kč –2 %

Aluminum tube in 3 m rod 32 / 29 - 12.5 bar

493 Kč excl. VAT

596 Kč

Powder-coated aluminium pipe in blue colour, 32 / 29 mm, 3 m long, designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T3-32

Aluminum tube in 3 m rod 50 / 46 - 12.5 bar

New

1 217 Kč –3 %

Aluminum tube in 3 m rod 50 / 46 - 12.5 bar

975 Kč excl. VAT

1 180 Kč

Powder-coated blue aluminium pipe of 50/46.0 mm dimension, 3 m long, designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T3-50

Aluminum tube in 3 m rod 20 / 17.4 - 12.5 bar

New

373 Kč –2 %

Aluminum tube in 3 m rod 20 / 17.4 - 12.5 bar

299 Kč excl. VAT

362 Kč

Powder-coated blue aluminium pipe with 20 / 17.4 mm dimension for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

Code: ALB-T3-20

Show all alternative products

Be the first who will post an article to this item!

Add a rating

Be the first who will post an article to this item!

Add a comment

piping system with easy installation

Revolution in compressed air distribution

Pipelines designed for compressed air (blue) and inert gases (green) of the brand AIRnet are a modern and reliable option for air ducting. They outperform their competitors in several areas, be it easy handling, low weight or absolutely effortless joining. Compared to steel pipes, it is also a more economical option, which is not subject to corrosion and its installation does not require any special tools. All you need are your own hands and possibly classic "home" tools.

Cooperation of aluminium and polymerWhat is so special about AIRnet? The entire piping system is exclusively made of materials that are not subject to corrosion, which brings additional associated benefits such as eliminating the risk of contamination or a maximum operating pressure of PN13 for temperatures between -20 and 70°C, with a lowest dew point as low as -70°C. The entire system consists of aluminium pipes and polymer couplings with clearances from 20 to 100 mm (3/4" to 4"). The perfectly smooth surface inside the pipe does not allow air to circulate inside (the coefficient of friction is reduced by almost half compared to galvanized pipe), thus also achieving a minimum pressure gradient, which saves both the compressor and your wallet.

Installation without a drop of sweat

Another great advantage of AIRnet is its high compatibility and ease of installation. The system can be connected to the vast majority of existing pipelines, its light weight (approx. 5 kg for 50 mm diameter) makes it easy to assemble by a single technician without special training, and no welding, gluing or pressing is required when using polymer couplings. The connection to the coupling itself is extremely fast and takes on average 2-3 minutes.

Another advantage of AirNet piping:

10 year warranty
fast cutting of aluminum tubes
quick and easy pipe deburring - pipes can be easily slid into the couplings
piping modifications are easy - fittings and pipes can be easily dismantled and reused

The system offer AIRnet can be found below.
