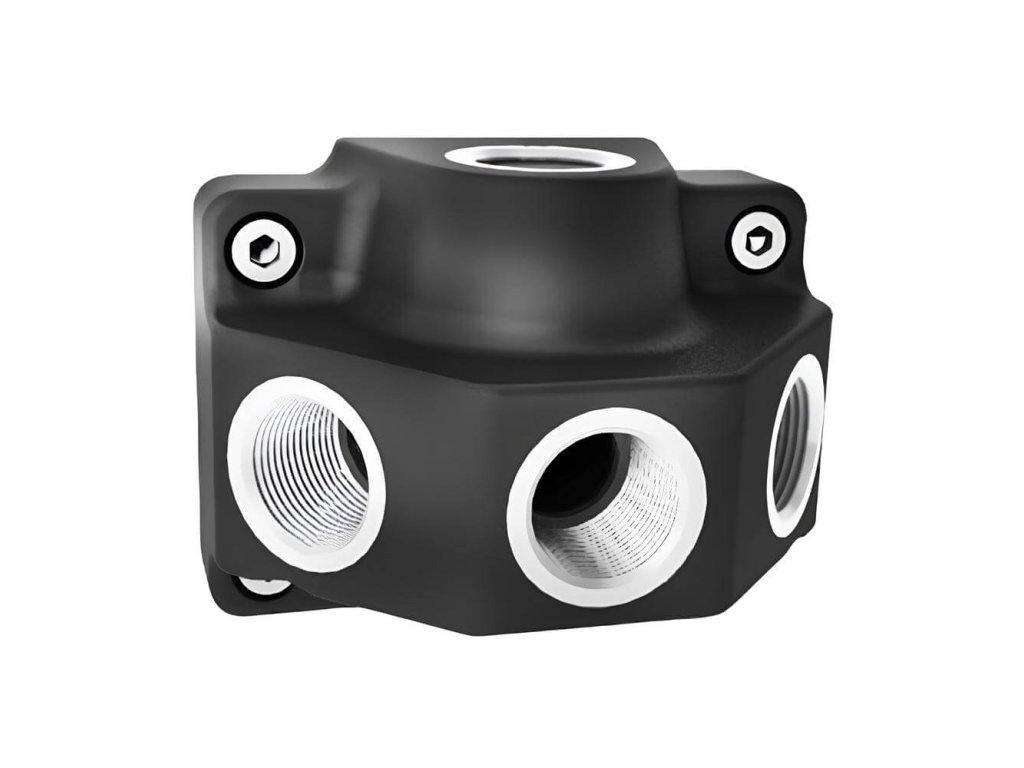

End box G3/4" - 3 x G1/2"

Code: TBA34-3

Not rated

Brand: SICOMAT - Potrubní rozvody stlačeného vzduchu

634 Kč –3 %

634 Kč –3 % 615 Kč / pcs 508 Kč excl. VAT

(56 pcs)

Delivery to: 03.04.2025 Delivery offer

End box input G3/4" and output 3 x G1/2". Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C to 70 °C, operating pressure -0.6 to 12 bar.

Detailed information

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

205 Kč –2 %

Plinth for boxes SR241 - 20 mm

(49 pcs)

164 Kč excl. VAT

199 Kč

Base for boxes 20 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C to 70 °C,...

Code: TB-P20

102 Kč –2 %

Plinth for boxes SR241 - 13 mm

(99 pcs)

82 Kč excl. VAT

99 Kč

Base for boxes 13 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C to 70 °C,...

Code: TB-P13

102 Kč –2 %

Stand for SR241 boxes - 10 mm

(94 pcs)

82 Kč excl. VAT

99 Kč

Base for boxes 10 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C to 70 °C,...

Code: TB-P10

Show all related products

Product detailed description

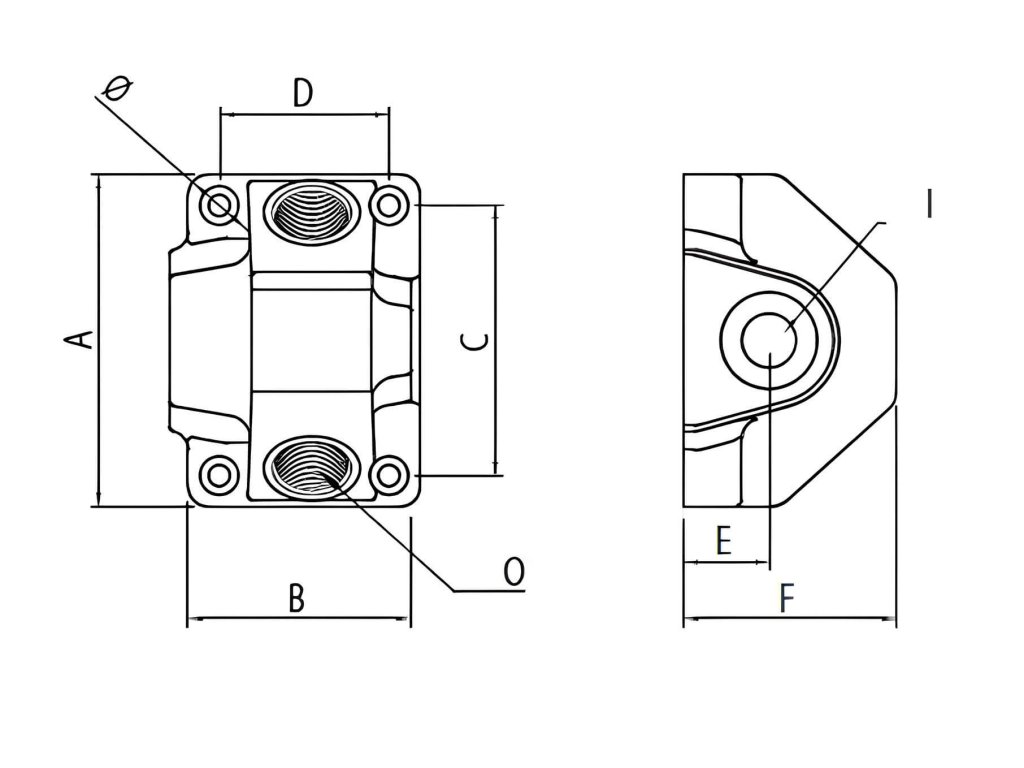

End box SICOAIR G3/4" and 3 x G1/2" TBA34-3

thread 1 - G3/4"
thread 2 - 3 x G1/2"
width A 86 mm
height B 60 mm
weight 108 g
working pressure -0,6 to 12 bar

Additional parameters

Category:	SicoAir piping system reducer tap connectors
Version:	End boxes
Pressure:	12 bar
Material:	Nylon PA6
Medium:	Compressed air
Working temperature:	-20/+70°C
Thread:	G 1/2", G 3/4"
