Compressor on frame A49B-4-T příkon 4 kW, sací výkon 595 l/min, tlak 11 bar, bez vzdušníku, napětí 400/50 V/Hz
Code: A49B-4-TRelated products
Product detailed description

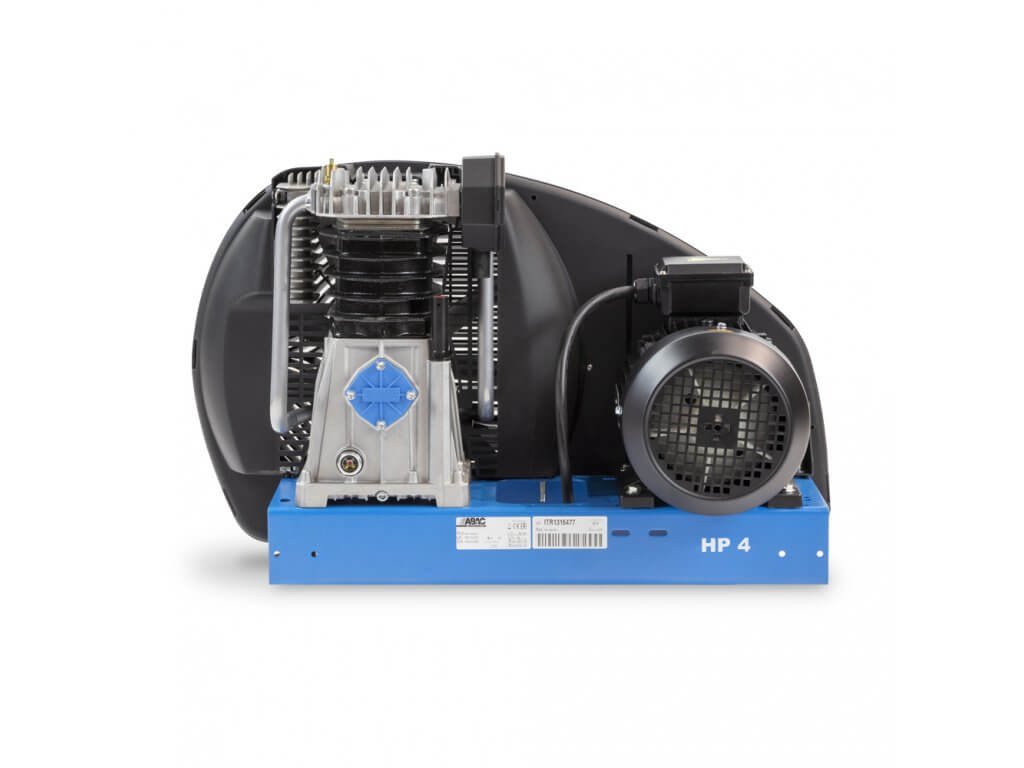

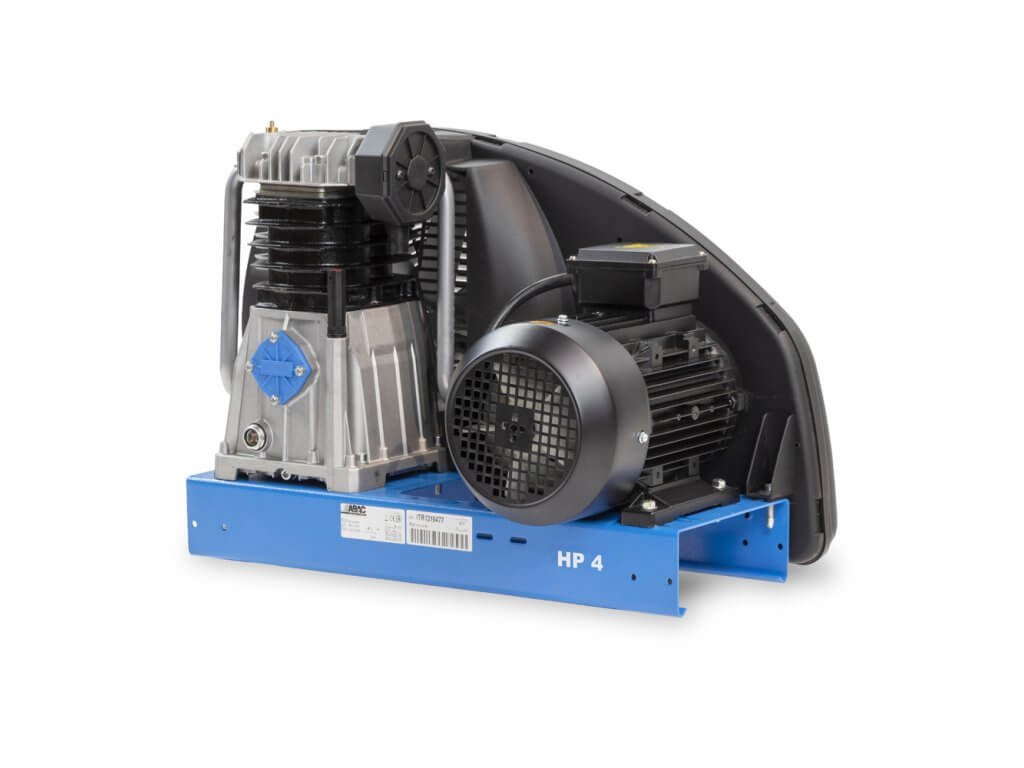

Separate compressor on base frame - A49B-4-T
The Pro Line portable compressor, consisting of a two-stage compressor unit mounted on a base frame, can be used as an auxiliary air source for seasonal fluctuations in consumption, to cover short-term peaks, as a back-up solution or for mounting on its own pressure vessel. The machine is equipped with a 400 V electric motor with an input power of 4 kW and is connected to an A49B compressor unit providing a suction power of 595 l/min and a pressure of 11 bar via V-belts. The compressor also has the following features and equipment:
- two-stage design with high compression efficiency
- aftercooler at the compressor outlet to reduce the air temperature
- oil reservoir equipped with oil gauge for easy reading of oil level
- electric motor equipped with temperature protection
- solenoid valve for controlling the start relief
- without airbox, mounted on a base frame
- the base frame is equipped with rubber bases for vibration damping
Note - the compressor is not equipped with a pressure switch, a custom electrical circuit is required to control it.
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years.
Additional parameters
| Category: | Compressors on the base frame |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 Bar |
| Suction power: | 595 l/min |
| Displacement: | 458 l/min |
| Pressure vessel volume: | It isn't |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oily |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Dimensions: | 738 x 430 x 563 mm |
| Weight: | 60 kg |
| Accessories: | Silent blocks |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
