Compact cylinders GEDS 40mm

Code: 40/25GEDS 40/50GEDS 40/75GEDS 40/100GEDS 40/125GEDS 40/150GEDS 40/175GEDS 40/200GEDS Choose variant
17 067 Kč 18 196 Kč 21 434 Kč 22 463 Kč 24 295 Kč 25 248 Kč 27 106 Kč 28 110 Kč from 17 067 Kč –5 %
Compact cylinders GEDS 40mm
17 067 Kč 18 196 Kč 21 434 Kč 22 463 Kč 24 295 Kč 25 248 Kč 27 106 Kč 28 110 Kč from 17 067 Kč –5 % 16 213 Kč / pcs 17 286 Kč / pcs 20 362 Kč / pcs 21 340 Kč / pcs 23 080 Kč / pcs 23 986 Kč / pcs 25 750 Kč / pcs 26 704 Kč / pcs from 16 213 Kč / pcs 13 399 Kč excl. VAT 14 286 Kč excl. VAT 16 828 Kč excl. VAT 17 636 Kč excl. VAT 19 074 Kč excl. VAT 19 823 Kč excl. VAT 21 281 Kč excl. VAT 22 069 Kč excl. VAT from 13 399 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant
Double acting GEDS cylinders with 40 mm diameter with magnet and bearing guide for piston rod. The rollers are equipped with fixed damping in the end positions.

Detailed information

Product detailed description

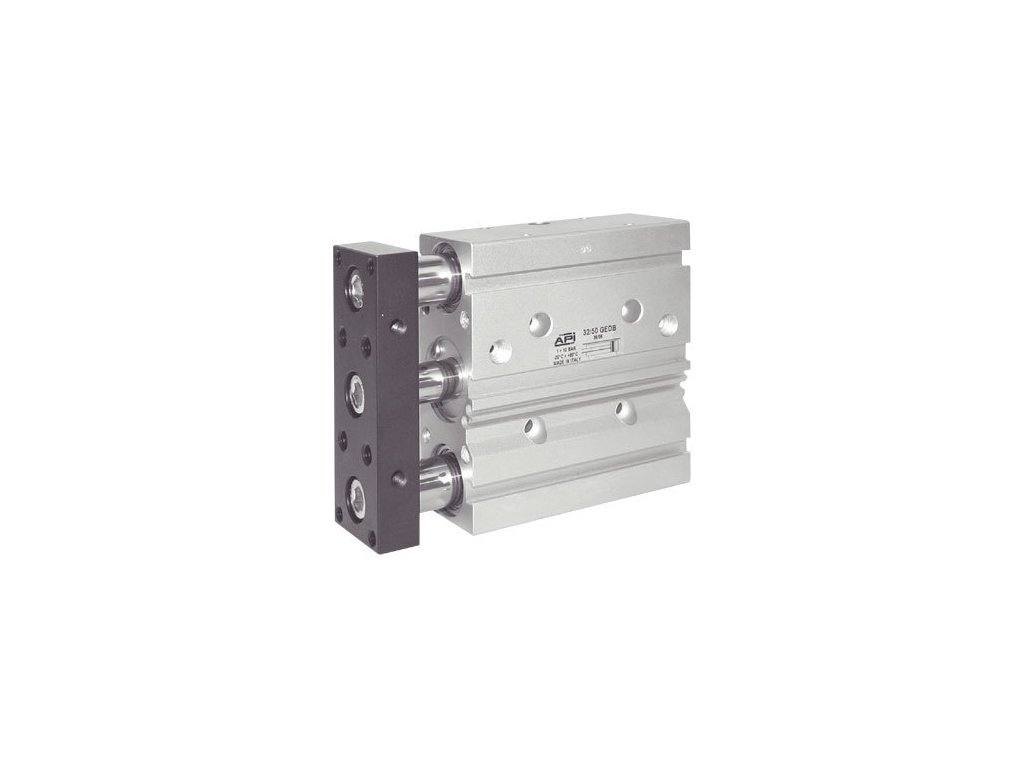

Double acting cylinders GEDS 40 mm with magnet and bearing guide

  • diameter 40 mm
  • strokes 1-250 mm
  • connection by 1/8" thread
  • working pressure 1,5 - 9 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact GED cylinders with guidance
Version: Double acting cylinders
Pressure: 9 bar
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 40 mm
Temperature: -10/+70 °C
Seals: NBR
Cylinder thrust: 679 N
Cylinder type: Compact
Stroke selection: 1-250 mm
Minimální tlak: 1,5 bar
