Compact cylinders GEDB 32mm

Code: 32/25GEDB 32/50GEDB 32/75GEDB 32/100GEDB 32/125GEDB 32/150GEDB 32/175GEDB 32/200GEDB Choose variant
10 365 Kč 10 918 Kč 12 498 Kč 13 377 Kč 14 808 Kč 15 611 Kč 16 414 Kč 18 170 Kč from 10 365 Kč –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % up to –5 %
Compact cylinders GEDB 32mm
10 365 Kč 10 918 Kč 12 498 Kč 13 377 Kč 14 808 Kč 15 611 Kč 16 414 Kč 18 170 Kč from 10 365 Kč –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % up to –5 % 9 847 Kč / pcs 10 372 Kč / pcs 11 874 Kč / pcs 12 708 Kč / pcs 14 068 Kč / pcs 14 831 Kč / pcs 15 593 Kč / pcs 17 262 Kč / pcs from 9 847 Kč / pcs 8 138 Kč excl. VAT 8 572 Kč excl. VAT 9 813 Kč excl. VAT 10 502 Kč excl. VAT 11 626 Kč excl. VAT 12 257 Kč excl. VAT 12 887 Kč excl. VAT 14 266 Kč excl. VAT from 8 138 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant
GEDB double acting cylinders with 32 mm diameter with magnet and sliding piston rod guide. The rollers are equipped with fixed damping in the end positions.

Detailed information

Product detailed description

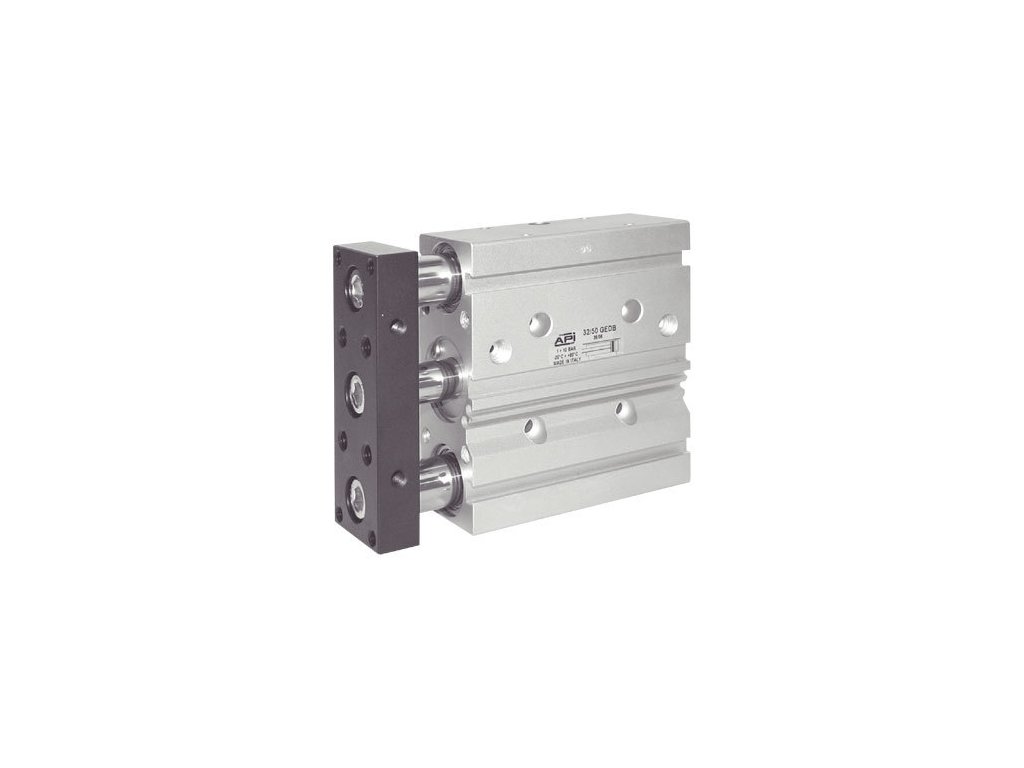

Double acting cylinders GEDB 32 mm with magnet and slide guide

  • diameter 32 mm
  • strokes 1-250 mm
  • connection by 1/8" thread
  • working pressure 1,5 - 9 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact GED cylinders with guidance
Version: Double acting cylinders
Pressure: 9 bar
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 32 mm
Temperature: -10/+70 °C
Seals: NBR
Cylinder thrust: 434 N
Cylinder type: Compact
Stroke selection: 1-250 mm
Minimální tlak: 1,5 bar
