    Compact GED cylinders with guidance

    gedb-valce-automatizace-vzduch
    • diameters 10 - 63 mm
    • standard compact cylinders with magnet and piston rod guide
    • double action design
    • cylinders are supplied with fixed damping in the end positions

    GEDB compact cylinders with sliding guide and GEDS with bearing guide
    vdmp vdmp Diameter
    mm    		 Strokes
    mm    		 Connection
    "    		 Compressive force at 6 bar
    N    		 Pressure
    bar    		 Temperature
    °C
    10/...GEDB 10/...GEDS 10 1-100 M5 42 1,5-9 -10/+70
    16/...GEDB 16/...GEDS 16 1-200 M5 109 1,5-9 -10/+70
    20/...GEDB 20/...GEDS 20 1-200 M5 170 1,5-9 -10/+70
    25/...GEDB 25/...GEDS 25 1-200 M5 265 1,5-9 -10/+70
    32/...GEDB 32/...GEDS 32 1-250 1/8" 434 1,5-9 -10/+70
    40/...GEDB 40/...GEDS 40 1-250 1/8" 679 1,5-9 -10/+70
    50/...GEDB 50/...GEDS 50 1-150 1/4" 1060 1,5-9 -10/+70
    63/...GEDB 63/...GEDS 63 1-150 1/4" 1680 1,5-9 -10/+70

    Bestsellers

    Compact cylinders GEDS 63mm
    from 24 244 Kč –5 %
    Compact cylinders GEDS 63mm
    up to 14 days
    Code: 63/25GEDS
    Was: 24 244 Kč  (–5 %)
    from 23 032 Kč
    (from 19 035 Kč excl. VAT)
    Compact cylinders GEDS 50mm
    from 20 606 Kč –5 %
    Compact cylinders GEDS 50mm
    up to 14 days
    Code: 50/25GEDS
    Was: 20 606 Kč  (–5 %)
    from 19 575 Kč
    (from 16 178 Kč excl. VAT)
    Compact cylinders GEDS 40mm
    from 17 067 Kč –5 %
    Compact cylinders GEDS 40mm
    up to 14 days
    Code: 40/25GEDS
    Was: 17 067 Kč  (–5 %)
    from 16 213 Kč
    (from 13 399 Kč excl. VAT)
    Compact cylinders GEDS 32mm
    from 19 125 Kč –5 %
    Compact cylinders GEDS 32mm
    up to 14 days
    Code: 32/25GEDS
    Was: 19 125 Kč  (–5 %)
    from 18 169 Kč
    (from 15 016 Kč excl. VAT)
    Compact cylinders GEDS 25mm
    from 13 603 Kč –5 %
    Compact cylinders GEDS 25mm
    up to 14 days
    Code: 25/25GEDS
    Was: 13 603 Kč  (–5 %)
    from 12 923 Kč
    (from 10 680 Kč excl. VAT)
    Compact cylinders GEDS 20mm
    from 11 996 Kč up to –5 %
    Compact cylinders GEDS 20mm
    up to 14 days
    Code: 20/25GEDS
    Was: 11 996 Kč  (–5 %)
    from 11 397 Kč
    (from 9 419 Kč excl. VAT)
    Compact cylinders GEDS 16mm
    from 10 592 Kč –5 %
    Compact cylinders GEDS 16mm
    up to 14 days
    Code: 16/25GEDS
    Was: 10 592 Kč  (–5 %)
    from 10 062 Kč
    (from 8 316 Kč excl. VAT)
    Compact cylinders GEDS 10mm
    from 12 276 Kč –99 %
    Compact cylinders GEDS 10mm
    up to 14 days
    Code: 10/25GEDS
    Was: 12 276 Kč  (–99 %)
    1 Kč
    (1 Kč excl. VAT)
    Compact cylinders GEDB 63mm
    from 19 049 Kč –5 %
    Compact cylinders GEDB 63mm
    up to 14 days
    Code: 63/25GEDB
    Was: 19 049 Kč  (–5 %)
    from 18 097 Kč
    (from 14 956 Kč excl. VAT)
    Compact cylinders GEDB 50mm
    from 15 310 Kč –5 %
    Compact cylinders GEDB 50mm
    up to 14 days
    Code: 50/25GEDB
    Was: 15 310 Kč  (–5 %)
    from 14 545 Kč
    (from 12 021 Kč excl. VAT)
    Show more products
    4 items total

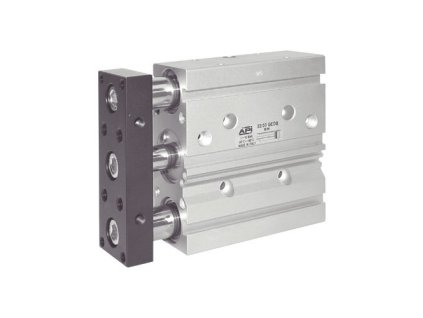

    Compact cylinders GEDB 50mm
    from 15 310 Kč –5 %
    Compact cylinders GEDB 50mm
    up to 14 days
    from 12 021 Kč excl. VAT
    from 14 545 Kč / pcs
    Detail

    Double acting GEDB cylinders with 50 mm diameter with magnet and sliding piston rod guide. The rollers are equipped with fixed damping in the end positions.

    Code: 50/25GEDB
    Compact cylinders GEDB 63mm
    from 19 049 Kč –5 %
    Compact cylinders GEDB 63mm
    up to 14 days
    from 14 956 Kč excl. VAT
    from 18 097 Kč / pcs
    Detail

    Double acting GEDB cylinders with 63 mm diameter with magnet and sliding piston rod guide. The rollers are equipped with fixed damping in the end positions.

    Code: 63/25GEDB
    Compact cylinders GEDS 50mm
    from 20 606 Kč –5 %
    Compact cylinders GEDS 50mm
    up to 14 days
    from 16 178 Kč excl. VAT
    from 19 575 Kč / pcs
    Detail

    Double acting GEDS cylinders with 50 mm diameter with magnet and bearing guide for piston rod. The rollers are equipped with fixed damping in the end positions.

    Code: 50/25GEDS
    Compact cylinders GEDS 63mm
    from 24 244 Kč –5 %
    Compact cylinders GEDS 63mm
    up to 14 days
    from 19 035 Kč excl. VAT
    from 23 032 Kč / pcs
    Detail

    Double acting GEDS cylinders with 63 mm diameter with magnet and bearing guide for piston rod. The rollers are equipped with fixed damping in the end positions.

    Code: 63/25GEDS
