Compact piston compressor L30PN-2,2-9RM příkon 2,2 kW, sací výkon 310 l/min, tlak 10 bar, vzdušník 9 l, napětí 230/50 V/Hz
Code: L30PN-2-2-9RMRelated products
Product detailed description
Mobile oil piston compressor L30PN-2,2-9RM
The Line series compressor in oil-lubricated design with direct connection of the electric motor to the L30PN compressor unit with a suction capacity of 310 l/min is designed for smaller professional applications with high demands on machine protection against damage. The compressor has the following standard equipment:
- automatic operation control by pressure switch
- the suction filter recessed in the machine housing reduces the risk of damage
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- protective panel for pressure gauges and pressure regulator
- 9 litre airbox with condensate release valve

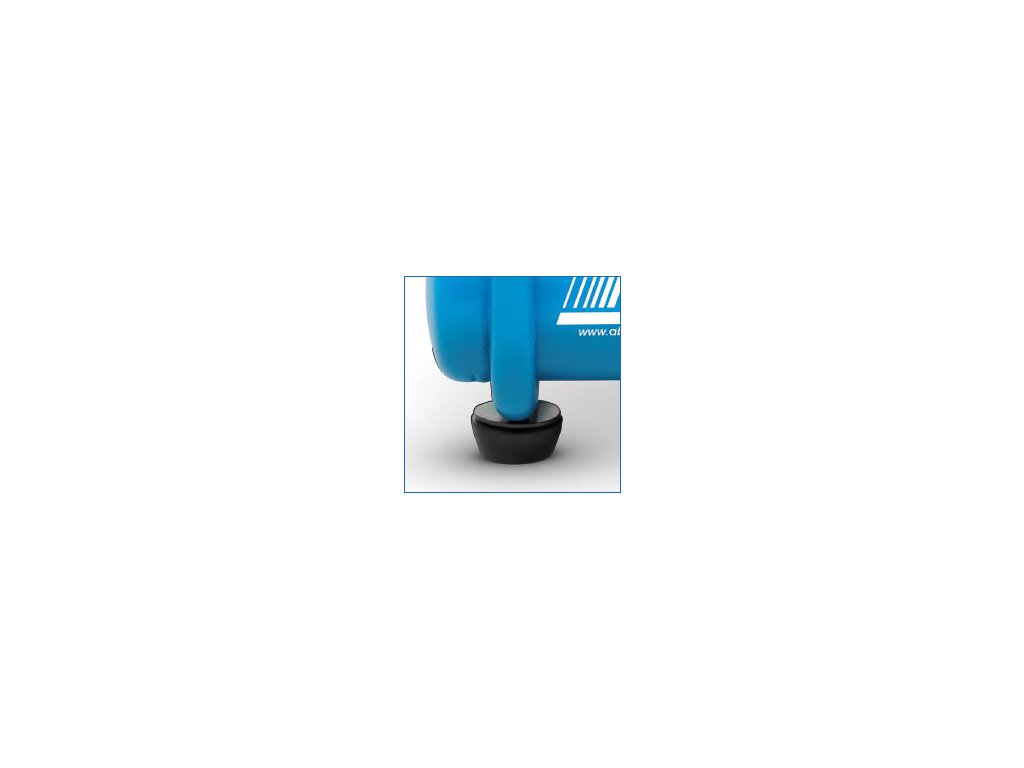

- rubber bases to reduce vibration transmission from the machine
- wheels for greater mobility
- folding handle reduces transport dimensions and facilitates movement of the machine
- protective tubular frame for increased protection against damage
- practical hooks for hanging cables and hoses

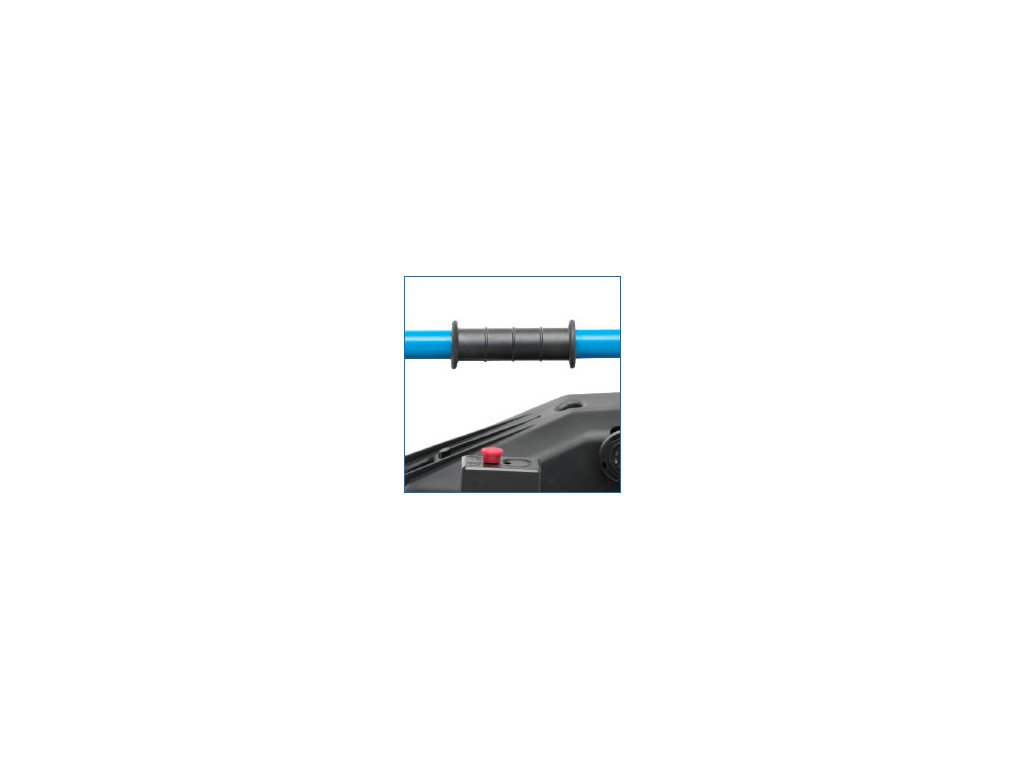

- rubberized handle handle for greater user comfort during transport
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Oil compressors L25P-L30P |
|---|---|
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 310 l/min |
| Displacement: | 186 l/min |
| Pressure vessel volume: | 9 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 490 x 520 x 560 mm |
| Weight: | 35 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
