Compact piston compressor L25P-1.8-10RM příkon 1,8 kW, sací výkon 270 l/min, tlak 10 bar, vzdušník 10 l, napětí 230/50 V/Hz
Code: L25P-1-8-10RMRelated products
Product detailed description
Mobile oil compressor L25P-1,8-10RM
The Line series compressor in oil-lubricated design with direct connection of the electric motor to the L20N compressor unit with a suction capacity of 220 l/min is designed for smaller professional applications. The compressor has the following standard equipment:
- automatic operation control by pressure switch
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 6 litre airbox with condensate release valve

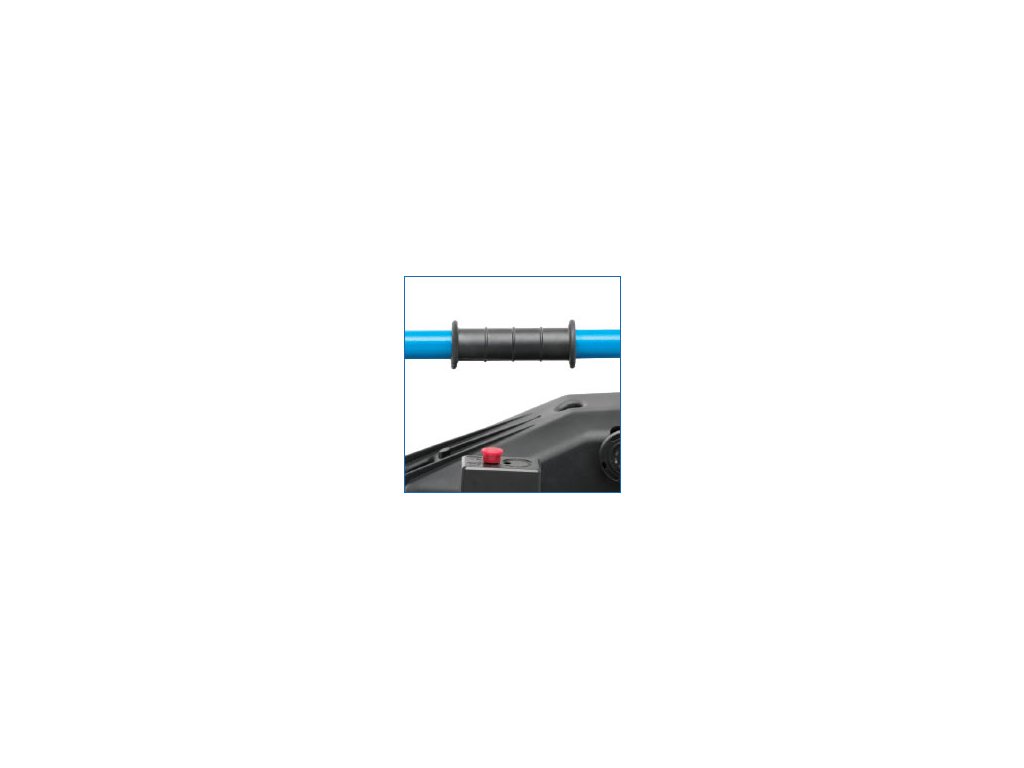

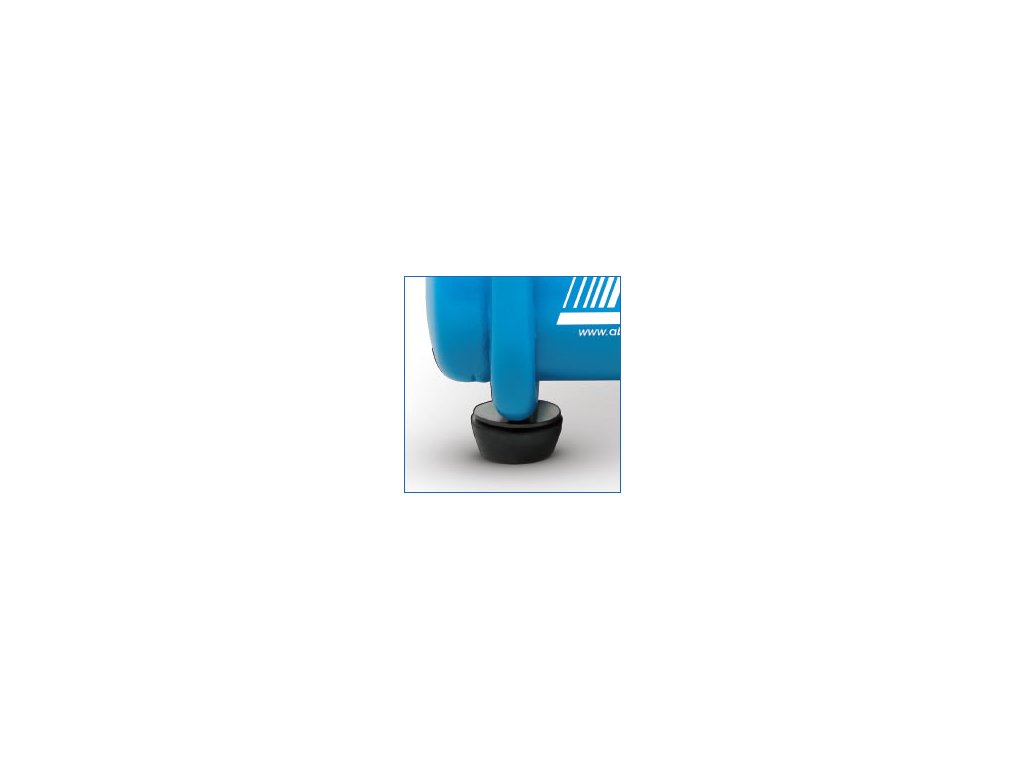

- handle and wheels for easy handling of the machine
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Oil compressors L25P-L30P |
|---|---|
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 270 l/min |
| Displacement: | 162 l/min |
| Pressure vessel volume: | 10 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.8 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Dimensions: | 420 x 330 x 635 mm |
| Weight: | 24 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
