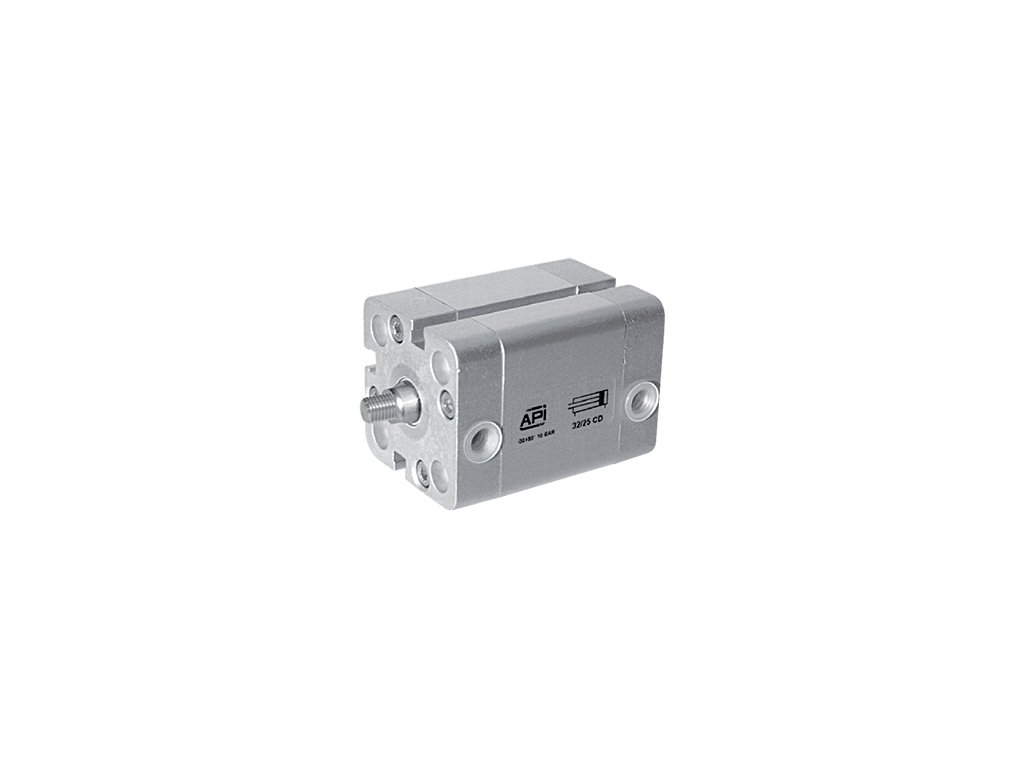

    Compact single-acting cylinders CSM 80mm

    Code: 80/10CSM 80/15CSM 80/20CSM 80/25CSM 80/30CSM 80/40CSM 80/50CSM Choose variant
    Not rated
    Brand: API
    5 815 Kč 5 902 Kč 5 988 Kč 6 074 Kč 6 155 Kč 7 511 Kč 7 684 Kč from 5 815 Kč –5 % –5 % –4 % –5 % –5 % –4 % –5 % up to –5 %
    Compact single-acting cylinders CSM 80mm
    5 815 Kč 5 902 Kč 5 988 Kč 6 074 Kč 6 155 Kč 7 511 Kč 7 684 Kč from 5 815 Kč –5 % –5 % –4 % –5 % –5 % –4 % –5 % up to –5 % 5 524 Kč / pcs 5 607 Kč / pcs 5 689 Kč / pcs 5 770 Kč / pcs 5 847 Kč / pcs 7 136 Kč / pcs 7 300 Kč / pcs from 5 524 Kč / pcs 4 565 Kč excl. VAT 4 634 Kč excl. VAT 4 702 Kč excl. VAT 4 769 Kč excl. VAT 4 832 Kč excl. VAT 5 898 Kč excl. VAT 6 033 Kč excl. VAT from 4 565 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 Choose variant
    Delivery offer
    CSM single-acting cylinders with 80 mm diameter and magnet with external thread on the piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Single-acting cylinders CSM 80 mm with magnet

    • diameter 80 mm
    • strokes 10, 15, 20, 25, 30, 40, 50 mm
    • with external thread on piston rod
    • connection by 1/8" thread
    • pressure 2 - 10 bar
    • made of aluminium and stainless steel AISI303

    Additional parameters

    Category: Compact cylinders CS and CD according to UNITOP
    Version: Single acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Magnet: with a magnet
    Piston rod material: Stainless steel AISI303
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 80 mm
    Temperature: -30/+80°C
    Seals: PU
    Cylinder thrust: 2900 N
    Cylinder type: Compact
    Stroke selection: 10, 15, 20, 25, 30, 40, 50 mm
    Connecting rod thread: M16 x 1.5
    Minimální tlak: 2 bar
