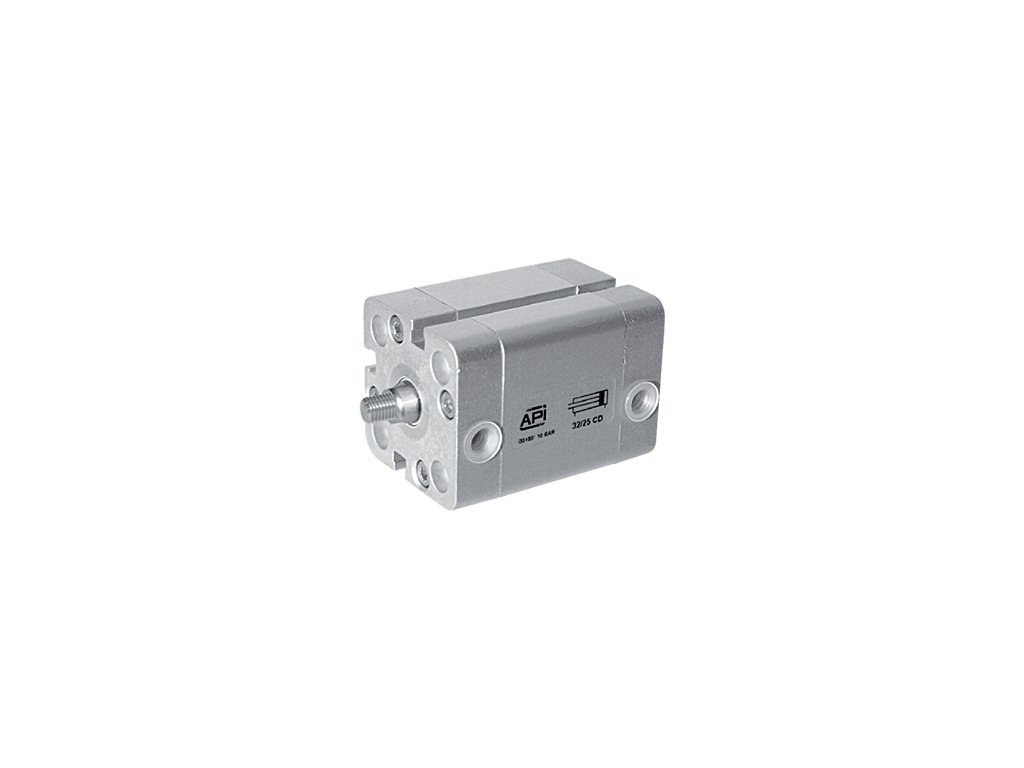

Compact single-acting cylinders CSM 40mm

Code: 40/5CSM 40/10CSM 40/15CSM 40/20CSM 40/25CSM 40/30CSM 40/40CSM 40/50CSM Choose variant
2 862 Kč 2 900 Kč 2 932 Kč 2 979 Kč 3 012 Kč 3 049 Kč 3 708 Kč 3 788 Kč from 2 862 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % up to –5 %
Compact single-acting cylinders CSM 40mm
2 862 Kč 2 900 Kč 2 932 Kč 2 979 Kč 3 012 Kč 3 049 Kč 3 708 Kč 3 788 Kč from 2 862 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % up to –5 % 2 719 Kč / pcs 2 755 Kč / pcs 2 785 Kč / pcs 2 830 Kč / pcs 2 861 Kč / pcs 2 896 Kč / pcs 3 523 Kč / pcs 3 599 Kč / pcs from 2 719 Kč / pcs 2 247 Kč excl. VAT 2 277 Kč excl. VAT 2 302 Kč excl. VAT 2 339 Kč excl. VAT 2 364 Kč excl. VAT 2 393 Kč excl. VAT 2 912 Kč excl. VAT 2 974 Kč excl. VAT from 2 247 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 Choose variant
CSM single-acting cylinders with 40 mm diameter magnet with external thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Product detailed description

Single-acting cylinders CSM 40 mm with magnet

  • diameter 40 mm
  • strokes 5, 10, 15, 20, 25, 30, 40, 50 mm
  • with external thread on piston rod
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 40 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 700 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M10 x 1.25
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.
