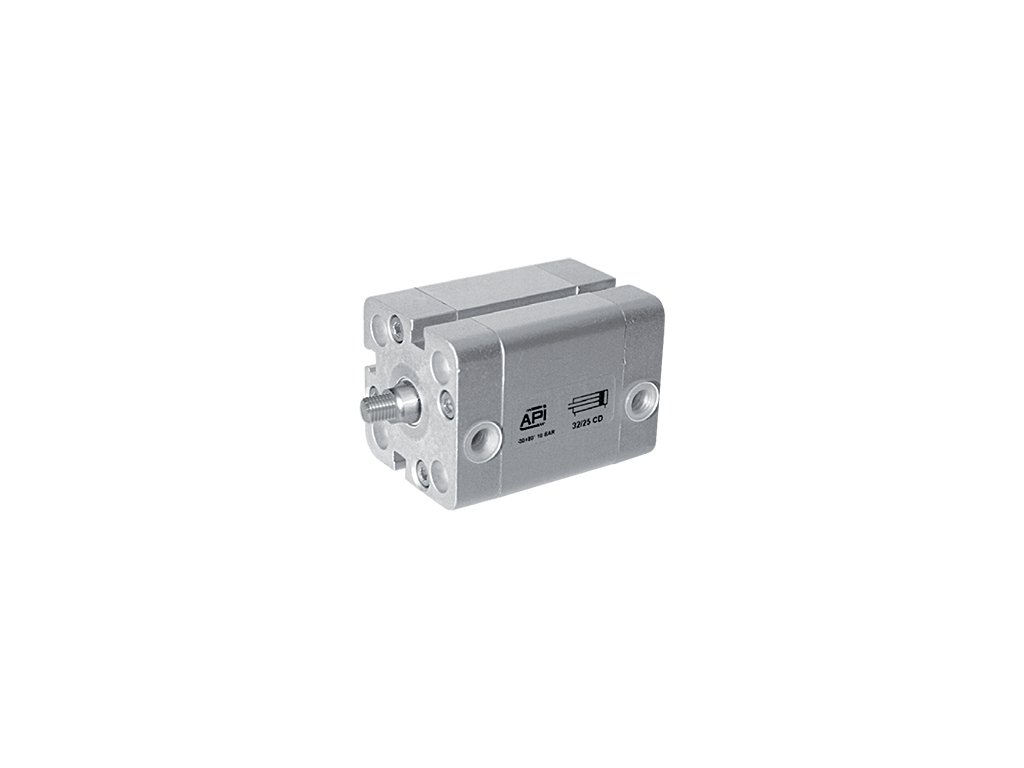

Compact single-acting cylinders CSM 25mm

Code: 25/5CSM 25/10CSM 25/15CSM 25/20CSM 25/25CSM 25/30CSM 25/40CSM 25/50CSM Choose variant
2 178 Kč 2 205 Kč 2 237 Kč 2 264 Kč 2 286 Kč 2 318 Kč 2 838 Kč 2 896 Kč from 2 178 Kč –5 % –4 % –5 % –5 % –4 % –5 % –5 % –4 % up to –5 %
Compact single-acting cylinders CSM 25mm
2 178 Kč 2 205 Kč 2 237 Kč 2 264 Kč 2 286 Kč 2 318 Kč 2 838 Kč 2 896 Kč from 2 178 Kč –5 % –4 % –5 % –5 % –4 % –5 % –5 % –4 % up to –5 % 2 069 Kč / pcs 2 095 Kč / pcs 2 125 Kč / pcs 2 150 Kč / pcs 2 172 Kč / pcs 2 202 Kč / pcs 2 696 Kč / pcs 2 752 Kč / pcs from 2 069 Kč / pcs 1 710 Kč excl. VAT 1 731 Kč excl. VAT 1 756 Kč excl. VAT 1 777 Kč excl. VAT 1 795 Kč excl. VAT 1 820 Kč excl. VAT 2 228 Kč excl. VAT 2 274 Kč excl. VAT from 1 710 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer
CSM single-acting cylinders of 25 mm diameter with magnet with external thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Single-acting cylinders CSM 25 mm with magnet

  • diameter 25 mm
  • strokes 5, 10, 15, 20, 25, 30, 40, 50 mm
  • with external thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 25 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 270 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M10 x 1.25
Minimální tlak: 2 bar
