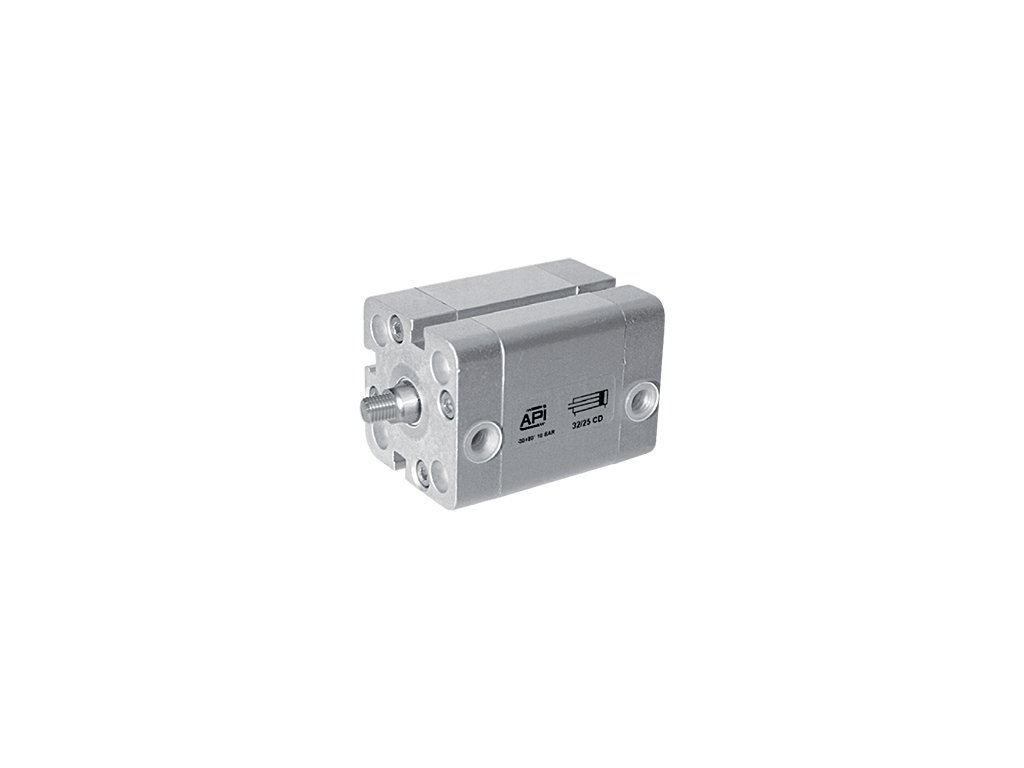

Compact single-acting cylinders CSM 20mm

Code: 20/5CSM 20/10CSM 20/15CSM 20/20CSM 20/25CSM 20/30CSM 20/40CSM 20/50CSM Choose variant
1 962 Kč 1 989 Kč 2 010 Kč 2 037 Kč 2 058 Kč 2 081 Kč 2 497 Kč 2 546 Kč from 1 962 Kč –4 % –4 % –4 % –5 % –4 % –5 % –5 % –4 % up to –5 %
Compact single-acting cylinders CSM 20mm
1 962 Kč 1 989 Kč 2 010 Kč 2 037 Kč 2 058 Kč 2 081 Kč 2 497 Kč 2 546 Kč from 1 962 Kč –4 % –4 % –4 % –5 % –4 % –5 % –5 % –4 % up to –5 % 1 864 Kč / pcs 1 890 Kč / pcs 1 910 Kč / pcs 1 935 Kč / pcs 1 956 Kč / pcs 1 977 Kč / pcs 2 372 Kč / pcs 2 419 Kč / pcs from 1 864 Kč / pcs 1 540 Kč excl. VAT 1 562 Kč excl. VAT 1 579 Kč excl. VAT 1 599 Kč excl. VAT 1 617 Kč excl. VAT 1 634 Kč excl. VAT 1 960 Kč excl. VAT 1 999 Kč excl. VAT from 1 540 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer
CSM single-acting cylinders of 20 mm diameter with a magnet with external thread on the piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Single-acting cylinders CSM 20 mm with magnet

  • diameter 20 mm
  • strokes 5, 10, 15, 20, 25, 30, 40, 50 mm
  • with external thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 20 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 177 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M10 x 1.5
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
