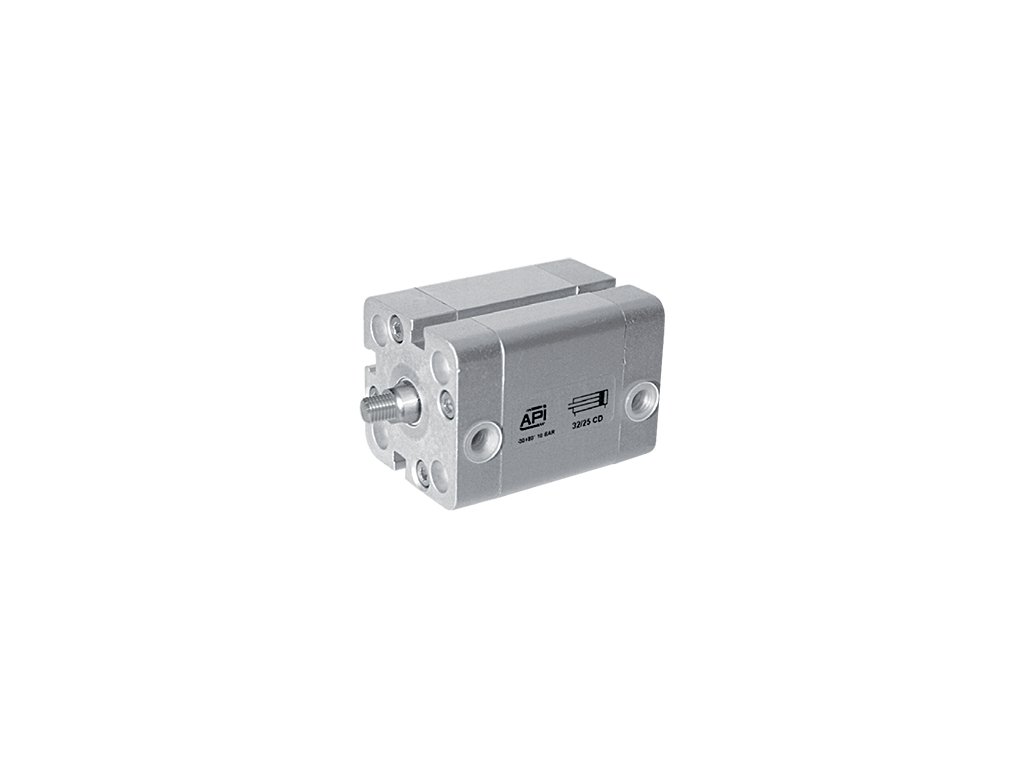

Compact single-acting cylinders CSM 16mm

Code: 16/5CSM 16/10CSM 16/15CSM 16/20CSM 16/25CSM 16/30CSM 16/40CSM 16/50CSM Choose variant
1 830 Kč 1 852 Kč 1 868 Kč 1 884 Kč 1 899 Kč 1 922 Kč 2 261 Kč 2 304 Kč from 1 830 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
Compact single-acting cylinders CSM 16mm
1 830 Kč 1 852 Kč 1 868 Kč 1 884 Kč 1 899 Kč 1 922 Kč 2 261 Kč 2 304 Kč from 1 830 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 1 739 Kč / pcs 1 759 Kč / pcs 1 774 Kč / pcs 1 789 Kč / pcs 1 804 Kč / pcs 1 825 Kč / pcs 2 148 Kč / pcs 2 188 Kč / pcs from 1 739 Kč / pcs 1 437 Kč excl. VAT 1 454 Kč excl. VAT 1 466 Kč excl. VAT 1 479 Kč excl. VAT 1 491 Kč excl. VAT 1 508 Kč excl. VAT 1 775 Kč excl. VAT 1 808 Kč excl. VAT from 1 437 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 Choose variant
CSM single-acting cylinders 16 mm diameter with magnet with external thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Product detailed description

Single-acting cylinders CSM 16 mm with magnet

  • diameter 16 mm
  • strokes 5, 10, 15, 20, 25, 30, 40, 50 mm
  • with external thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 16 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 110 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M8
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
