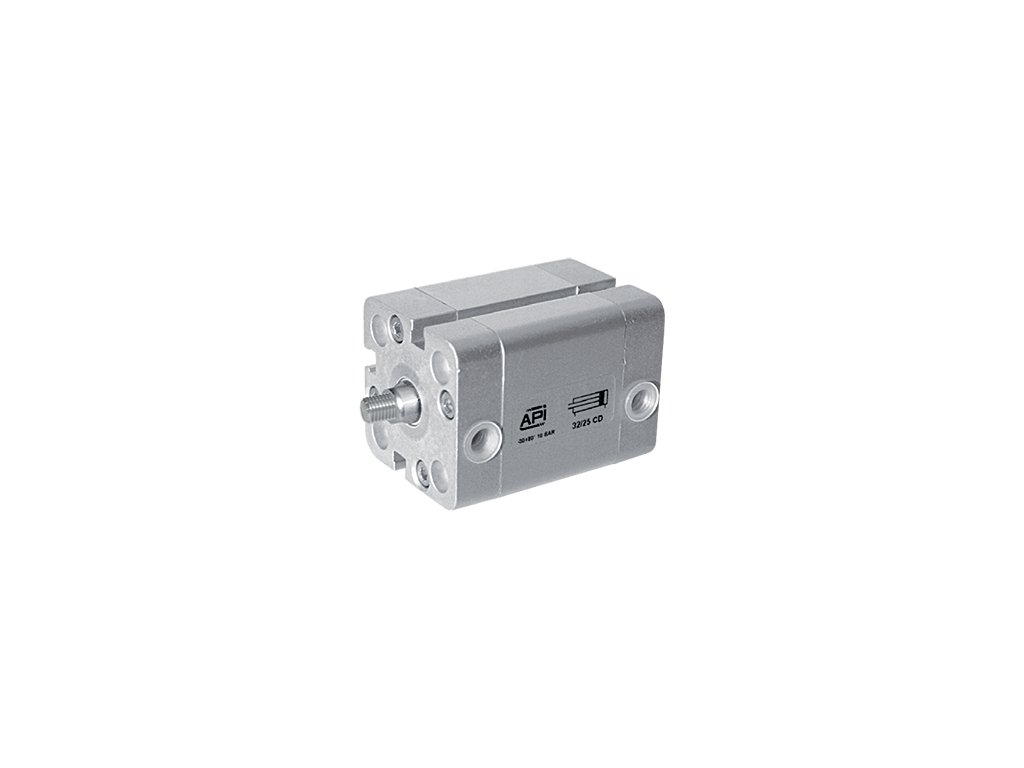

Compact single-acting cylinders CSM 100mm

Code: 100/10CSM 100/15CSM 100/20CSM 100/25CSM 100/30CSM 100/40CSM 100/50CSM Choose variant
7 535 Kč 7 641 Kč 7 752 Kč 7 853 Kč 7 965 Kč 9 694 Kč 9 913 Kč from 7 535 Kč –5 % –5 % –4 % –4 % –5 % –5 % –5 % up to –5 %
Compact single-acting cylinders CSM 100mm
7 535 Kč 7 641 Kč 7 752 Kč 7 853 Kč 7 965 Kč 9 694 Kč 9 913 Kč from 7 535 Kč –5 % –5 % –4 % –4 % –5 % –5 % –5 % up to –5 % 7 158 Kč / pcs 7 259 Kč / pcs 7 365 Kč / pcs 7 461 Kč / pcs 7 567 Kč / pcs 9 209 Kč / pcs 9 417 Kč / pcs from 7 158 Kč / pcs 5 916 Kč excl. VAT 5 999 Kč excl. VAT 6 087 Kč excl. VAT 6 166 Kč excl. VAT 6 254 Kč excl. VAT 7 611 Kč excl. VAT 7 783 Kč excl. VAT from 5 916 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 Choose variant
CSM single-acting cylinders with 100 mm diameter magnet with external thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Product detailed description

Single-acting cylinders CSM 100 mm with magnet

  • diameter 100 mm
  • strokes 10, 15, 20, 25, 30, 40, 50 mm
  • with external thread on piston rod
  • connection via 1/4" thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/4"
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 100 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 4510 N
Cylinder type: Compact
Stroke selection: 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M20 x 1.5
Minimální tlak: 2 bar
