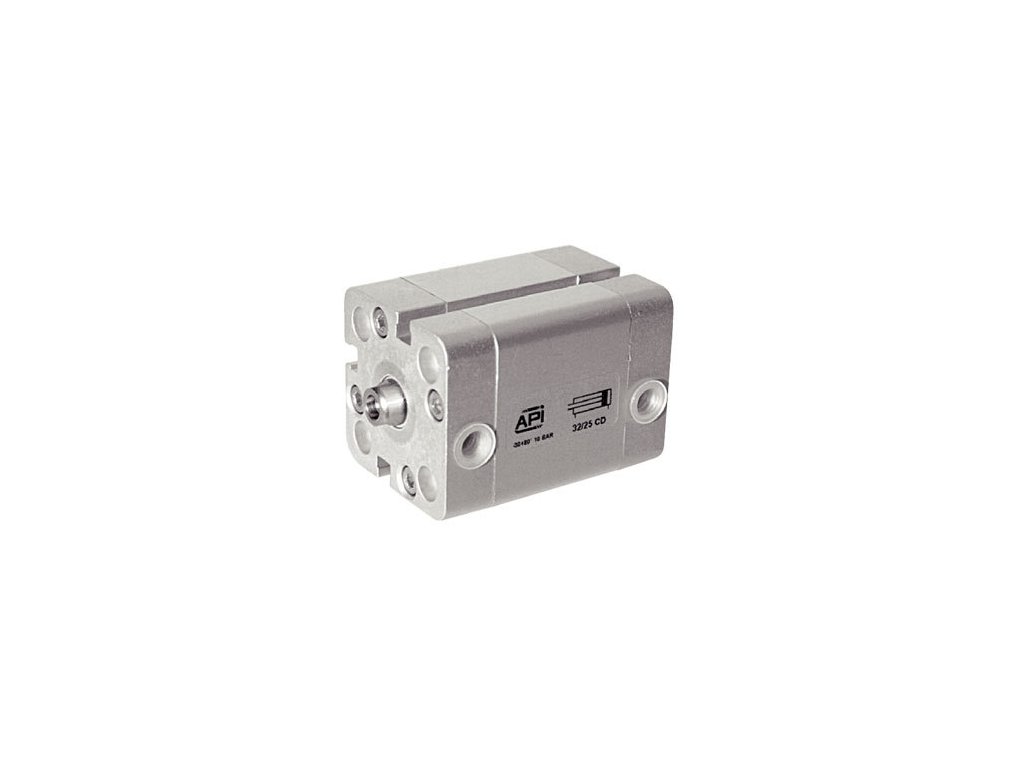

Compact single-acting cylinders CS 40mm

Code: 40/5CS 40/10CS 40/15CS 40/20CS 40/25CS 40/30CS 40/40CS 40/50CS Choose variant
2 761 Kč 2 799 Kč 2 836 Kč 2 873 Kč 2 911 Kč 2 948 Kč 3 586 Kč 3 661 Kč from 2 761 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % up to –5 %
Compact single-acting cylinders CS 40mm
2 761 Kč 2 799 Kč 2 836 Kč 2 873 Kč 2 911 Kč 2 948 Kč 3 586 Kč 3 661 Kč from 2 761 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % up to –5 % 2 623 Kč / pcs 2 659 Kč / pcs 2 694 Kč / pcs 2 729 Kč / pcs 2 765 Kč / pcs 2 800 Kč / pcs 3 407 Kč / pcs 3 478 Kč / pcs from 2 623 Kč / pcs 2 168 Kč excl. VAT 2 198 Kč excl. VAT 2 226 Kč excl. VAT 2 255 Kč excl. VAT 2 285 Kč excl. VAT 2 314 Kč excl. VAT 2 816 Kč excl. VAT 2 874 Kč excl. VAT from 2 168 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant
Single-acting cylinders CS 40 mm diameter with magnet with internal thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Product detailed description

Single-acting cylinders CS 40 mm with magnet

  • diameter 40 mm
  • strokes 5, 10, 15, 20, 25, 30, 40, 50 mm
  • with internal thread on piston rod
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 40 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 700 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M6
Minimální tlak: 2 bar
