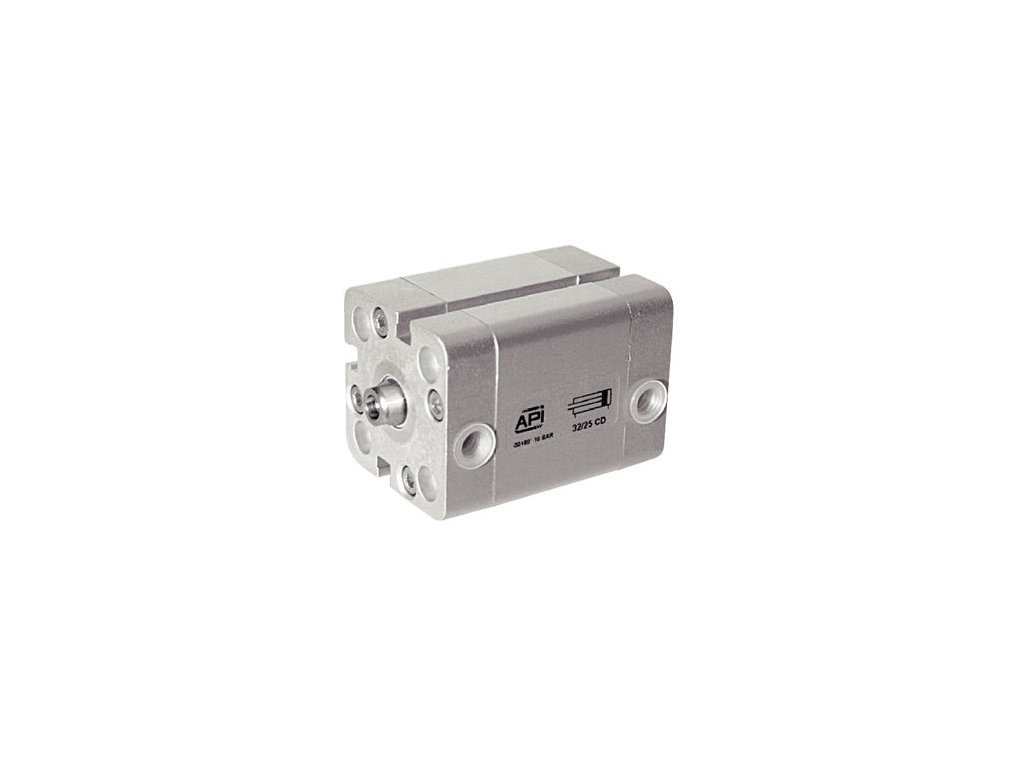

Compact single-acting cylinders CS 16mm

Code: 16/5CS 16/10CS 16/15CS 16/20CS 16/25CS 16/30CS 16/40CS 16/50CS Choose variant
1 794 Kč 1 816 Kč 1 832 Kč 1 848 Kč 1 864 Kč 1 885 Kč 2 226 Kč 2 259 Kč from 1 794 Kč –4 % –5 % –5 % –5 % –4 % –4 % –4 % –5 % up to –5 %
Compact single-acting cylinders CS 16mm
1 794 Kč 1 816 Kč 1 832 Kč 1 848 Kč 1 864 Kč 1 885 Kč 2 226 Kč 2 259 Kč from 1 794 Kč –4 % –5 % –5 % –5 % –4 % –4 % –4 % –5 % up to –5 % 1 705 Kč / pcs 1 725 Kč / pcs 1 740 Kč / pcs 1 755 Kč / pcs 1 771 Kč / pcs 1 791 Kč / pcs 2 115 Kč / pcs 2 146 Kč / pcs from 1 705 Kč / pcs 1 409 Kč excl. VAT 1 426 Kč excl. VAT 1 438 Kč excl. VAT 1 450 Kč excl. VAT 1 464 Kč excl. VAT 1 480 Kč excl. VAT 1 748 Kč excl. VAT 1 774 Kč excl. VAT from 1 409 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer
Single-acting cylinders CS 16 mm diameter with magnet with internal thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Single-acting cylinders CS 16 mm with magnet

  • diameter 16 mm
  • strokes 5, 10, 15, 20, 25, 30, 40, 50 mm
  • with internal thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Single acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 16 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 110 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M4
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
