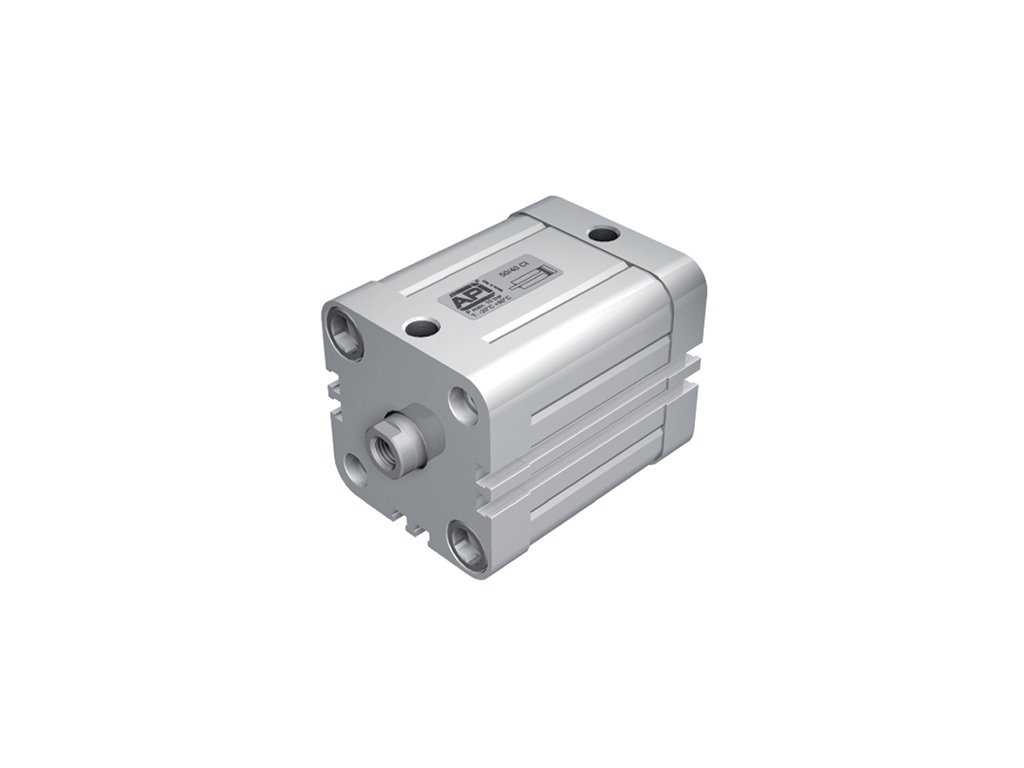

Compact single-acting cylinders CIS 80mm

Code: 80/15CIS 80/20CIS 80/25CIS Choose variant
4 199 Kč 4 257 Kč 4 319 Kč from 4 199 Kč –5 %
Compact single-acting cylinders CIS 80mm
4 199 Kč 4 257 Kč 4 319 Kč from 4 199 Kč –5 % 3 989 Kč / pcs 4 044 Kč / pcs 4 103 Kč / pcs from 3 989 Kč / pcs 3 297 Kč excl. VAT 3 342 Kč excl. VAT 3 391 Kč excl. VAT from 3 297 Kč excl. VAT
up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.11.2024 11.11.2024 11.11.2024 Choose variant

Single-acting CIS cylinders of 80 mm diameter with a magnet with internal thread on the piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

Detailed information

Product detailed description

Single acting cylinders CIS 80 mm with magnet

  • diameter 80 mm
  • strokes 5, 10, 15, 20, 25 mm
  • with internal thread on piston rod
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact cylinders according to ISO 21287
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 80 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 2710 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25 mm
Connecting rod thread: M12
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
