Compact single-acting cylinders CIS 50mm

Code: 50/5CIS 50/10CIS 50/15CIS 50/20CIS 50/25CIS Choose variant
2 414 Kč 2 450 Kč 2 476 Kč 2 516 Kč 2 543 Kč from 2 414 Kč –5 % –5 % –5 % –5 % –4 % up to –5 %
Compact single-acting cylinders CIS 50mm
2 414 Kč 2 450 Kč 2 476 Kč 2 516 Kč 2 543 Kč from 2 414 Kč –5 % –5 % –5 % –5 % –4 % up to –5 % 2 293 Kč / pcs 2 327 Kč / pcs 2 352 Kč / pcs 2 390 Kč / pcs 2 416 Kč / pcs from 2 293 Kč / pcs 1 895 Kč excl. VAT 1 923 Kč excl. VAT 1 944 Kč excl. VAT 1 975 Kč excl. VAT 1 997 Kč excl. VAT from 1 895 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 Choose variant

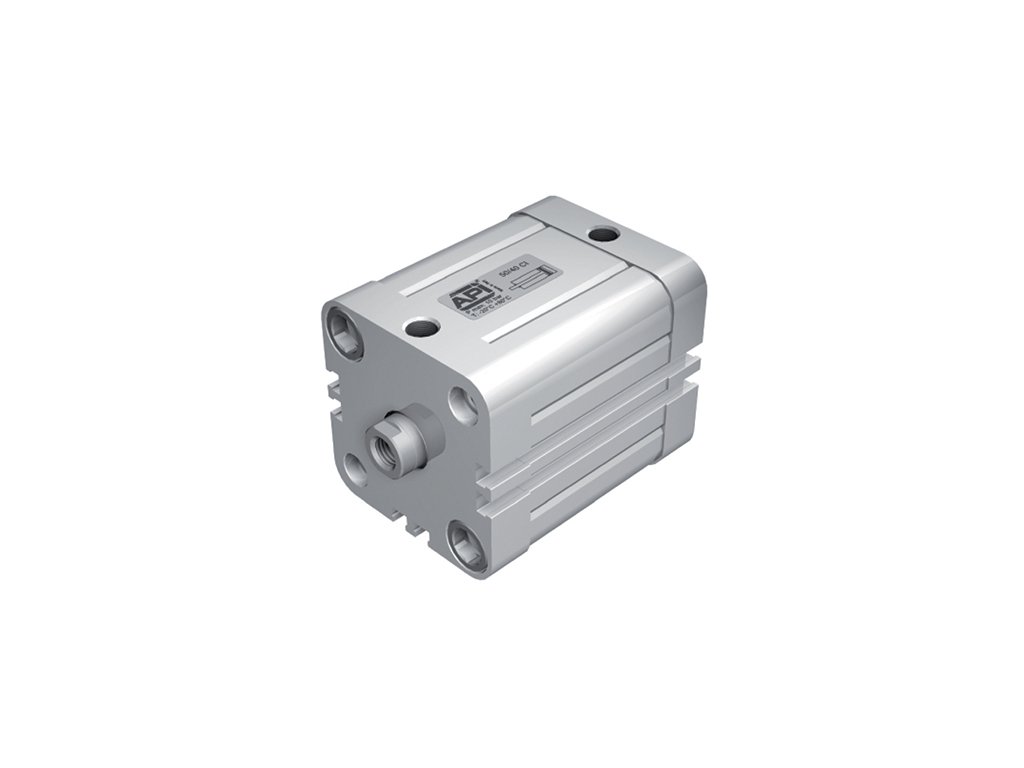

Single acting CIS cylinders with a diameter of 50 mm with a magnet with internal thread on the piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

Detailed information

Product detailed description

Single acting cylinders CIS 50 mm with magnet

  • diameter 50 mm
  • strokes 5, 10, 15, 20, 25 mm
  • with internal thread on piston rod
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact cylinders according to ISO 21287
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 50 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 1060 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25 mm
Connecting rod thread: M10
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
