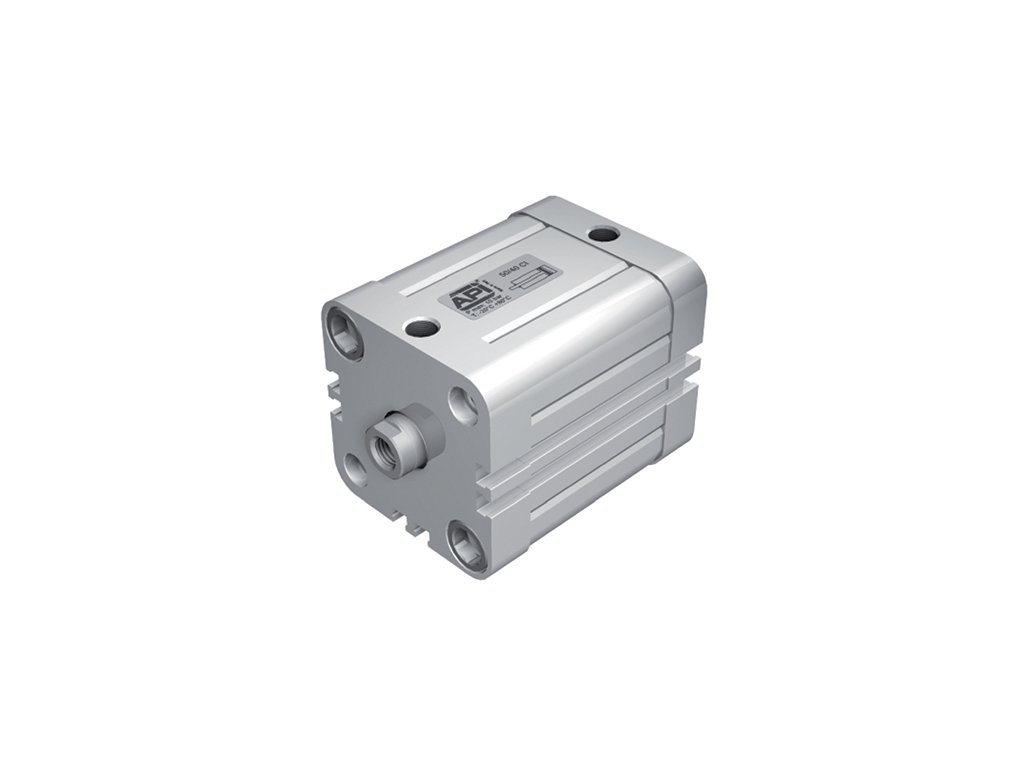

Compact single-acting cylinders CIS 40mm

Code: 40/5CIS 40/10CIS 40/15CIS 40/20CIS 40/25CIS Choose variant
2 075 Kč 2 111 Kč 2 133 Kč 2 159 Kč 2 187 Kč from 2 075 Kč –5 %
Compact single-acting cylinders CIS 40mm
2 075 Kč 2 111 Kč 2 133 Kč 2 159 Kč 2 187 Kč from 2 075 Kč –5 % 1 971 Kč / pcs 2 005 Kč / pcs 2 026 Kč / pcs 2 051 Kč / pcs 2 077 Kč / pcs from 1 971 Kč / pcs 1 629 Kč excl. VAT 1 657 Kč excl. VAT 1 674 Kč excl. VAT 1 695 Kč excl. VAT 1 717 Kč excl. VAT from 1 629 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 Choose variant
Single-acting CIS cylinders with 40 mm diameter with magnetems female thread on piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

Detailed information

Product detailed description

Single acting cylinders CIS 40 mm with magnet

  • diameter 40 mm
  • strokes 5, 10, 15, 20, 25 mm
  • with internal thread on piston rod
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact cylinders according to ISO 21287
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 40 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 679 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25 mm
Connecting rod thread: M8
Minimální tlak: 2 bar
