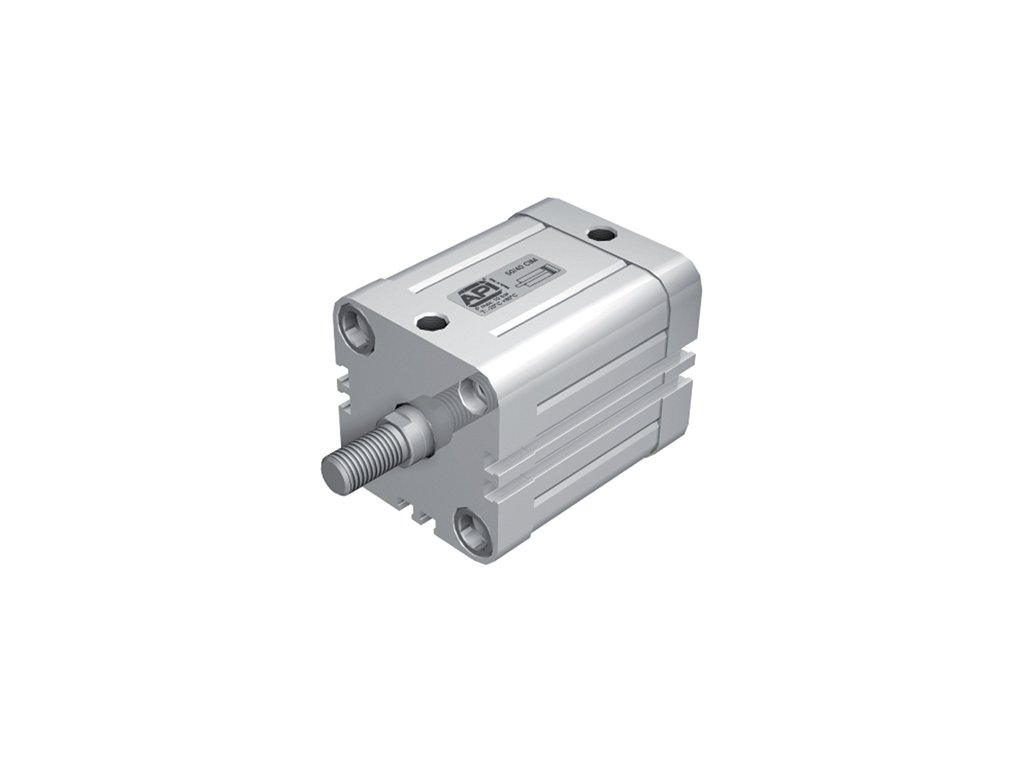

Compact CIMS 50mm single-acting cylinders

Code: 50/5CIMS 50/10CIMS 50/15CIMS 50/20CIMS 50/25CIMS Choose variant
2 809 Kč 2 840 Kč 2 871 Kč 2 901 Kč 2 932 Kč from 2 809 Kč –99 %
Compact CIMS 50mm single-acting cylinders
2 809 Kč 2 840 Kč 2 871 Kč 2 901 Kč 2 932 Kč from 2 809 Kč –99 % 1 Kč / pcs 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.12.2024 11.12.2024 11.12.2024 11.12.2024 11.12.2024 Choose variant
CIMS single-acting cylinders 50 mm diameter with a magnet with external thread on the piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

Detailed information

Product detailed description

CIMS 50 mm single-acting cylinders with magnet

  • diameter 50 mm
  • strokes 5, 10, 15, 20, 25 mm
  • with external thread on piston rod
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact cylinders according to ISO 21287
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 50 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 1060 N
Cylinder type: Compact
Stroke selection: 5, 10, 15, 20, 25 mm
Connecting rod thread: M12 x 1.25
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
