    Home / Valves and automation / Cylinders and accessories; single-acting and double-acting / Compact cylinders / Compact CIN cylinders; according to ISO 21287 / Compact double-acting cylinders CIN 20mm

    Compact double-acting cylinders CIN 20mm

    Code: 20/5CIN 20/10CIN 20/15CIN 20/20CIN 20/25CIN 20/30CIN 20/40CIN 20/50CIN 20/60CIN 20/70CIN 20/80CIN 20/100CIN 20/125CIN 20/150CIN 20/160CIN 20/200CIN Choose variant
    Not rated
    Brand: A.P.I.
    2 378 Kč 2 405 Kč 2 427 Kč 2 446 Kč 2 468 Kč 2 494 Kč 2 534 Kč 2 579 Kč 2 623 Kč 2 659 Kč 2 709 Kč 2 780 Kč 2 887 Kč 3 034 Kč 3 034 Kč 3 207 Kč from 2 378 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % up to –5 %
    Compact double-acting cylinders CIN 20mm
    2 378 Kč 2 405 Kč 2 427 Kč 2 446 Kč 2 468 Kč 2 494 Kč 2 534 Kč 2 579 Kč 2 623 Kč 2 659 Kč 2 709 Kč 2 780 Kč 2 887 Kč 3 034 Kč 3 034 Kč 3 207 Kč from 2 378 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % up to –5 % 2 259 Kč / pcs 2 284 Kč / pcs 2 305 Kč / pcs 2 323 Kč / pcs 2 344 Kč / pcs 2 369 Kč / pcs 2 407 Kč / pcs 2 450 Kč / pcs 2 492 Kč / pcs 2 526 Kč / pcs 2 573 Kč / pcs 2 641 Kč / pcs 2 742 Kč / pcs 2 882 Kč / pcs 2 882 Kč / pcs 3 047 Kč / pcs from 2 259 Kč / pcs 1 867 Kč excl. VAT 1 888 Kč excl. VAT 1 905 Kč excl. VAT 1 920 Kč excl. VAT 1 937 Kč excl. VAT 1 958 Kč excl. VAT 1 989 Kč excl. VAT 2 025 Kč excl. VAT 2 060 Kč excl. VAT 2 088 Kč excl. VAT 2 126 Kč excl. VAT 2 183 Kč excl. VAT 2 266 Kč excl. VAT 2 382 Kč excl. VAT 2 382 Kč excl. VAT 2 518 Kč excl. VAT from 1 867 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant

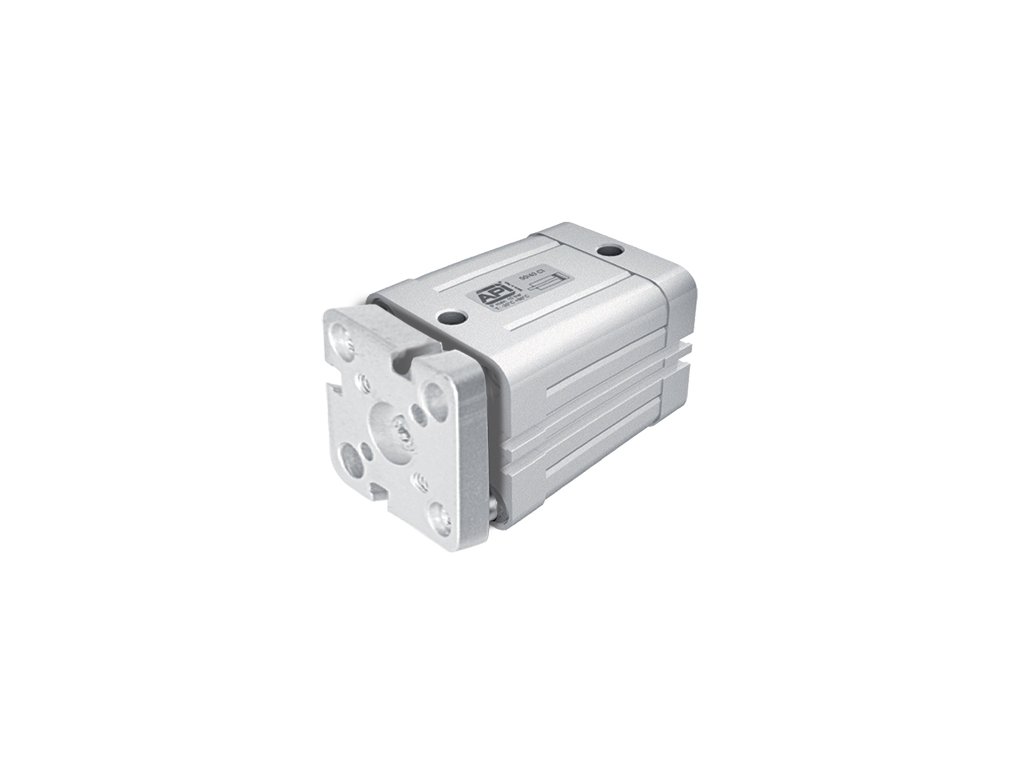

    CIN double acting cylinders with magnet, diameter 20 mm. Complies with ISO 21287 standards. In profile design with grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

    Detailed information

    Product detailed description

    Double acting cylinders CIN 20 mm with magnet

    • diameter 20 mm
    • strokes 1 - 200 mm
    • connection using M5 thread
    • pressure 1 - 10 bar
    • made of aluminium and C45 steel

    Additional parameters

    Category: Compact CIN cylinders according to ISO 21287
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: M5
    Magnet: with a magnet
    Piston rod material: C45 steel
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 20 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 170 N
    Cylinder type: Compact
    Stroke selection: 1 - 200
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

    The range of products offered by API is brought to you by our company Air Compressors here.
