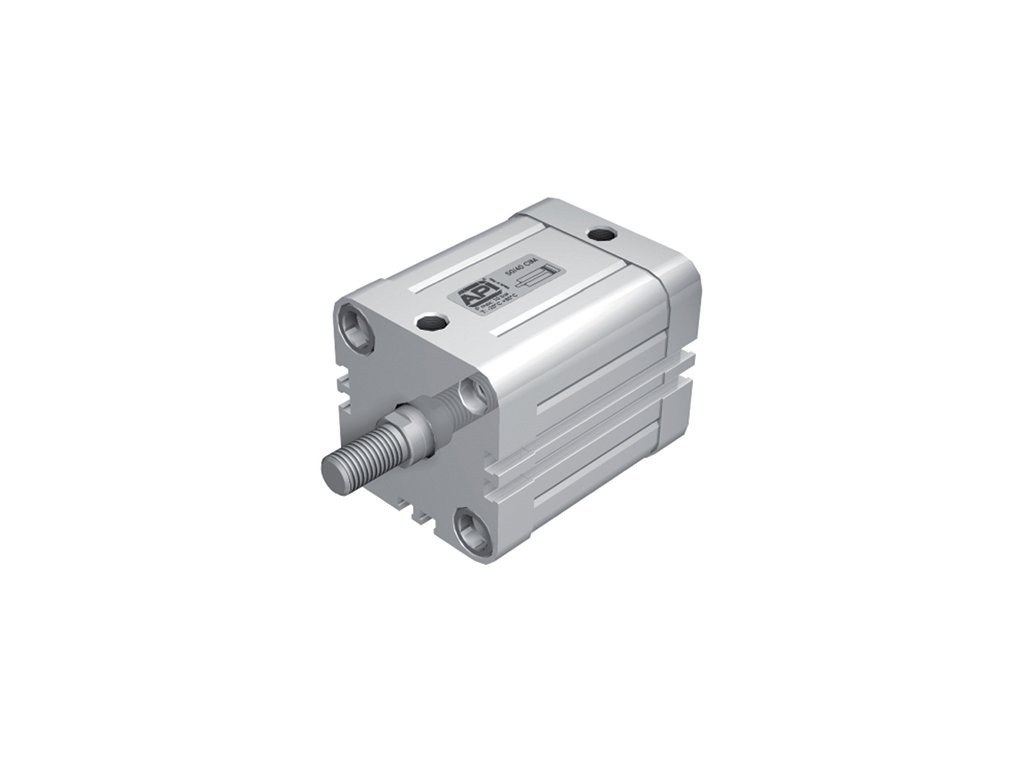

    Compact double-acting cylinders CIM 80mm

    Code: 80/5CIM 80/10CIM 80/15CIM 80/20CIM 80/25CIM 80/30CIM 80/40CIM 80/50CIM 80/60CIM 80/70CIM 80/80CIM 80/100CIM 80/125CIM 80/150CIM 80/160CIM 80/200CIM 80/250CIM 80/300CIM 80/320CIM 80/350CIM 80/400CIM 80/450CIM 80/500CIM Choose variant
    Not rated
    Brand: A.P.I.
    4 287 Kč 4 350 Kč 4 414 Kč 4 477 Kč 4 540 Kč 4 604 Kč 4 730 Kč 4 858 Kč 4 980 Kč 5 112 Kč 5 239 Kč 5 379 Kč 5 687 Kč 6 118 Kč 6 118 Kč 6 621 Kč 7 237 Kč 7 858 Kč 8 479 Kč 8 479 Kč 9 099 Kč 9 720 Kč 10 341 Kč from 4 287 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
    Compact double-acting cylinders CIM 80mm
    4 287 Kč 4 350 Kč 4 414 Kč 4 477 Kč 4 540 Kč 4 604 Kč 4 730 Kč 4 858 Kč 4 980 Kč 5 112 Kč 5 239 Kč 5 379 Kč 5 687 Kč 6 118 Kč 6 118 Kč 6 621 Kč 7 237 Kč 7 858 Kč 8 479 Kč 8 479 Kč 9 099 Kč 9 720 Kč 10 341 Kč from 4 287 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 4 072 Kč / pcs 4 132 Kč / pcs 4 193 Kč / pcs 4 253 Kč / pcs 4 313 Kč / pcs 4 374 Kč / pcs 4 494 Kč / pcs 4 615 Kč / pcs 4 731 Kč / pcs 4 856 Kč / pcs 4 977 Kč / pcs 5 110 Kč / pcs 5 403 Kč / pcs 5 812 Kč / pcs 5 812 Kč / pcs 6 290 Kč / pcs 6 875 Kč / pcs 7 465 Kč / pcs 8 055 Kč / pcs 8 055 Kč / pcs 8 644 Kč / pcs 9 234 Kč / pcs 9 824 Kč / pcs from 4 072 Kč / pcs 3 365 Kč excl. VAT 3 415 Kč excl. VAT 3 465 Kč excl. VAT 3 515 Kč excl. VAT 3 564 Kč excl. VAT 3 615 Kč excl. VAT 3 714 Kč excl. VAT 3 814 Kč excl. VAT 3 910 Kč excl. VAT 4 013 Kč excl. VAT 4 113 Kč excl. VAT 4 223 Kč excl. VAT 4 465 Kč excl. VAT 4 803 Kč excl. VAT 4 803 Kč excl. VAT 5 198 Kč excl. VAT 5 682 Kč excl. VAT 6 169 Kč excl. VAT 6 657 Kč excl. VAT 6 657 Kč excl. VAT 7 144 Kč excl. VAT 7 631 Kč excl. VAT 8 119 Kč excl. VAT from 3 365 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer
    CIM double-acting cylinders with 80 mm diameter magnet with external thread on piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    CIM double acting cylinders 80 mm with magnet

    • diameter 80 mm
    • strokes 1 - 500 mm
    • with external thread on piston rod
    • connection by 1/8" thread
    • pressure 1 - 10 bar
    • made of aluminium and C45 steel

    Additional parameters

    Category: Compact cylinders according to ISO 21287
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Magnet: with a magnet
    Piston rod material: C45 steel
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 80 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 2710 N
    Cylinder type: Compact
    Stroke selection: 1 - 500 mm
    Connecting rod thread: M16 x 1.5
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Security check

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.
