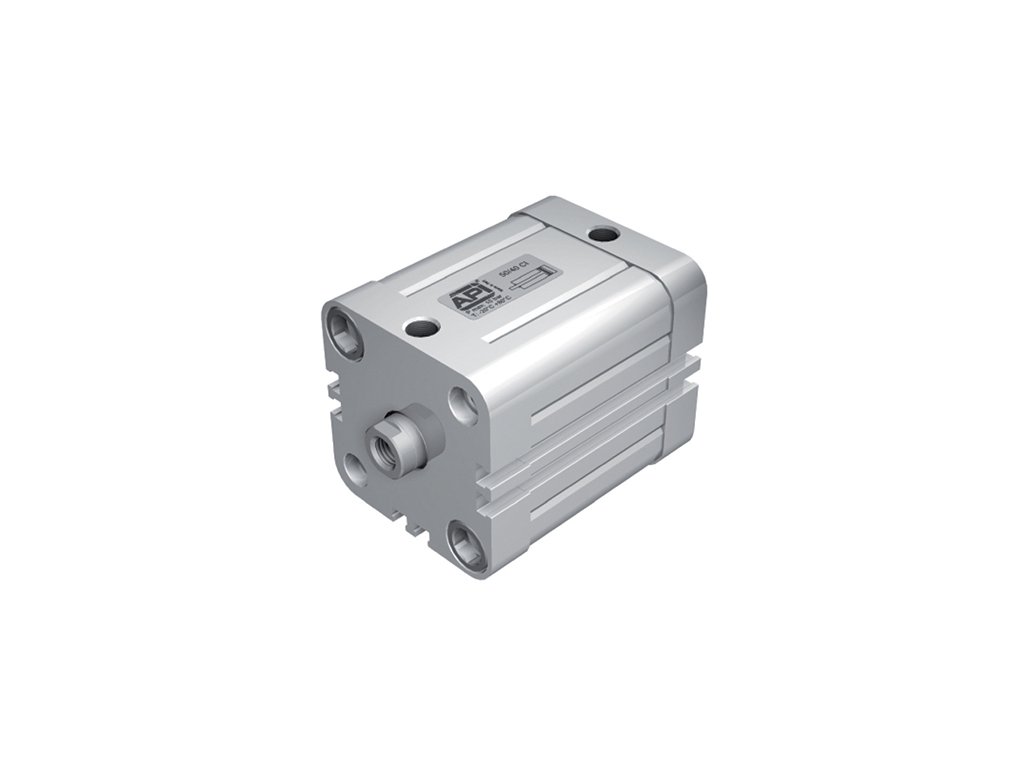

    Compact double acting cylinders CI 63mm

    Code: 63/5CI 63/10CI 63/15CI 63/20CI 63/25CI 63/30CI 63/40CI 63/50CI 63/60CI 63/70CI 63/80CI 63/100CI 63/125CI 63/150CI 63/160CI 63/200CI 63/250CI 63/300CI 63/320CI 63/350CI 63/400CI Choose variant
    Not rated
    Brand: A.P.I.
    2 972 Kč 3 012 Kč 3 056 Kč 3 092 Kč 3 132 Kč 3 177 Kč 3 257 Kč 3 338 Kč 3 422 Kč 3 498 Kč 3 578 Kč 3 677 Kč 3 864 Kč 4 141 Kč 4 141 Kč 4 462 Kč 4 859 Kč 5 256 Kč 5 653 Kč 5 653 Kč 6 055 Kč from 2 972 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % up to –5 %
    Compact double acting cylinders CI 63mm
    2 972 Kč 3 012 Kč 3 056 Kč 3 092 Kč 3 132 Kč 3 177 Kč 3 257 Kč 3 338 Kč 3 422 Kč 3 498 Kč 3 578 Kč 3 677 Kč 3 864 Kč 4 141 Kč 4 141 Kč 4 462 Kč 4 859 Kč 5 256 Kč 5 653 Kč 5 653 Kč 6 055 Kč from 2 972 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % up to –5 % 2 823 Kč / pcs 2 861 Kč / pcs 2 903 Kč / pcs 2 937 Kč / pcs 2 975 Kč / pcs 3 018 Kč / pcs 3 094 Kč / pcs 3 171 Kč / pcs 3 251 Kč / pcs 3 323 Kč / pcs 3 399 Kč / pcs 3 493 Kč / pcs 3 671 Kč / pcs 3 934 Kč / pcs 3 934 Kč / pcs 4 239 Kč / pcs 4 616 Kč / pcs 4 994 Kč / pcs 5 370 Kč / pcs 5 370 Kč / pcs 5 752 Kč / pcs from 2 823 Kč / pcs 2 333 Kč excl. VAT 2 364 Kč excl. VAT 2 399 Kč excl. VAT 2 427 Kč excl. VAT 2 459 Kč excl. VAT 2 494 Kč excl. VAT 2 557 Kč excl. VAT 2 621 Kč excl. VAT 2 687 Kč excl. VAT 2 746 Kč excl. VAT 2 809 Kč excl. VAT 2 887 Kč excl. VAT 3 034 Kč excl. VAT 3 251 Kč excl. VAT 3 251 Kč excl. VAT 3 503 Kč excl. VAT 3 815 Kč excl. VAT 4 127 Kč excl. VAT 4 438 Kč excl. VAT 4 438 Kč excl. VAT 4 754 Kč excl. VAT from 2 333 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant
    CI double-acting cylinders with 63 mm diameter with internally threaded magnet on piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

    Detailed information

    Product detailed description

    Double acting cylinders CI 63 mm with magnet

    • diameter 63 mm
    • strokes 1 - 400 mm
    • with internal thread on piston rod
    • connection by 1/8" thread
    • pressure 1 - 10 bar
    • made of aluminium and C45 steel

    Additional parameters

    Category: Compact cylinders according to ISO 21287
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Magnet: with a magnet
    Piston rod material: C45 steel
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 63 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 1680 N
    Cylinder type: Compact
    Stroke selection: 1 - 400 mm
    Connecting rod thread: M10
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

    The range of products offered by API is brought to you by our company Air Compressors here.
