    Compact double acting cylinders CI 32mm

    Code: 32/5CI 32/10CI 32/15CI 32/20CI 32/25CI 32/30CI 32/40CI 32/50CI 32/60CI 32/70CI 32/80CI 32/100CI 32/125CI 32/150CI 32/160CI 32/200CI 32/250CI 32/300CI Choose variant
    Not rated
    Brand: A.P.I.
    1 808 Kč 1 808 Kč 1 858 Kč 1 881 Kč 1 903 Kč 1 926 Kč 1 976 Kč 2 021 Kč 2 076 Kč 2 120 Kč 2 171 Kč 2 216 Kč 2 338 Kč 2 501 Kč 2 501 Kč 2 687 Kč 2 927 Kč 3 158 Kč from 1 808 Kč –4 % –4 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % up to –5 %

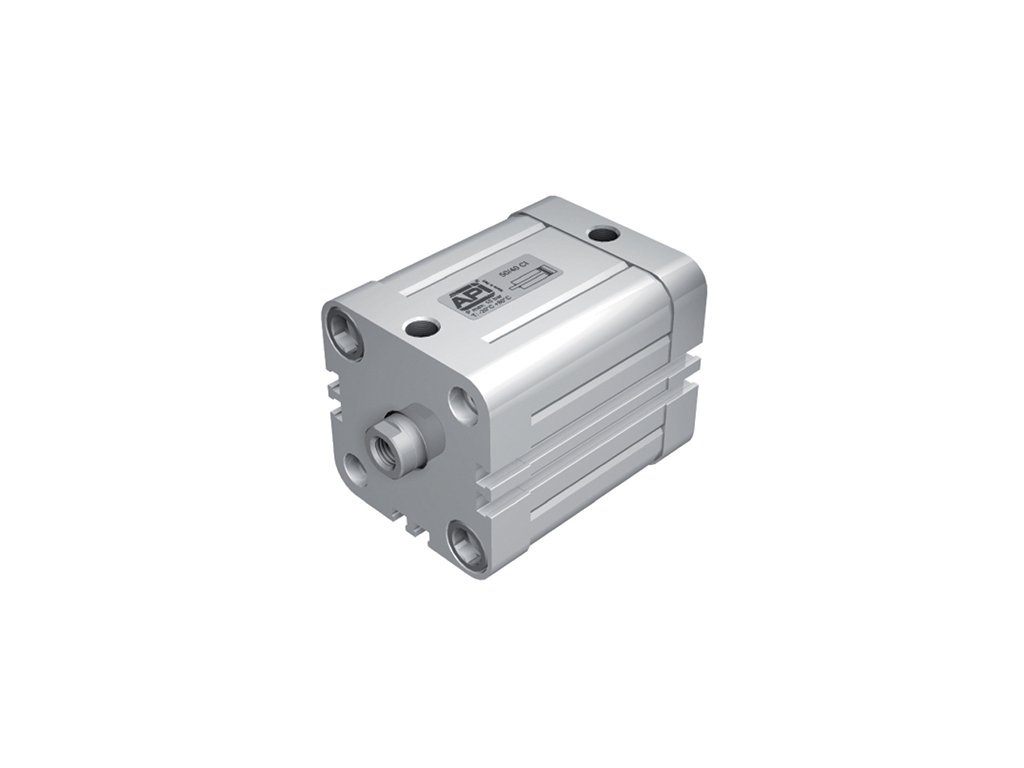

    Compact double acting cylinders CI 32mm
    1 808 Kč 1 808 Kč 1 858 Kč 1 881 Kč 1 903 Kč 1 926 Kč 1 976 Kč 2 021 Kč 2 076 Kč 2 120 Kč 2 171 Kč 2 216 Kč 2 338 Kč 2 501 Kč 2 501 Kč 2 687 Kč 2 927 Kč 3 158 Kč from 1 808 Kč –4 % –4 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % up to –5 % 1 718 Kč / pcs 1 718 Kč / pcs 1 765 Kč / pcs 1 787 Kč / pcs 1 808 Kč / pcs 1 830 Kč / pcs 1 877 Kč / pcs 1 920 Kč / pcs 1 972 Kč / pcs 2 014 Kč / pcs 2 062 Kč / pcs 2 105 Kč / pcs 2 222 Kč / pcs 2 376 Kč / pcs 2 376 Kč / pcs 2 553 Kč / pcs 2 781 Kč / pcs 3 000 Kč / pcs from 1 718 Kč / pcs 1 420 Kč excl. VAT 1 420 Kč excl. VAT 1 459 Kč excl. VAT 1 477 Kč excl. VAT 1 494 Kč excl. VAT 1 512 Kč excl. VAT 1 551 Kč excl. VAT 1 587 Kč excl. VAT 1 630 Kč excl. VAT 1 664 Kč excl. VAT 1 704 Kč excl. VAT 1 740 Kč excl. VAT 1 836 Kč excl. VAT 1 964 Kč excl. VAT 1 964 Kč excl. VAT 2 110 Kč excl. VAT 2 298 Kč excl. VAT 2 479 Kč excl. VAT from 1 420 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer
    CI double-acting cylinders with 32 mm diameter with magnet with internal thread on piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Double acting cylinders CI 32 mm with magnet

    • diameter 32 mm
    • strokes 1 - 400 mm
    • with internal thread on piston rod
    • connection by 1/8" thread
    • pressure 1 - 10 bar
    • made of aluminium and C45 steel

    Additional parameters

    Category: Compact cylinders according to ISO 21287
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Magnet: with a magnet
    Piston rod material: C45 steel
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 32 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 434 N
    Cylinder type: Compact
    Stroke selection: 1 - 400 mm
    Connecting rod thread: M8
    Minimální tlak: 1 bar
