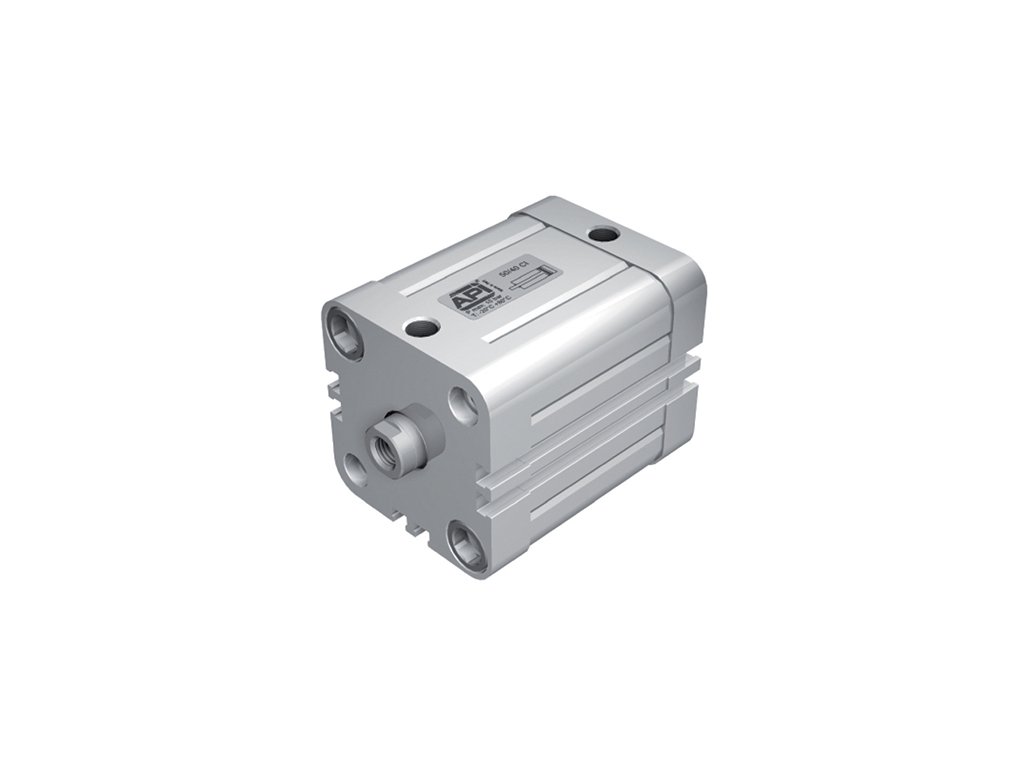

Compact double acting cylinders CI 20mm

Code: 20/5CI 20/10CI 20/15CI 20/20CI 20/25CI 20/30CI 20/40CI 20/50CI 20/60CI 20/70CI 20/80CI 20/100CI 20/125CI 20/150CI 20/160CI 20/200CI Choose variant
1 459 Kč 1 481 Kč 1 501 Kč 1 518 Kč 1 536 Kč 1 550 Kč 1 590 Kč 1 622 Kč 1 659 Kč 1 695 Kč 1 731 Kč 1 794 Kč 1 881 Kč 2 007 Kč 2 007 Kč 2 148 Kč from 1 459 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % –4 % –4 % –5 % –4 % –4 % –4 % up to –5 %
Compact double acting cylinders CI 20mm
1 459 Kč 1 481 Kč 1 501 Kč 1 518 Kč 1 536 Kč 1 550 Kč 1 590 Kč 1 622 Kč 1 659 Kč 1 695 Kč 1 731 Kč 1 794 Kč 1 881 Kč 2 007 Kč 2 007 Kč 2 148 Kč from 1 459 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % –4 % –4 % –5 % –4 % –4 % –4 % up to –5 % 1 386 Kč / pcs 1 407 Kč / pcs 1 426 Kč / pcs 1 442 Kč / pcs 1 459 Kč / pcs 1 472 Kč / pcs 1 511 Kč / pcs 1 541 Kč / pcs 1 576 Kč / pcs 1 610 Kč / pcs 1 645 Kč / pcs 1 705 Kč / pcs 1 787 Kč / pcs 1 907 Kč / pcs 1 907 Kč / pcs 2 041 Kč / pcs from 1 386 Kč / pcs 1 145 Kč excl. VAT 1 163 Kč excl. VAT 1 179 Kč excl. VAT 1 192 Kč excl. VAT 1 206 Kč excl. VAT 1 217 Kč excl. VAT 1 249 Kč excl. VAT 1 274 Kč excl. VAT 1 302 Kč excl. VAT 1 331 Kč excl. VAT 1 360 Kč excl. VAT 1 409 Kč excl. VAT 1 477 Kč excl. VAT 1 576 Kč excl. VAT 1 576 Kč excl. VAT 1 687 Kč excl. VAT from 1 145 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer
CI double-acting cylinders with 20 mm diameter magnet with internal thread on piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

CI double acting cylinders 20 mm with magnet

  • diameter 20 mm
  • strokes 1 - 300 mm
  • with internal thread on piston rod
  • connection using M5 thread
  • pressure 1 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Compact cylinders according to ISO 21287
Version: Double acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: C45 steel
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 20 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 170 N
Cylinder type: Compact
Stroke selection: 1 - 300 mm
Connecting rod thread: M6
Minimální tlak: 1 bar
