    Compact double-acting cylinders CI 100mm

    Code: 100/5CI 100/10CI 100/15CI 100/20CI 100/25CI 100/30CI 100/40CI 100/50CI 100/60CI 100/70CI 100/80CI 100/100CI 100/125CI 100/150CI 100/160CI 100/200CI 100/250CI 100/300CI 100/320CI 100/350CI 100/400CI 100/450CI 100/500CI Choose variant
    Not rated
    Brand: API
    5 424 Kč 5 506 Kč 5 583 Kč 5 664 Kč 5 737 Kč 5 818 Kč 5 972 Kč 6 126 Kč 6 285 Kč 6 444 Kč 6 543 Kč 6 693 Kč 7 069 Kč 7 604 Kč 7 604 Kč 8 207 Kč 8 964 Kč 9 720 Kč 10 477 Kč 10 477 Kč 11 234 Kč 11 990 Kč 12 747 Kč from 5 424 Kč –5 % –4 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
    Compact double-acting cylinders CI 100mm
    5 424 Kč 5 506 Kč 5 583 Kč 5 664 Kč 5 737 Kč 5 818 Kč 5 972 Kč 6 126 Kč 6 285 Kč 6 444 Kč 6 543 Kč 6 693 Kč 7 069 Kč 7 604 Kč 7 604 Kč 8 207 Kč 8 964 Kč 9 720 Kč 10 477 Kč 10 477 Kč 11 234 Kč 11 990 Kč 12 747 Kč from 5 424 Kč –5 % –4 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 5 153 Kč / pcs 5 231 Kč / pcs 5 304 Kč / pcs 5 381 Kč / pcs 5 450 Kč / pcs 5 527 Kč / pcs 5 674 Kč / pcs 5 820 Kč / pcs 5 971 Kč / pcs 6 121 Kč / pcs 6 216 Kč / pcs 6 358 Kč / pcs 6 715 Kč / pcs 7 224 Kč / pcs 7 224 Kč / pcs 7 797 Kč / pcs 8 516 Kč / pcs 9 234 Kč / pcs 9 953 Kč / pcs 9 953 Kč / pcs 10 672 Kč / pcs 11 391 Kč / pcs 12 110 Kč / pcs from 5 153 Kč / pcs 4 259 Kč excl. VAT 4 323 Kč excl. VAT 4 383 Kč excl. VAT 4 447 Kč excl. VAT 4 504 Kč excl. VAT 4 568 Kč excl. VAT 4 689 Kč excl. VAT 4 810 Kč excl. VAT 4 935 Kč excl. VAT 5 059 Kč excl. VAT 5 137 Kč excl. VAT 5 255 Kč excl. VAT 5 550 Kč excl. VAT 5 970 Kč excl. VAT 5 970 Kč excl. VAT 6 444 Kč excl. VAT 7 038 Kč excl. VAT 7 631 Kč excl. VAT 8 226 Kč excl. VAT 8 226 Kč excl. VAT 8 820 Kč excl. VAT 9 414 Kč excl. VAT 10 008 Kč excl. VAT from 4 259 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 17.03.2025 Choose variant
    Delivery offer
    CI double-acting cylinders with 100 mm diameter with a magnet with internal thread on the piston rod. Complies with ISO 21287 standards. With grooves for direct mounting of position sensors. The rollers are equipped with fixed damping in the end positions. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

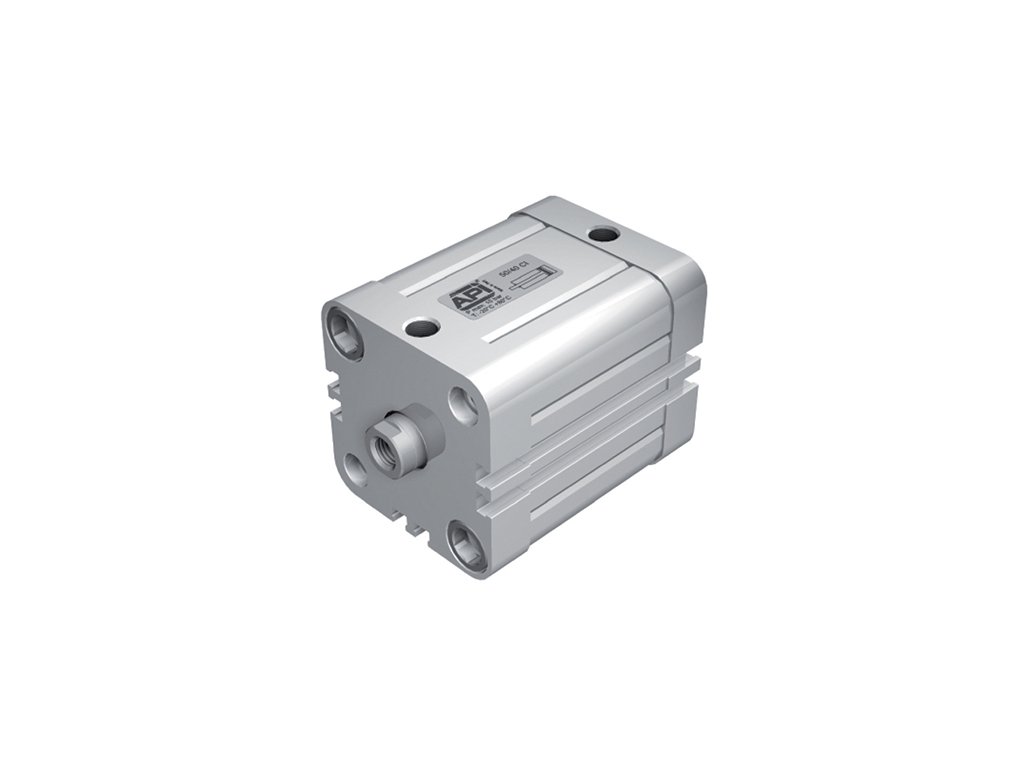

    Double acting cylinders CI 100 mm with magnet

    • diameter 100 mm
    • strokes 1 - 500 mm
    • with internal thread on piston rod
    • connection by 1/8" thread
    • pressure 1 - 10 bar
    • made of aluminium and C45 steel

    Additional parameters

    Category: Compact cylinders according to ISO 21287
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Magnet: with a magnet
    Piston rod material: C45 steel
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 100 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 4240 N
    Cylinder type: Compact
    Stroke selection: 1 - 500 mm
    Connecting rod thread: M12
    Minimální tlak: 1 bar
