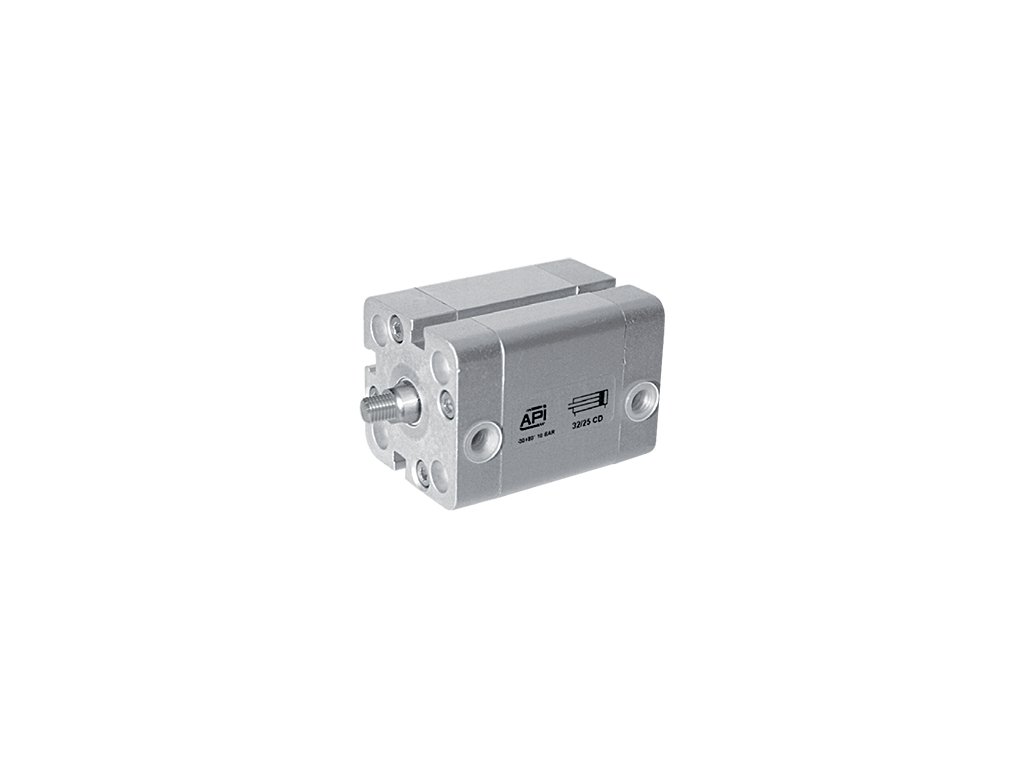

    Compact double-acting cylinders CDM 50 mm

    Code: 50/5CDM 50/10CDM 50/15CDM 50/20CDM 50/25CDM 50/30CDM 50/40CDM 50/50CDM 50/60CDM 50/70CDM 50/80CDM 50/90CDM 50/100CDM 50/125CDM 50/160CDM 50/200CDM 50/250CDM Choose variant
    Not rated
    Brand: API
    3 377 Kč 3 421 Kč 3 469 Kč 3 512 Kč 3 561 Kč 3 610 Kč 3 702 Kč 3 789 Kč 3 881 Kč 3 978 Kč 4 069 Kč 4 161 Kč 4 247 Kč 4 539 Kč 4 804 Kč 5 172 Kč 5 637 Kč from 3 377 Kč –5 % –5 % –4 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % up to –5 %
    Compact double-acting cylinders CDM 50 mm
    3 377 Kč 3 421 Kč 3 469 Kč 3 512 Kč 3 561 Kč 3 610 Kč 3 702 Kč 3 789 Kč 3 881 Kč 3 978 Kč 4 069 Kč 4 161 Kč 4 247 Kč 4 539 Kč 4 804 Kč 5 172 Kč 5 637 Kč from 3 377 Kč –5 % –5 % –4 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % up to –5 % 3 208 Kč / pcs 3 250 Kč / pcs 3 296 Kč / pcs 3 336 Kč / pcs 3 383 Kč / pcs 3 430 Kč / pcs 3 517 Kč / pcs 3 599 Kč / pcs 3 687 Kč / pcs 3 779 Kč / pcs 3 865 Kč / pcs 3 953 Kč / pcs 4 035 Kč / pcs 4 312 Kč / pcs 4 564 Kč / pcs 4 913 Kč / pcs 5 355 Kč / pcs from 3 208 Kč / pcs 2 651 Kč excl. VAT 2 686 Kč excl. VAT 2 724 Kč excl. VAT 2 757 Kč excl. VAT 2 796 Kč excl. VAT 2 835 Kč excl. VAT 2 907 Kč excl. VAT 2 974 Kč excl. VAT 3 047 Kč excl. VAT 3 123 Kč excl. VAT 3 194 Kč excl. VAT 3 267 Kč excl. VAT 3 335 Kč excl. VAT 3 564 Kč excl. VAT 3 772 Kč excl. VAT 4 060 Kč excl. VAT 4 426 Kč excl. VAT from 2 651 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 25.04.2025 Choose variant
    Delivery offer
    Double acting CDM cylinders with 50 mm diameter with magnet with external thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Double acting cylinders CDM 50 mm with magnet

    • diameter 50 mm
    • strokes 1-250 mm
    • with external thread on piston rod
    • connection by 1/8" thread
    • pressure 2 - 10 bar
    • made of aluminium and stainless steel AISI303

    Additional parameters

    Category: Compact cylinders CS and CD according to UNITOP
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Magnet: with a magnet
    Piston rod material: Stainless steel AISI303
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 50 mm
    Temperature: -30/+80°C
    Seals: PU
    Cylinder thrust: 1060 N
    Cylinder type: Compact
    Stroke selection: 1-250 mm
    Connecting rod thread: M12 x 1.25
    Minimální tlak: 2 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Security check

    Extensive experience is complemented by a wide range of productsOne of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs. api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.
