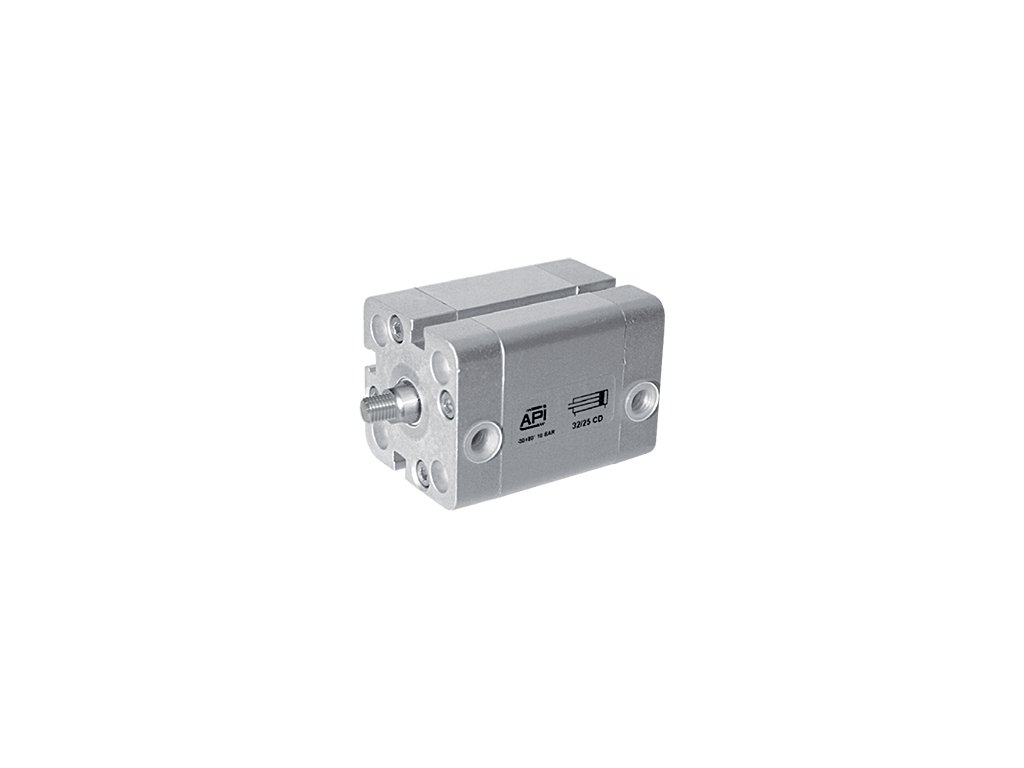

Compact double-acting cylinders CDM 16mm

Code: 16/5CDM 16/10CDM 16/15CDM 16/20CDM 16/25CDM 16/30CDM 16/40CDM 16/50CDM 16/60CDM 16/70CDM 16/80CDM 16/90CDM 16/100CDM 16/125CDM Choose variant
1 830 Kč 1 852 Kč 1 868 Kč 1 884 Kč 1 899 Kč 1 922 Kč 1 958 Kč 1 995 Kč 2 027 Kč 2 070 Kč 2 101 Kč 2 139 Kč 2 171 Kč 2 261 Kč from 1 830 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
Compact double-acting cylinders CDM 16mm
1 830 Kč 1 852 Kč 1 868 Kč 1 884 Kč 1 899 Kč 1 922 Kč 1 958 Kč 1 995 Kč 2 027 Kč 2 070 Kč 2 101 Kč 2 139 Kč 2 171 Kč 2 261 Kč from 1 830 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 1 739 Kč / pcs 1 759 Kč / pcs 1 774 Kč / pcs 1 789 Kč / pcs 1 804 Kč / pcs 1 825 Kč / pcs 1 860 Kč / pcs 1 895 Kč / pcs 1 925 Kč / pcs 1 966 Kč / pcs 1 996 Kč / pcs 2 032 Kč / pcs 2 062 Kč / pcs 2 148 Kč / pcs from 1 739 Kč / pcs 1 437 Kč excl. VAT 1 454 Kč excl. VAT 1 466 Kč excl. VAT 1 479 Kč excl. VAT 1 491 Kč excl. VAT 1 508 Kč excl. VAT 1 537 Kč excl. VAT 1 566 Kč excl. VAT 1 591 Kč excl. VAT 1 625 Kč excl. VAT 1 650 Kč excl. VAT 1 679 Kč excl. VAT 1 704 Kč excl. VAT 1 775 Kč excl. VAT from 1 437 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 Choose variant
Double-acting CDM cylinders with 16 mm diameter magnet with external thread on the piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Product detailed description

Double acting cylinders CDM 16 mm with magnet

  • diameter 16 mm
  • strokes 1-125 mm
  • with internal thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Double acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 16 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 109 N
Cylinder type: Compact
Stroke selection: 1-125 mm
Connecting rod thread: M8
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
