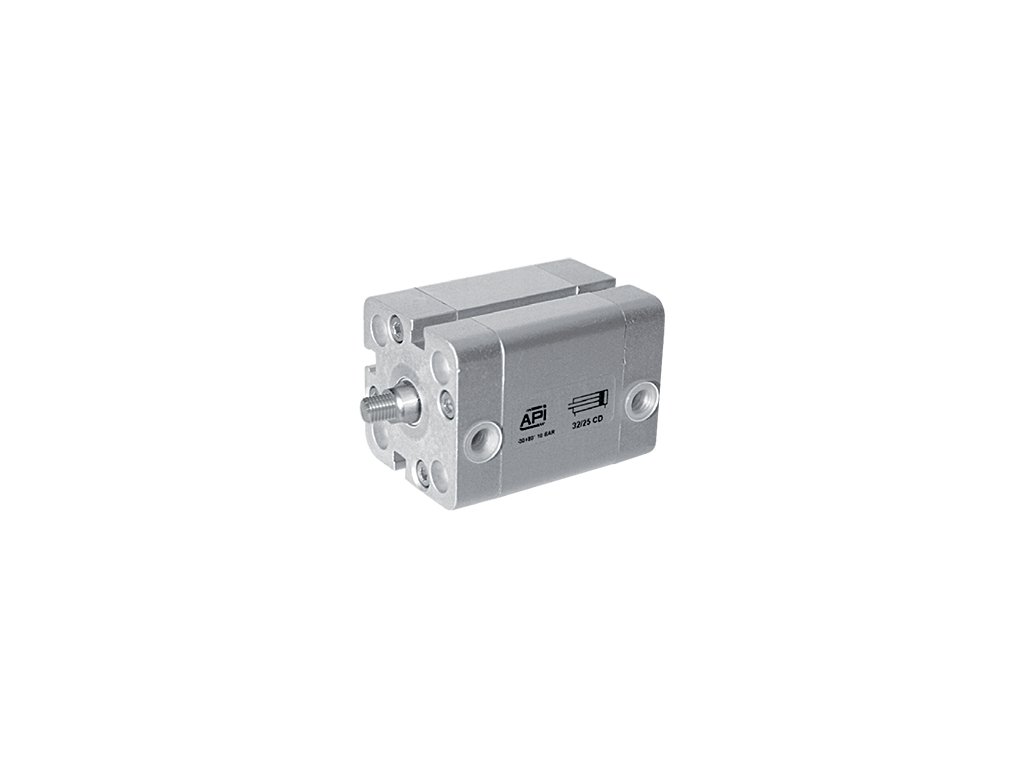

Compact double-acting cylinders CDM 12mm

Code: 12/5CDM 12/10CDM 12/15CDM 12/20CDM 12/25CDM 12/30CDM 12/40CDM 12/50CDM 12/60CDM 12/70CDM 12/80CDM 12/90CDM 12/100CDM Choose variant
1 830 Kč 1 852 Kč 1 868 Kč 1 884 Kč 1 899 Kč 1 922 Kč 1 958 Kč 1 995 Kč 2 027 Kč 2 070 Kč 2 101 Kč 2 139 Kč 2 171 Kč from 1 830 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
Compact double-acting cylinders CDM 12mm
1 830 Kč 1 852 Kč 1 868 Kč 1 884 Kč 1 899 Kč 1 922 Kč 1 958 Kč 1 995 Kč 2 027 Kč 2 070 Kč 2 101 Kč 2 139 Kč 2 171 Kč from 1 830 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 1 739 Kč / pcs 1 759 Kč / pcs 1 774 Kč / pcs 1 789 Kč / pcs 1 804 Kč / pcs 1 825 Kč / pcs 1 860 Kč / pcs 1 895 Kč / pcs 1 925 Kč / pcs 1 966 Kč / pcs 1 996 Kč / pcs 2 032 Kč / pcs 2 062 Kč / pcs from 1 739 Kč / pcs 1 437 Kč excl. VAT 1 454 Kč excl. VAT 1 466 Kč excl. VAT 1 479 Kč excl. VAT 1 491 Kč excl. VAT 1 508 Kč excl. VAT 1 537 Kč excl. VAT 1 566 Kč excl. VAT 1 591 Kč excl. VAT 1 625 Kč excl. VAT 1 650 Kč excl. VAT 1 679 Kč excl. VAT 1 704 Kč excl. VAT from 1 437 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant
Double acting cylinders CDM 12 mm diameter with magnet with external thread on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Product detailed description

Double acting cylinders CDM 12 mm with magnet

  • diameter 12 mm
  • strokes 1-100 mm
  • with external thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Double acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 12 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 61 N
Cylinder type: Compact
Stroke selection: 1-100 mm
Connecting rod thread: M6
Minimální tlak: 2 bar
