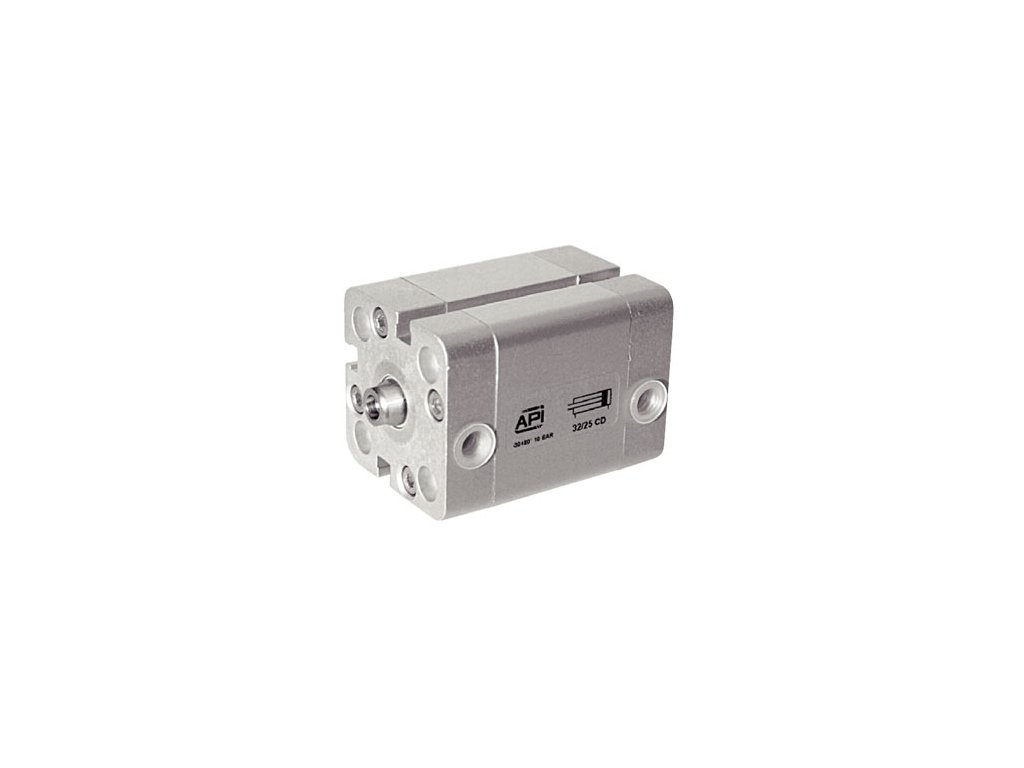

Compact double-acting cylinders CD 25mm

Code: 25/5CD 25/10CD 25/15CD 25/20CD 25/25CD 25/30CD 25/40CD 25/50CD 25/60CD 25/70CD 25/80CD 25/90CD 25/100CD 25/125CD 25/160CD Choose variant
2 108 Kč 2 134 Kč 2 161 Kč 2 183 Kč 2 216 Kč 2 242 Kč 2 291 Kč 2 351 Kč 2 399 Kč 2 453 Kč 2 507 Kč 2 561 Kč 2 615 Kč 2 746 Kč 2 934 Kč from 2 108 Kč –5 % –4 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % –5 % –4 % –5 % –4 % –5 % –5 % up to –5 %
Compact double-acting cylinders CD 25mm
2 108 Kč 2 134 Kč 2 161 Kč 2 183 Kč 2 216 Kč 2 242 Kč 2 291 Kč 2 351 Kč 2 399 Kč 2 453 Kč 2 507 Kč 2 561 Kč 2 615 Kč 2 746 Kč 2 934 Kč from 2 108 Kč –5 % –4 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % –5 % –4 % –5 % –4 % –5 % –5 % up to –5 % 2 002 Kč / pcs 2 028 Kč / pcs 2 053 Kč / pcs 2 074 Kč / pcs 2 105 Kč / pcs 2 130 Kč / pcs 2 177 Kč / pcs 2 234 Kč / pcs 2 279 Kč / pcs 2 330 Kč / pcs 2 382 Kč / pcs 2 433 Kč / pcs 2 485 Kč / pcs 2 608 Kč / pcs 2 787 Kč / pcs from 2 002 Kč / pcs 1 655 Kč excl. VAT 1 676 Kč excl. VAT 1 697 Kč excl. VAT 1 714 Kč excl. VAT 1 740 Kč excl. VAT 1 760 Kč excl. VAT 1 799 Kč excl. VAT 1 846 Kč excl. VAT 1 883 Kč excl. VAT 1 926 Kč excl. VAT 1 969 Kč excl. VAT 2 011 Kč excl. VAT 2 054 Kč excl. VAT 2 155 Kč excl. VAT 2 303 Kč excl. VAT from 1 655 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer
Double-acting CD cylinders with 25 mm diameter with a magnet with internal thread on the piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Double acting cylinders CD 25 mm with magnet

  • diameter 25 mm
  • strokes 1-160 mm
  • with internal thread on piston rod
  • connection using M5 thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel AISI303

Additional parameters

Category: Compact cylinders CS and CD according to UNITOP
Version: Double acting cylinders
Pressure: 10 bars
Connecting: M5
Magnet: with a magnet
Piston rod material: Stainless steel AISI303
Piston material: Aluminium
Profile material: Aluminium
Lid material: Aluminium
Average: 25 mm
Temperature: -30/+80°C
Seals: PU
Cylinder thrust: 265 N
Cylinder type: Compact
Stroke selection: 1-160 mm
Connecting rod thread: M5
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
