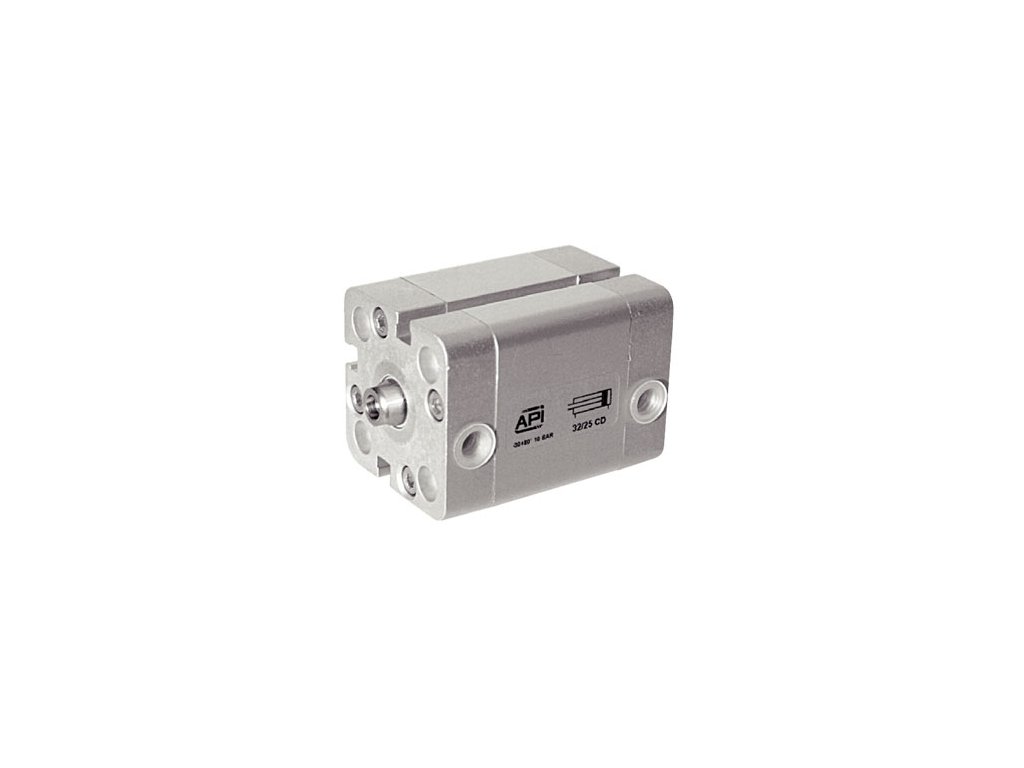

    Compact double-acting cylinders CD 100mm

    Code: 100/10CD 100/15CD 100/20CD 100/25CD 100/30CD 100/40CD 100/50CD 100/60CD 100/70CD 100/80CD 100/90CD 100/100CD 100/125CD 100/160CD 100/200CD 100/250CD Choose variant
    Not rated
    Brand: A.P.I.
    7 398 Kč 7 501 Kč 7 609 Kč 7 711 Kč 7 819 Kč 8 031 Kč 8 241 Kč 8 446 Kč 8 657 Kč 8 862 Kč 9 078 Kč 9 284 Kč 9 808 Kč 10 543 Kč 11 380 Kč 12 434 Kč from 7 398 Kč –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
    Compact double-acting cylinders CD 100mm
    7 398 Kč 7 501 Kč 7 609 Kč 7 711 Kč 7 819 Kč 8 031 Kč 8 241 Kč 8 446 Kč 8 657 Kč 8 862 Kč 9 078 Kč 9 284 Kč 9 808 Kč 10 543 Kč 11 380 Kč 12 434 Kč from 7 398 Kč –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 7 028 Kč / pcs 7 126 Kč / pcs 7 228 Kč / pcs 7 326 Kč / pcs 7 428 Kč / pcs 7 629 Kč / pcs 7 829 Kč / pcs 8 024 Kč / pcs 8 224 Kč / pcs 8 419 Kč / pcs 8 624 Kč / pcs 8 820 Kč / pcs 9 318 Kč / pcs 10 016 Kč / pcs 10 811 Kč / pcs 11 812 Kč / pcs from 7 028 Kč / pcs 5 808 Kč excl. VAT 5 889 Kč excl. VAT 5 974 Kč excl. VAT 6 055 Kč excl. VAT 6 139 Kč excl. VAT 6 305 Kč excl. VAT 6 470 Kč excl. VAT 6 631 Kč excl. VAT 6 797 Kč excl. VAT 6 958 Kč excl. VAT 7 127 Kč excl. VAT 7 289 Kč excl. VAT 7 701 Kč excl. VAT 8 278 Kč excl. VAT 8 935 Kč excl. VAT 9 762 Kč excl. VAT from 5 808 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer
    Double-acting CD cylinders of 100 mm diameter with internally threaded magnet on piston rod. Meets the UNITOP dimensional standard. In profile version with grooves for direct mounting of position sensors. The cylinders are equipped with fixed damping in the end positions and a magnet in the end positions. Made of aluminium and stainless steel AISI303.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Double acting cylinders CD 100 mm with magnet

    • diameter 100 mm
    • strokes 1-250 mm
    • with internal thread on piston rod
    • connection via 1/4" thread
    • pressure 2 - 10 bar
    • made of aluminium and stainless steel AISI303

    Additional parameters

    Category: Compact cylinders CS and CD according to UNITOP
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/4"
    Magnet: with a magnet
    Piston rod material: Stainless steel AISI303
    Piston material: Aluminium
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 100 mm
    Temperature: -30/+80°C
    Seals: PU
    Cylinder thrust: 4240 N
    Cylinder type: Compact
    Stroke selection: 1-250 mm
    Connecting rod thread: M12
    Minimální tlak: 2 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Security check

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.
