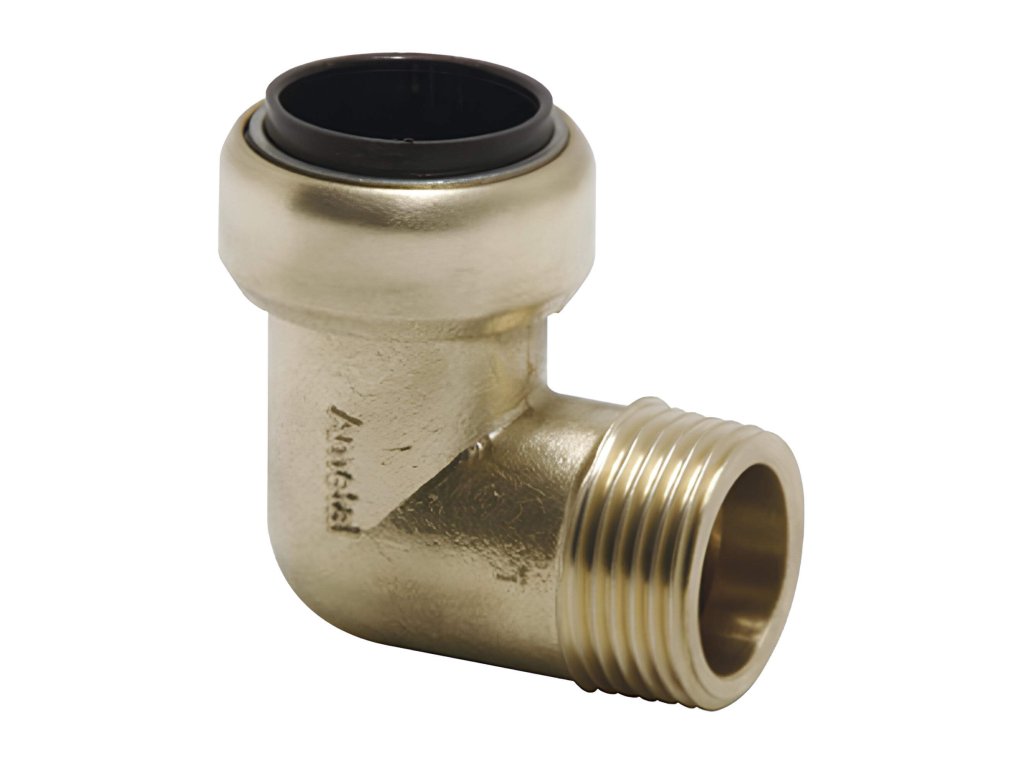

Elbow external thread 3/4" - 22 mm
Code: YPL-3422Related products
Tube made of PA12 grilamid for plastic design of compressed air pipelines. Pipe dimensions 22/18 mm with a recommended operating pressure of 15 bar. The classic blue colour for...
Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 22/18 mm with a recommended operating pressure of 15 bar. The classic blue colour for...
Powder-coated blue aluminium pipe with dimensions 22,19,2 mm designed for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Curved pipe with a diameter of 22 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C...
Powder-coated blue aluminium pipe with a dimension of 18/15.4 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 15 / 12 mm with recommended operating pressure 16 bar. The classic blue colour for the...
Powder-coated aluminium pipe in green colour with dimensions 25/22,2 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Powder-coated blue aluminium pipe with dimensions 15/12,4 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Curved pipe with a diameter of 15 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C...
Powder-coated aluminium pipe in green colour with dimensions 20/17,4 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Powder-coated aluminium pipe in blue colour, 32,29 mm, designed for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 15 / 12 mm with recommended operating pressure 16 bar. The classic blue colour for the...
Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 18/14 mm with recommended operating pressure 17 bar. The classic blue colour for the...
Powder-coated blue aluminium pipe with dimensions 20/17.4 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.
Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 28/23 mm with a recommended operating pressure of 14 bar. The classic blue colour for...
Powder-coated blue aluminium pipe with dimensions 50/46.0 mm for compressed air and inert gas piping up to 16 bar. Pipe material - AW-6060 T6 alloy.
Product detailed description
Corner fitting for air distribution 22 - 3/4"
- modern system for easy pipe joining
- the connection is made by simply pushing the pipe into the coupling, extremely fast assembly
- without the need for special tools
- detachable design
- body material brass, NBR ring, steel cutting edge

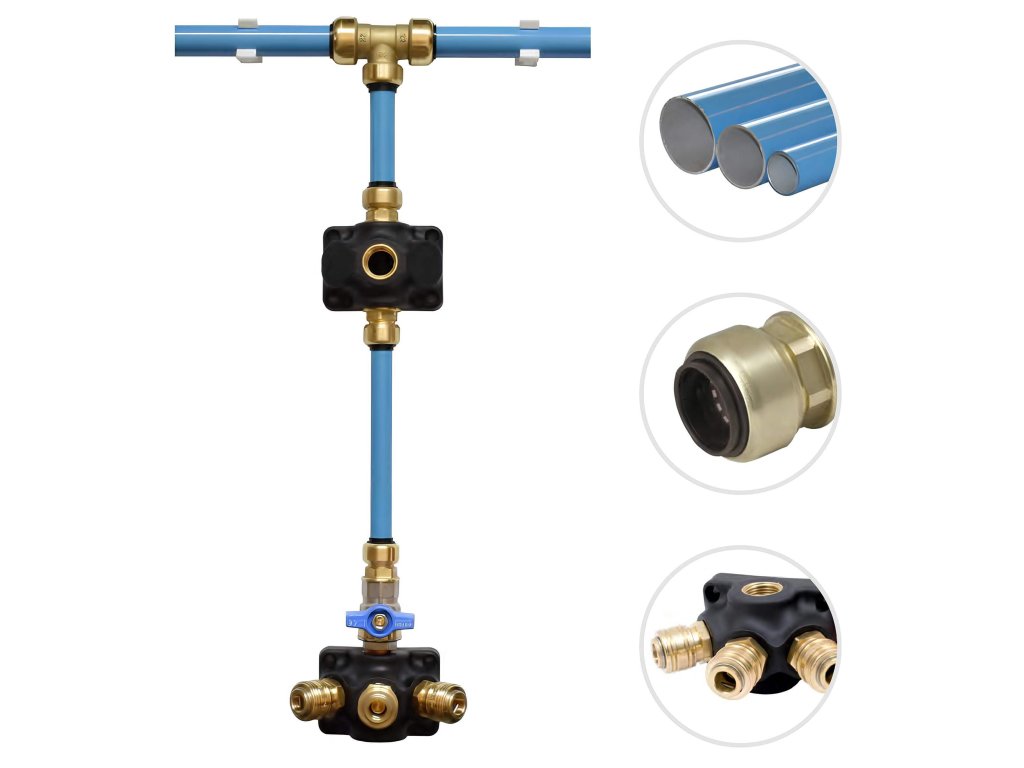

- designed for compressed air piping in industry and crafts
Additional parameters
Category: | Compressed air pipe couplings |
---|---|
Version: | Elbows 90° with external thread |
Pressure: | 17 bar |
Working temperature: | -30/+70 °C |
SW: | 28 |
Tube: | 22 mm |
Thread: | G 3/4" |
Conduit: | 22 mm |
