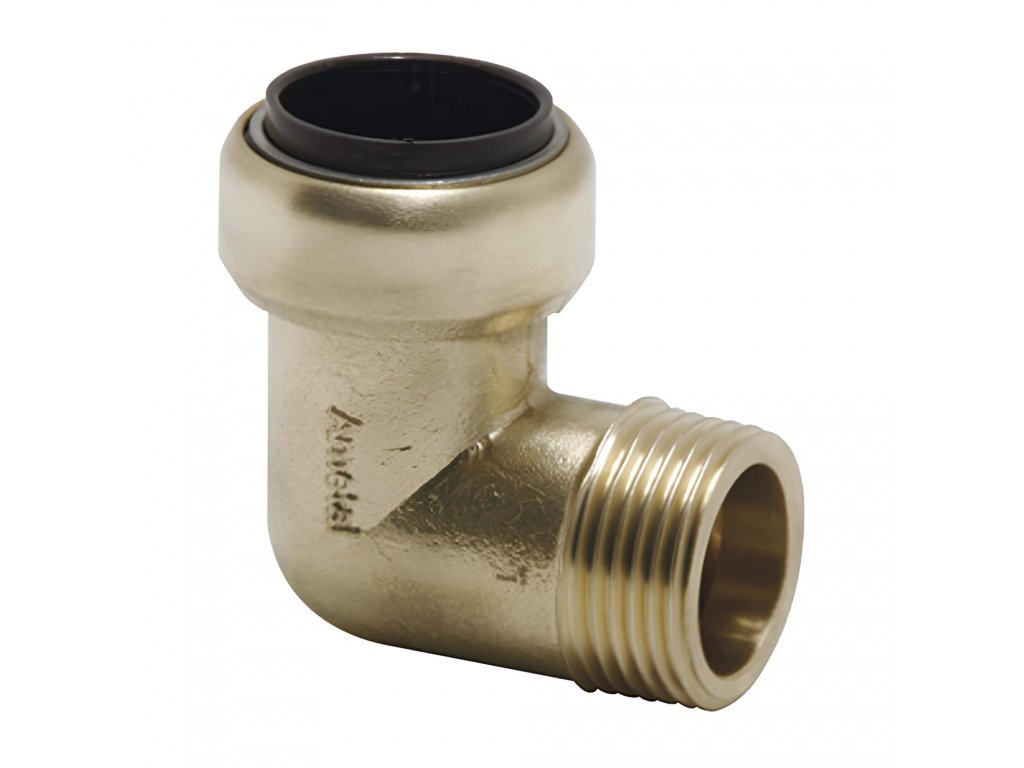

    Elbow external thread 1/2" - 18 mm

    Code: TA13-1218
    Not rated
    599 Kč –3 %
    Elbow external thread 1/2" - 18 mm
    599 Kč –3 % 581 Kč / pcs 480 Kč excl. VAT
    Stock (6 pcs)
    Delivery to:
    25.12.2024
    Corner socket fitting for air piping up to 16 atmospheres. Version with external pipe thread G 1/2". For pipe with outer diameter 18 mm. Simple Tectite socket system that can be disassembled again. No special tools are required for installation. Installation is easy, fast and can be done by any skilled end user.

    Detailed information

    Related products

    gra nastrcne spojky poptrubi rozvody vzduchu kompresor tectite
    1 098 Kč –3 %
    Grilamid tube in 4 m rod 18 / 14 - 17 bar
    Stock (180 pcs)
    880 Kč excl. VAT
    1 065 Kč

    Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 18/14 mm with recommended operating pressure 17 bar. The classic blue colour for the...

    Code: GRB-T4-18
    grilamid nastrcne spojky poptrubi rozvody vzduchu kompresor tectite
    6 457 Kč –3 %
    Grilamid pipe in roll 18 / 14 - 17 bar
    Stock (7 pcs)
    5 176 Kč excl. VAT
    6 263 Kč

    Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 18/14 mm with recommended operating pressure 17 bar. The classic blue colour for the...

    Code: GRB-R25-18
    Dismantling sleeve 18 mm
    35 Kč –2 %
    Dismantling sleeve 18 mm
    Stock (7 pcs)
    28 Kč excl. VAT
    34 Kč

    Removal sleeve for air distribution 18 mm. A simple sleeve that makes it easy to disassemble the air ducts. No special tools are required for the installation of the air...

    Code: DC-18
    Dismantling pliers 18 mm
    183 Kč –2 %
    Dismantling pliers 18 mm
    Stock (1 pcs)
    147 Kč excl. VAT
    178 Kč

    Pliers for removing couplings of the Air Push pipe system with a pipe diameter of 18 mm.

    Code: DT-18
    Aluminum tube in 6 m rod 18 / 15.4 - 16 bar
    Tip
    939 Kč –3 %
    Aluminum tube in 6 m rod 18 / 15.4 - 16 bar
    Stock (33 pcs)
    752 Kč excl. VAT
    910 Kč

    Powder-coated blue aluminium pipe with a dimension of 18/15.4 mm for piping of compressed air and inert gases up to 16 bar. Pipe material - AW-6060 T6 alloy.

    Code: TALB-T6-18
    Show all related products Previous product Next product

    Product detailed description

    Corner fitting for air distribution 18 - 1/2"

    • modern system for easy pipe joining
    • the connection is made by simply pushing the pipe into the coupling, extremely fast assembly
    • without the need for special tools
    • detachable design
    • body material brass, NBR ring, steel cutting edge
    • designed for compressed air piping in industry and crafts

    Additional parameters

    Category: Compressed air pipe couplings
    Version: Elbows 90° with external thread
    Pressure: 17 bar
    Working temperature: -30/+70 °C
    SW: 24
    Tube: 18 mm
    Thread: G 1/2"
    Conduit: 18 mm
