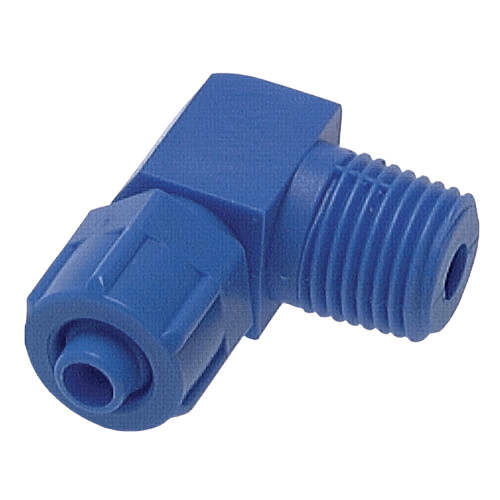

Elbows with external thread
 |
|
Elbows with external thread in tubular design |
||||
| Ordering number |
Tube mm |
Thread " |
The body material |
Matrix material |
| GCKP-186 | 6/4 mm | R 1/8" | HELP | HELP |
| GCKP-146 | 6/4 mm | R 1/4" | HELP | HELP |
| GCKP-188 | 8/6 mm | R 1/8" | HELP | HELP |
| GCKP-148 | 8/6 mm | R 1/4" | HELP | HELP |
| GCKP-1412 | 12/9 mm | R 1/4" | HELP | HELP |
| GCKP-3812 | 12/9 mm | R 3/8" | HELP | HELP |
Bestsellers
Designed for 12/9 mm tubing and R 1/4" thread. In POM plastic. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for 12/9 mm tubing and R 3/8" thread. In POM plastic. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for 6/4 mm tubing and R 1/8" thread. In POM plastic. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for 8/6 mm tubing and R 1/8" thread. In POM plastic. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for 6/4 mm tubing and R 1/4" thread. In POM plastic. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
Designed for 8/6 mm tubing and R 1/4" thread. In POM plastic. Maximum working pressure 10 bar and temperature -10/+60 °C. Package contains 10pcs.
