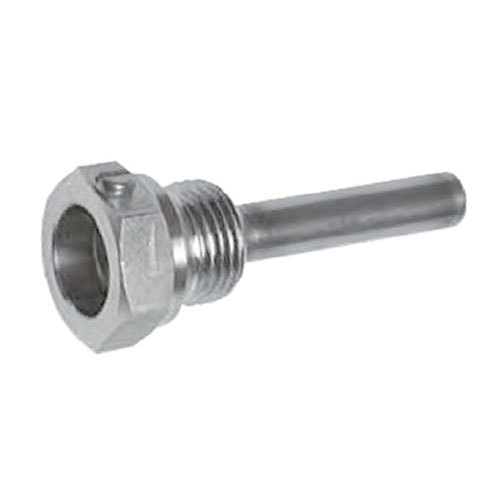

    Wells for WIKA thermometers

    Jímky pro teploměry WIKA pro měření teploty média

    Place the thermometers in the sump, which is connected to the medium to be measured by means of the necessary thread or threaded connection. Select the material of the sump using the medium to be measured. If the medium is aggressive, you will need a stainless steel sump. Stainless steel sumps are mostly used in the chemical and food industries. For other temperature measurement cases, the aluminium sump is sufficient.

    • Sumps with fixing screw and external thread or welding, three material versions - stainless steel, steel, copper
    • Serves as thermometer stem protection and as a connection element, designed for WIKA thermometers of TW and TST series

    Thermowells for WIKA thermometers for measuring the temperature of the medium
    Ordering
    number    		 Material
    wells    		 Connection
    "    		 Length
    mm    		 Diameter
    mm    		 Pressure
    bar
    TRCU-63 copper thread 1/2" 63 18 6
    TRCU-100 copper thread 1/2" 100 18 6
    TRCU-160 copper thread 1/2" 160 18 6
    TRCU-200 copper thread 1/2" 200 18 6
    TRST-63 steel St.35 thread 1/2" 63 18 25
    TRST-100 steel St.35 thread 1/2" 100 18 25
    TRST-160 steel St.35 thread 1/2" 160 18 25
    TRST-200 steel St.35 thread 1/2" 200 18 25
    TRES-63 stainless steel 1.4571 thread 1/2" 63 18 25
    TRES-100 stainless steel 1.4571 thread 1/2" 100 18 25
    TRES-160 stainless steel 1.4571 thread 1/2" 160 18 25
    TRES-200 stainless steel 1.4571 thread 1/2" 200 18 25
    TRSW-63 stainless steel 1.4571 braze 63 18 25
    TRSW-100 stainless steel 1.4571 braze 100 18 25
    TRSW-160 stainless steel 1.4571 braze 160 18 25
    TRSW-200 stainless steel 1.4571 braze 200 18 25
