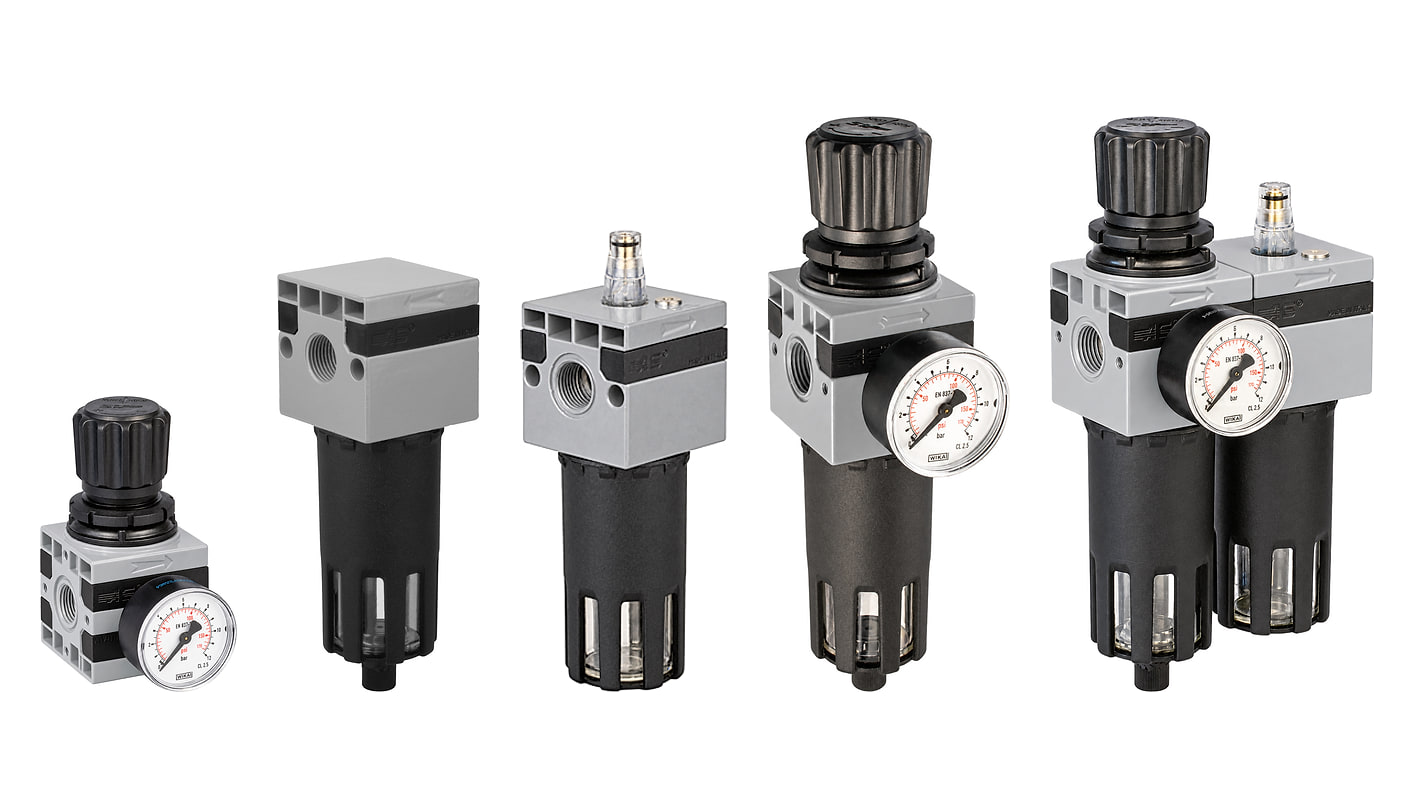

Air treatment units B2 up to 18 bar
|

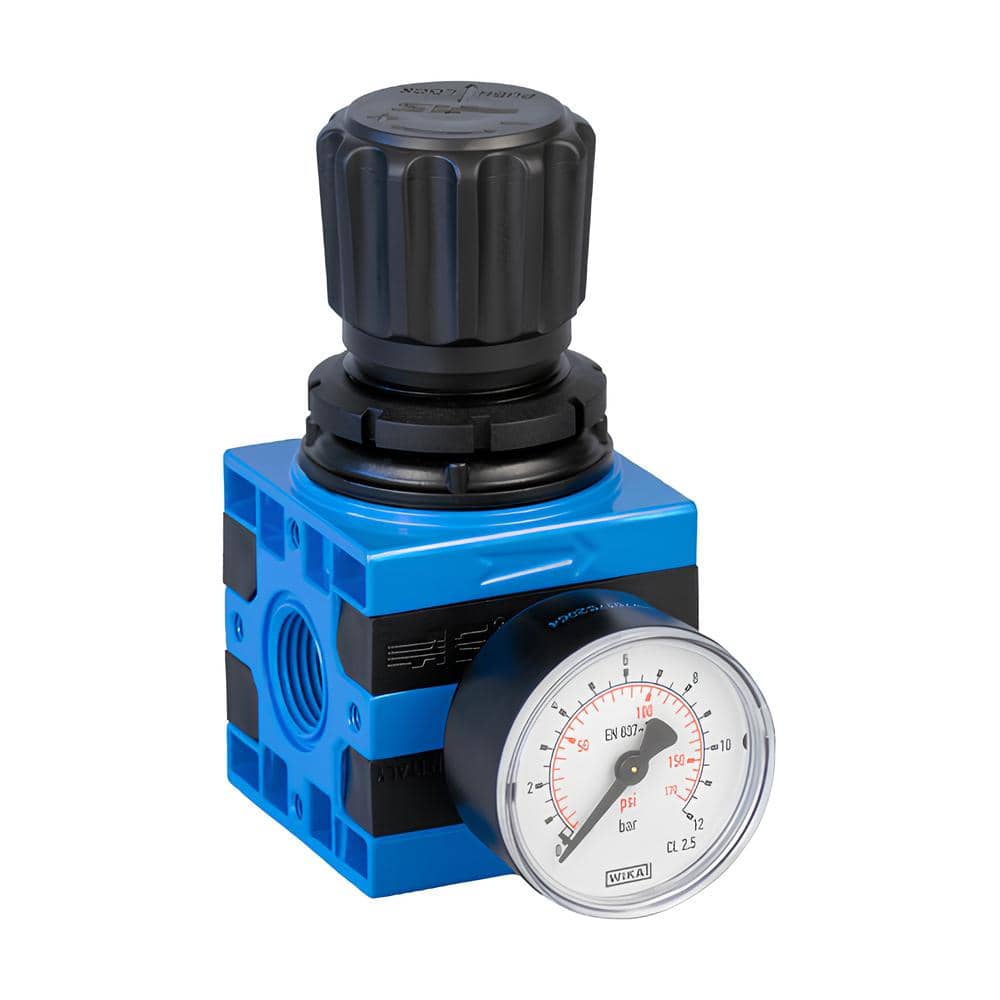

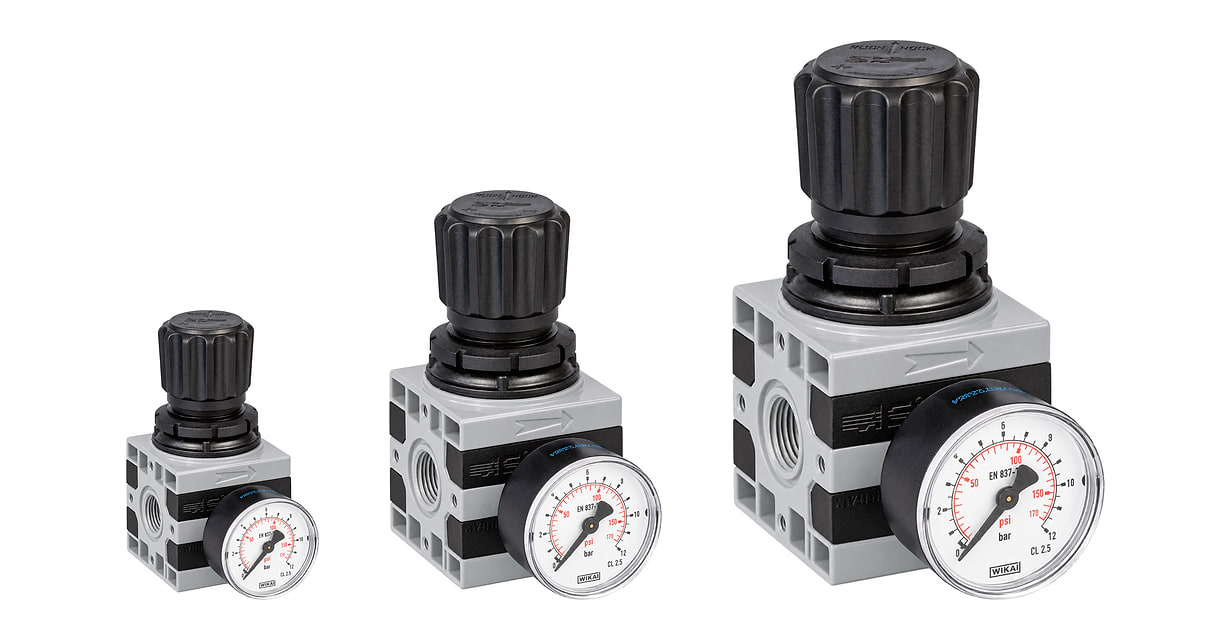

Compressed air pressure regulator B2 in metal |
||||||||||
Ordering number |
Thread " |
Inlet pressure bar |
Extent bar |
Flow rate l/min |
Manometer thread " |
Size | Dimensions mm |
|||
B2R-14 | 1/4" | 18 | 0 - 12 | 850 | 1/8" | 1 | 42 | 85 | ||
B2R- 38 | 3/8" | 18 | 0 - 10 | 2 600 | 1/8" | 2 | 60 | 120 | ||
B2R-12 | 1/2" | 18 | 0 - 10 | 2 600 | 1/8" | 2 | 60 | 120 | ||
B2R- 34 | 3/4" | 18 | 0 - 10 | 4 600 | 1/4" | 3 | 80 | 164 | ||
B2R-10 | 1" | 18 | 0 - 10 | 4 600 | 1/4" | 3 | 80 | 164 |

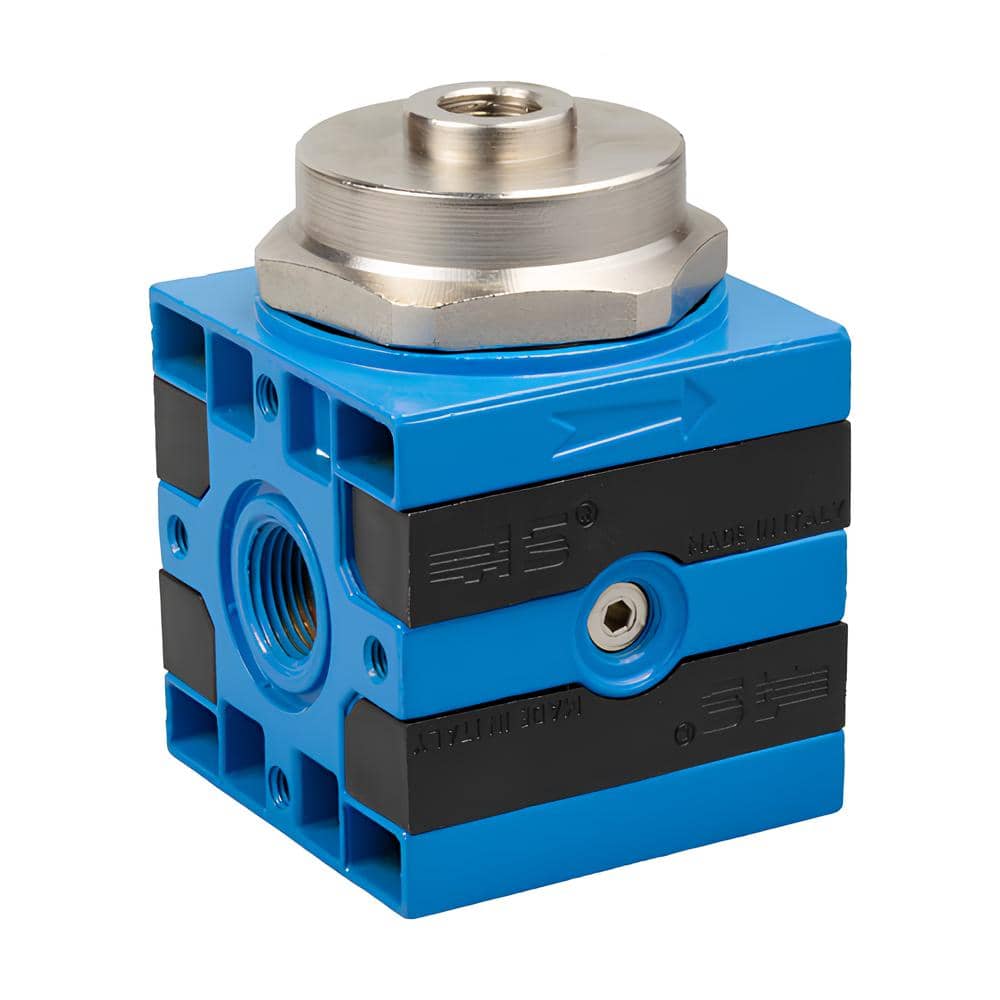

Pilot compressed air pressure regulator B2 in metal |
||||||||||
Ordering number |
Thread " |
Inlet pressure bar |
Extent bar |
Flow rate l/min |
Control thread " |
Size | Dimensions mm |
|||
B2PR-12 | 1/2" | 18 | 0 - 10 | 4 500 | 1/8" | 2 | 60 | 120 |

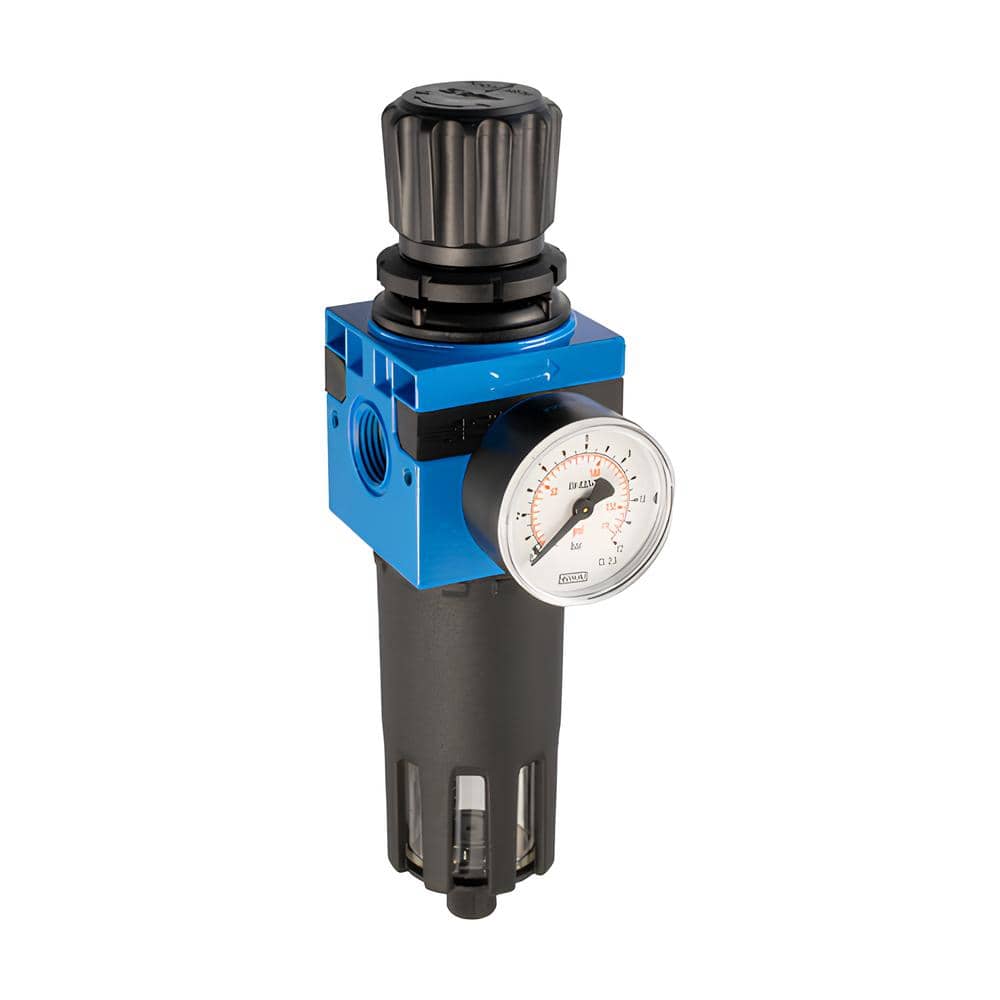

Pressure regulator with compressed air filter B2 in metal |
|||||||||||
Ordering number |
Thread " |
Inlet pressure bar |
Extent bar |
Flow rate l/min |
Manometer thread " |
Filter art |
Size | Dimensions mm |
|||
P2S-14 | 1/4" | 18 | 0 - 12 | 600 | 1/8" | 20 | 1 | 42 | 184 | ||
P2S-38 | 3/8" | 18 | 0 - 12 | 2 600 | 1/8" | 20 | 1 | 60 | 245 | ||
P2S-12 | 1/2" | 18 | 0 - 12 | 2 600 | 1/8" | 20 | 2 | 60 | 245 | ||
P2S-34 | 3/4" | 18 | 0 - 12 | 4 600 | 1/4" | 20 | 2 | 80 | 319 | ||
P2S-10 | 1" | 18 | 0 - 12 | 4 600 | 1/4" | 20 | 3 | 80 | 319 |

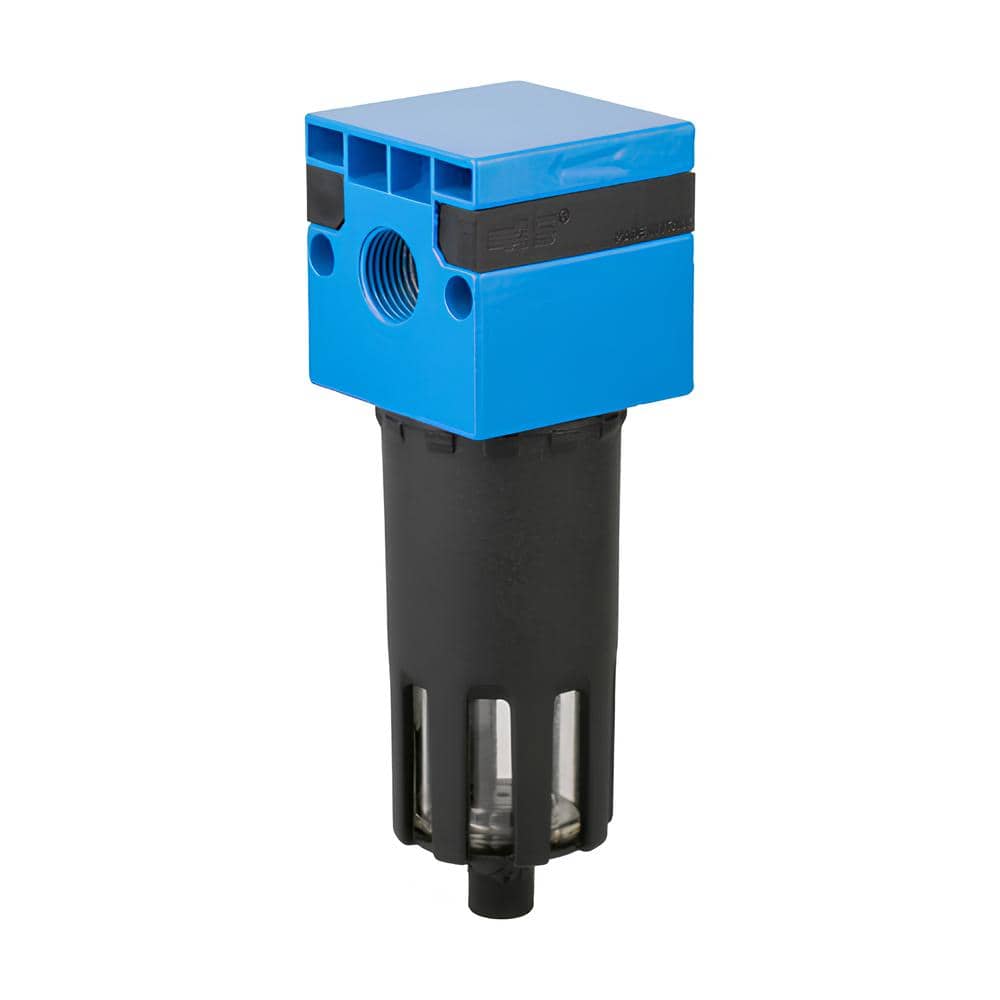

Compressed air filter B2 in metal |
||||||||||
Ordering number |
Thread " |
Flow rate l/min |
Inlet pressure bar |
Container cc |
Size | Filter art |
Dimensions mm |
|||
P2F-14 | 1/4" | 1 750 | 18 | ? | 1 | 20 | 42 | 141 | ||
P2F-38 | 3/8" | 4 300 | 18 | ? | 2 | 20 | 60 | 185 | ||
P2F-12 | 1/2" | 4 300 | 18 | ? | 2 | 20 | 60 | 185 | ||
P2F-34 | 3/4" | 11 000 | 18 | ? | 3 | 20 | 80 | 235 | ||
P2F-10 | 1" | 11 000 | 18 | ? | 3 | 20 | 80 | 235 |
Compressed air microfilter B2 in metal |
||||||||||
Ordering number |
Thread " |
Flow rate l/min |
Inlet pressure bar |
Container cc |
Size | Filter art |
Dimensions mm |
|||
P2FM-14 | 1/4" | 1 750 | 18 | ? | 1 | 0,01 | 42 | 141 | ||
P2FM-38 | 3/8" | 4 300 | 18 | ? | 2 | 0,01 | 60 | 185 | ||
P2FM-12 | 1/2" | 4 300 | 18 | ? | 2 | 0,01 | 60 | 185 |

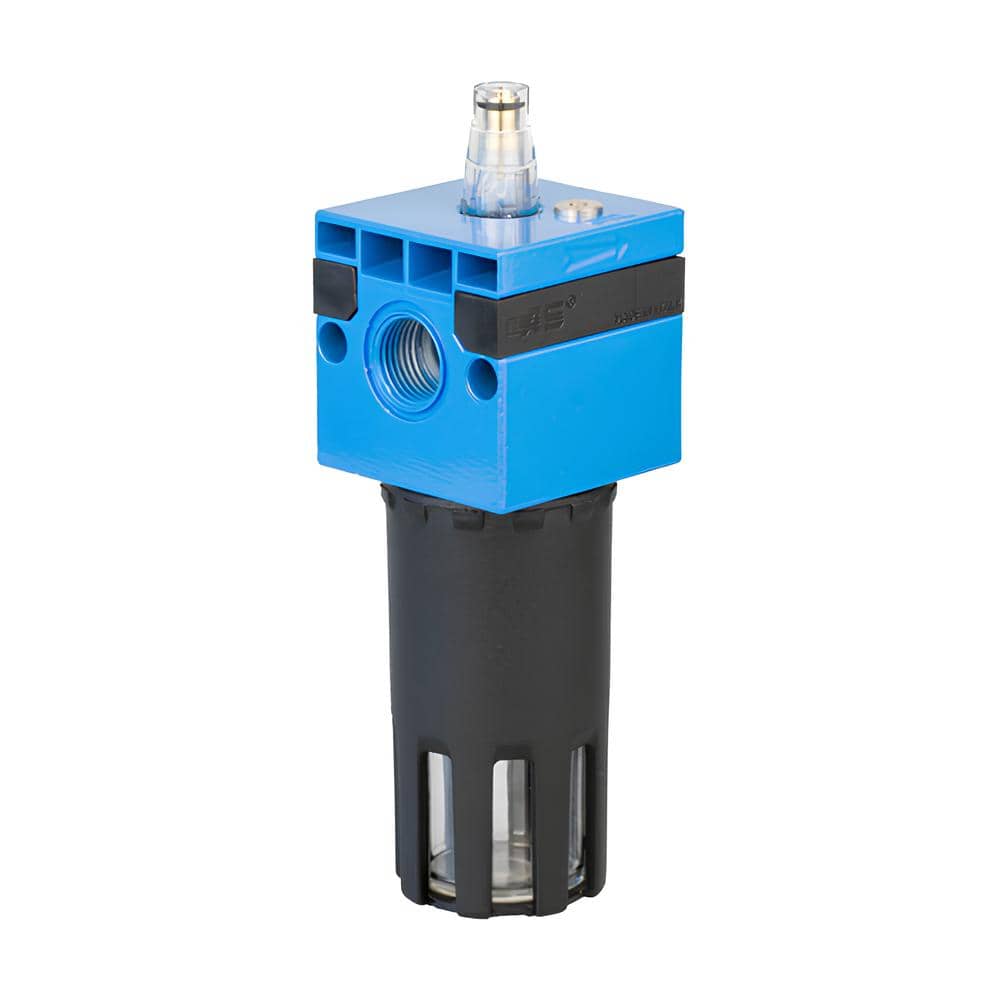

Compressed air lubricator B2 in metal |
|||||||||
Ordering number |
Thread " |
Flow rate l/min |
Inlet pressure bar |
Container cc |
Size | Dimensions mm |
|||
P2L-14 | 1/4" | 1 700 | 18 | ? | 1 | 42 | 155 | ||
P2L-38 | 3/8" | 4 500 | 18 | ? | 2 | 260 | 197 | ||
P2L-12 | 1/2" | 4 500 | 18 | ? | 2 | 60 | 197 | ||
P2L-34 | 3/4" | 16 000 | 18 | ? | 3 | 80 | 270 | ||
P2L-10 | 1" | 16 000 | 18 | ? | 3 | 80 | 270 |

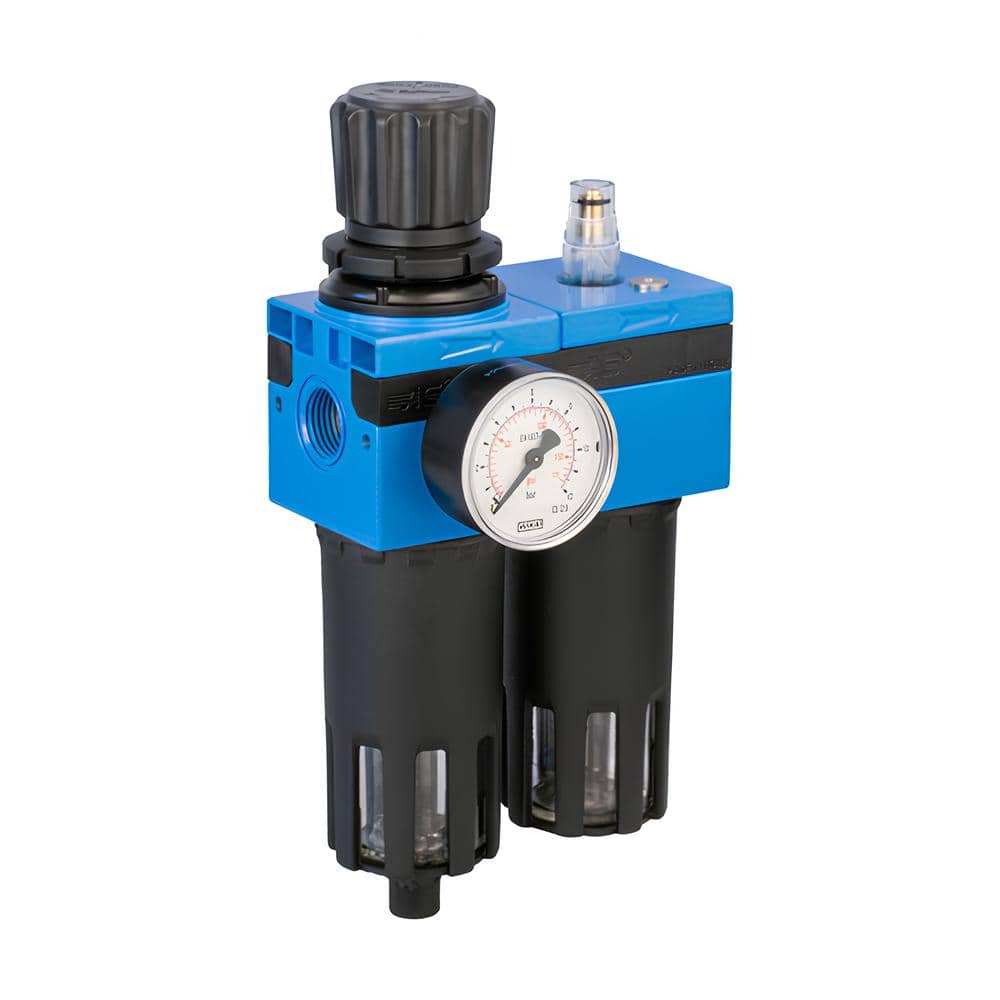

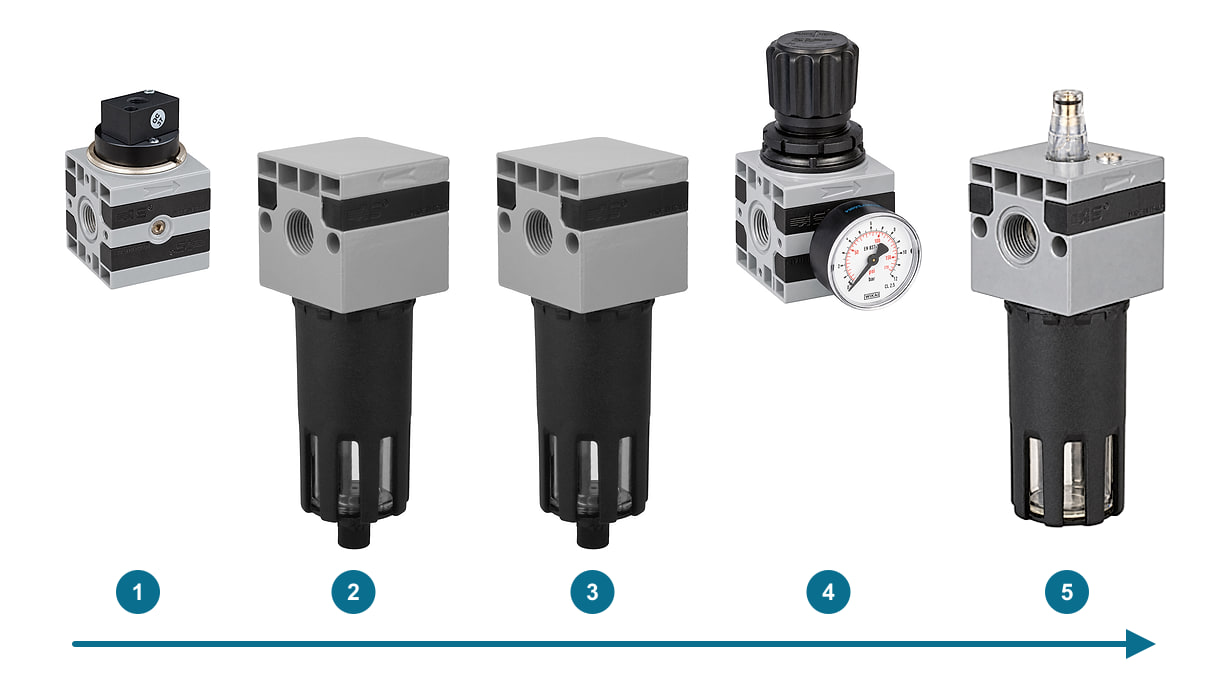

Compressed air treatment unit B2 in metal |
||||||||||||
Ordering number |
Thread " |
Inlet pressure bar |
Extent bar |
Flow rate l/min |
Manometer thread " |
Filter art |
Size | Dimensions mm |
||||
P2U-14 | 1/4" | 18 | 0 - 12 | 700 | 1/8" | 20 | 1 | 84 | 42 | 184 | ||
P2U-38 | 3/8" | 18 | 0 - 12 | 2 500 | 1/8" | 20 | 2 | 120 | 60 | 245 | ||
P2U-12 | 1/2" | 18 | 0 - 12 | 2 500 | 1/8" | 20 | 2 | 120 | 60 | 245 | ||
P2U-34 | 3/4" | 18 | 0 - 12 | 4 600 | 1/4" | 20 | 3 | 160 | 80 | 319 | ||
P2U-10 | 1" | 18 | 0 - 12 | 4 600 | 1/4" | 20 | 3 | 160 | 80 | 319 |

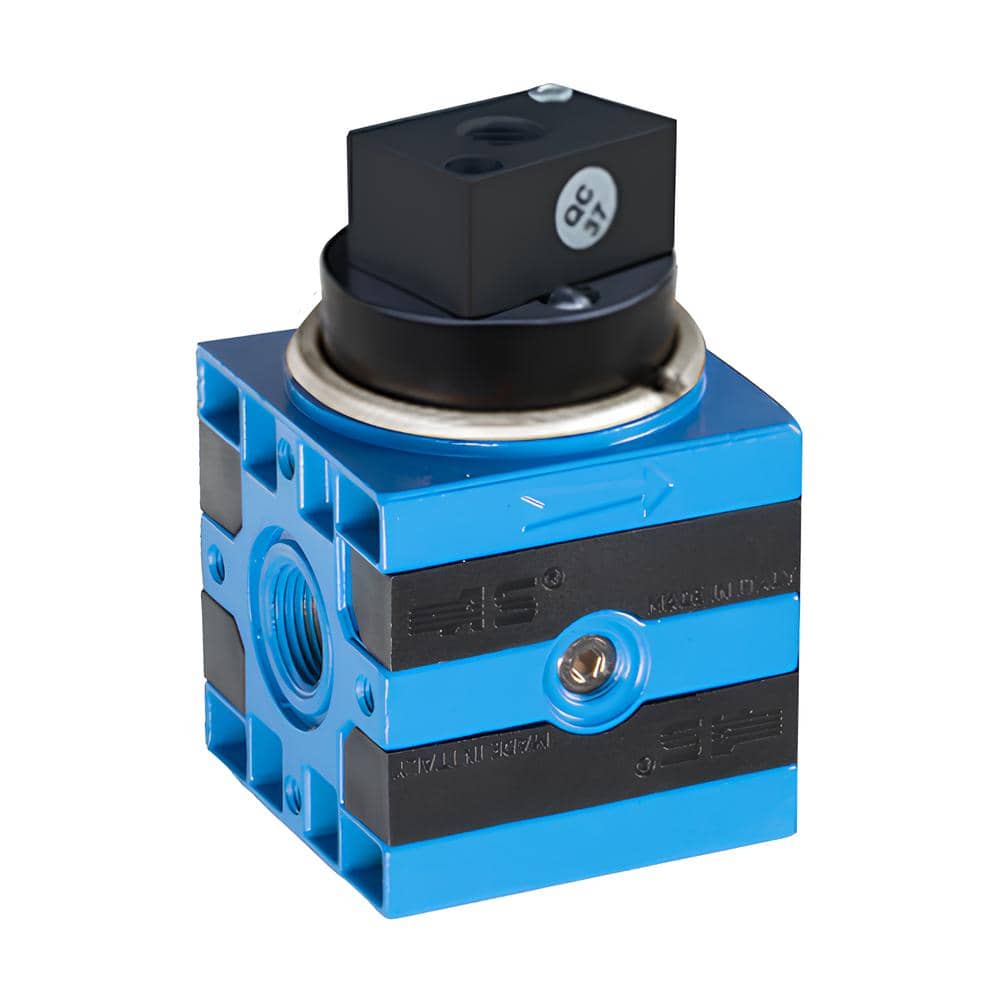

Compressed air shut-off valve B2 in metal |
||||||||
Ordering number |
Thread " |
Inlet pressure bar |
Flow rate l/min |
Size | Dimensions mm |
|||
B2V-12 | 1/2" | 18 | 3 000 | 2 | 60 | 90 |
Fixing angle B2 |

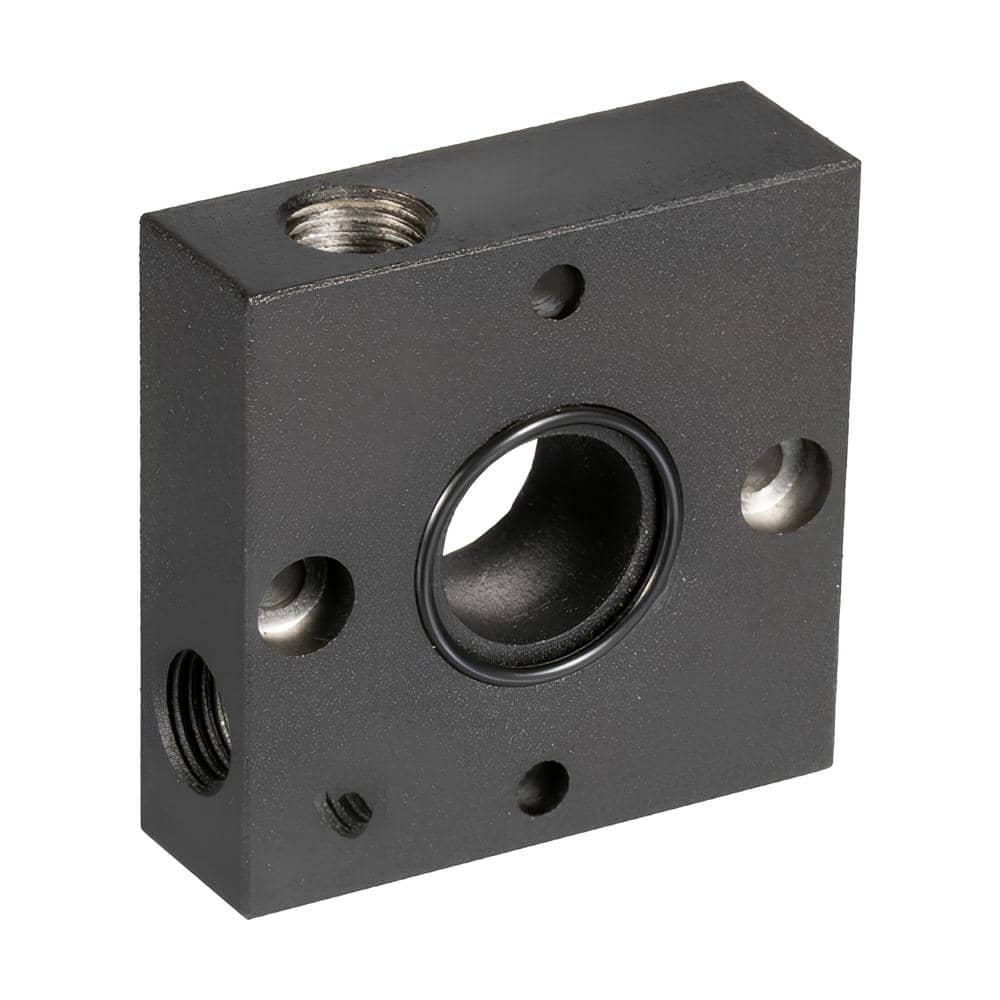

B2CK branching modules |
||||||
Ordering number |
Size | Dimension | Ordering number |
Size | Size | ||
B2UR-1 | 1 | 1/4" | B2CK-1 | 1 | 1/4" | ||
B2UR-2 | 2 | 3/8" - 1/2" | B2CK-2 | 2 | 3/8" - 1/2" | ||
B2UR-3 | 3 | 3/4" - 1" | B2CK-3 | 3 | 3/4" - 1" | ||

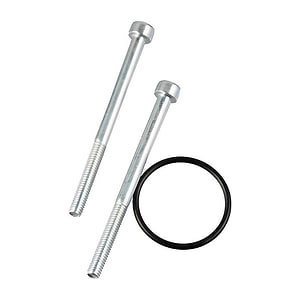

B2CK-1 | Connection set of 2 modules - size 1 - 1/4" | ||||||
B2CK-2 | Connection set of 2 modules - size 2 - 3/8" - 1/2" | ||||||
B2CK-3 | Connection set of 2 modules - size 3 - 3/4" - 1" | ||||||
B2FD | Replacement float skimmer for B2F filters |
Bestsellers
Connection kit allowing the connection of two components from the B2 series of treatment units such as regulator, filter, lubricator of size 1.
Connection kit allowing the connection of two components from the B2 series of treatment units such as regulator, filter, lubricator of size 2.
Air pressure regulator in metal design up to 18 bar. Compressed air regulator with a flow rate of 2,600 l/min in size 2 1/2" thread. Regulation range 0 - 12 bar. Application...

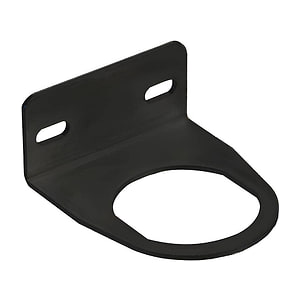

Fixing angle for mounting of metal compressed air treatment units B2 in size 2 for threads 3/8" - 1/2". Inmade of black painted steel.
Mounting angle for mounting miniature P2 compressed air treatment units in 1/4" size. Inmade of black painted steel.
Metal filter up to 18 bar with 20 µm cartridge for a flow rate of 4 300 l/min in size 2 with 1/2" thread. Application mainly in industry, laboratory, measuring and control...
Microfilter in metal design up to 18 bar with 0.01 µm liner, flow rate 4 300 l/min in size 2 with 3/8" thread atdesigned for very gentle removal of solid dirt, water and oil...
Metal grease nipples up to 18 bar with a flow rate of 16,000 l/min in size 3 with 1" thread for effective oil mist doses for lubricating pneumatic tools or drives on production...
Microfilter in metal design up to 18 bar with 0.01 µm liner, flow rate 4 300 l/min in size 2 with 1/2" thread atdesigned for very gentle removal of solid dirt, water and oil...

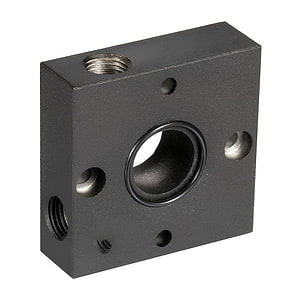

Hub module size 2 air handling units - B2 allow air sampling with certain parameters inside the modular series. Tapping output via 4 x 1/4" thread. Mthe possibility of taking...
Air pressure regulator with metal filter up to 18 bar. Compressed air regulator with a flow rate of 2,600 l/min in size 2 1/2" thread. Regulation range 0 - 12 bar. Filtration...
Air pressure regulator with metal filter up to 18 bar. Compressed air control with 850 l/min flow rate in 1 thread 1/4" size. Regulation range 0 - 12 bar. Filtration capacity 20...
Complete unit in metal design up to 18 bar. Regulation, filtration, lubrication of compressed air with a flow rate of 2,500 l/min in size 2 with 1/2" thread. Regulation range 0...

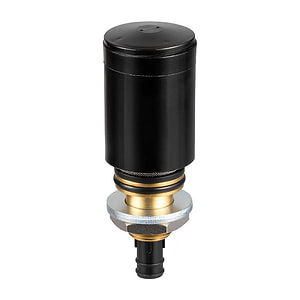

B2FD float release. Allows automatic condensate discharge from the filter. Udesigned for all filter sizes from the B2F and BF2M series.Pconnection via a 6 mm hose barb.
