Single-acting circular cylinder MS 20 mm
Code: 20/10MS 20/25MS 20/50MS Choose variantRelated products
Product detailed description

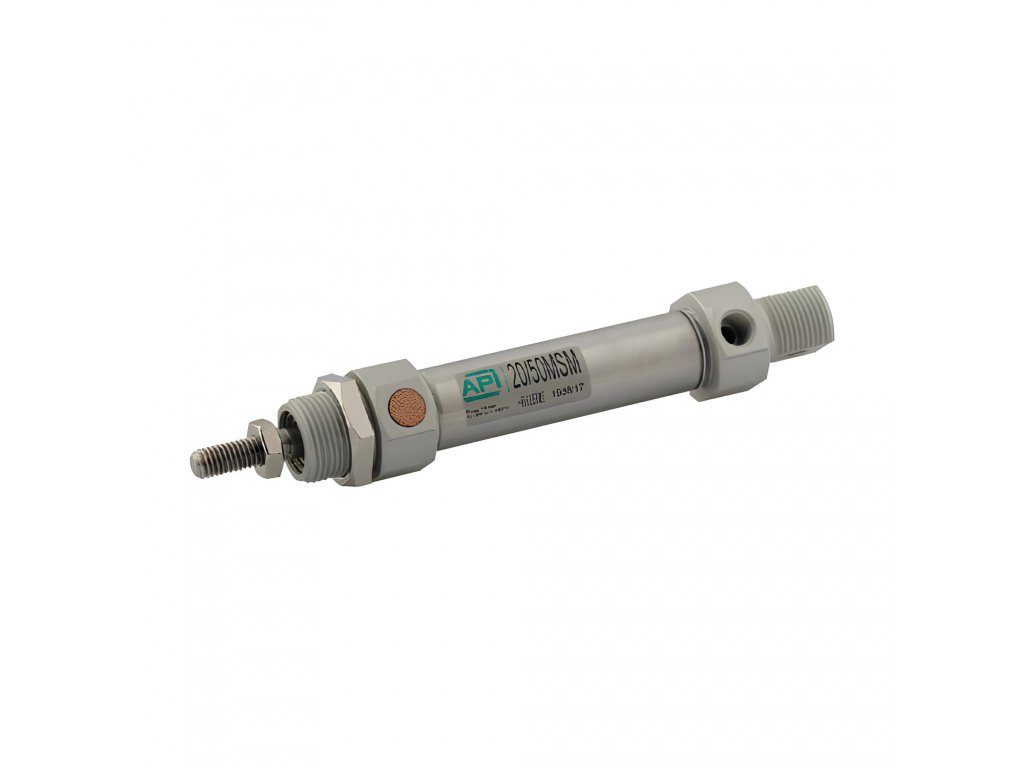

Single-acting circular cylinder - 20/...MS
- diameter 20 mm
- strokes 10, 25 , 50 mm
- connection using M5 thread
- pressure 10 bar
- made of aluminium, stainless steel and brass
Additional parameters
| Category: | MS and MSM single-acting circular cylinders |
|---|---|
| Version: | Single acting cylinders |
| Pressure: | 10 bars |
| Connecting: | 1/8" |
| Magnet: | without magnet |
| Piston rod material: | Stainless steel AISI303 |
| Piston material: | Brass |
| Profile material: | Stainless steel AISI304 |
| Lid material: | Aluminium |
| Average: | 20 mm |
| Temperature: | -30/+80°C |
| Seals: | PU |
| Cylinder thrust: | 148 N |
| Cylinder type: | Circular |
| Stroke selection: | 10, 25, 50 mm |
| Connecting rod thread: | M8 |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Advanced Pneumatic Industries - Pneumatic components for automation technology
A wide range of products complements our extensive experienceOne of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs. |
 |
 |
Quality certificate at a good priceFor all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses. |
The range of products offered by API is brought to you by our company Air Compressors here.
