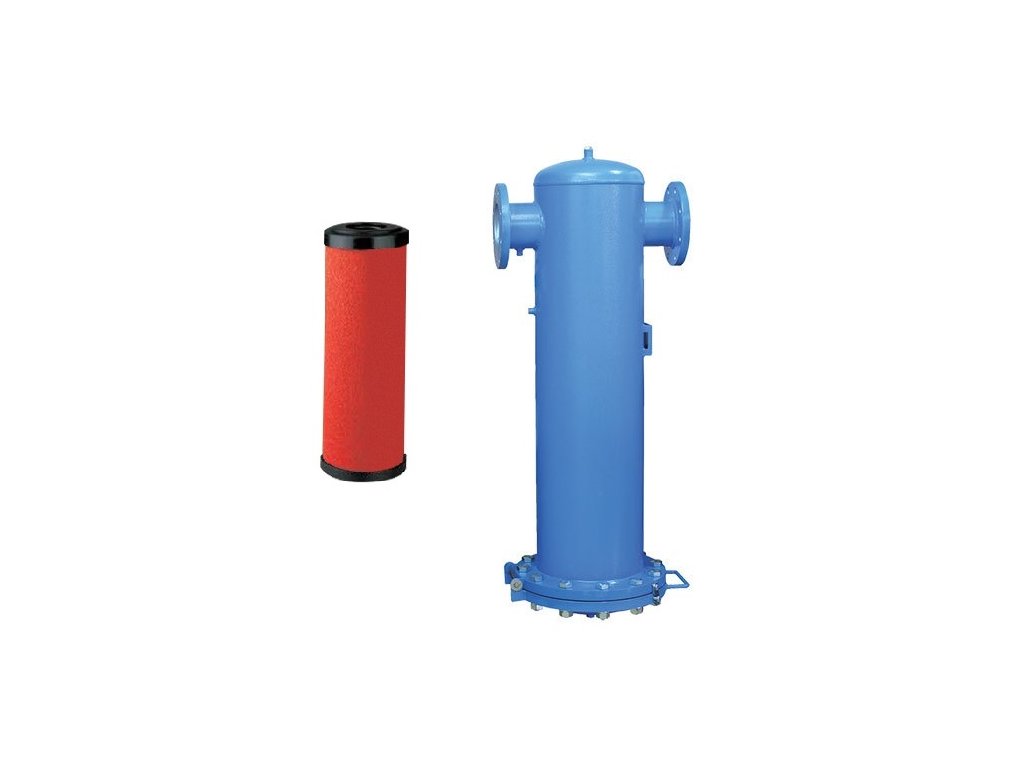

Flange microfilter BFS-0300
Related products

The BFS microfiltration insert is used to remove mechanical impurities and oil from compressed air. Borosilicate microfibre insert with a filtration capacity of up to 0.01 μm....

The BFP basic filter cartridge is used to remove mechanical impurities from compressed air. Acrylic fibre and cellulose liner with a filtration capacity of up to 3 μm. Working...

The BFM pre-filter insert is used to remove mechanical impurities and oil from the compressed air. Borosilicate microfibre insert with a filtration capacity of up to 0.1 μm....

The BFR dust filter insert is used to remove mechanical impurities from compressed air. Acrylic fibre and cellulose liner with a filtration capacity of up to 1 μm. Working...

The BFA microfiltration insert is used to remove mechanical impurities and oil from compressed air. Borosilicate microfibre and activated carbon liner with filtration capacity...

The BFB filter insert is used to remove the largest mechanical impurities from the compressed air. Sintered bronze insert with filtration capacity up to 15 μm. Working pressure...
Flange filters BFS-0300 - microfiltration up to 0,01 um
- filters designed to effectively remove solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
- welded carbon steel body complying with PED 97/23ES, flange connection
- operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
- filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
- scope of delivery - filter body and filter cartridge, without condensate drain - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Technical parameters
Category: | Compressed air microfilters BFS |
---|---|
Version: | Microfilter |
Pressure: | 16 bar (16 atm, 232 PSI, 1,6 MPa) |
Connecting: | flange DN100 |
Dimensions: | 1340 x 560 x 1780 x 324 x 227 mm |
Certification: | ISO 8573-1 (IUTA), PED 97/23/CE |
Filtration: | 0.01 µm |
Filter insert: | BFS-0240V |
Material: | Carbon steel |
Condensate discharge: | Without release |
Number of inserts: | 2 |
Working temperature: | +1.5 / +65 °C |
Flow: | 53 l/min (3,15 m³/h, 1,8532 CFM) |
Residual oil: | <0,01 mg/m³ |
Quality class - oils: | 1 |
Quality class - solid impurities: | 1 |
