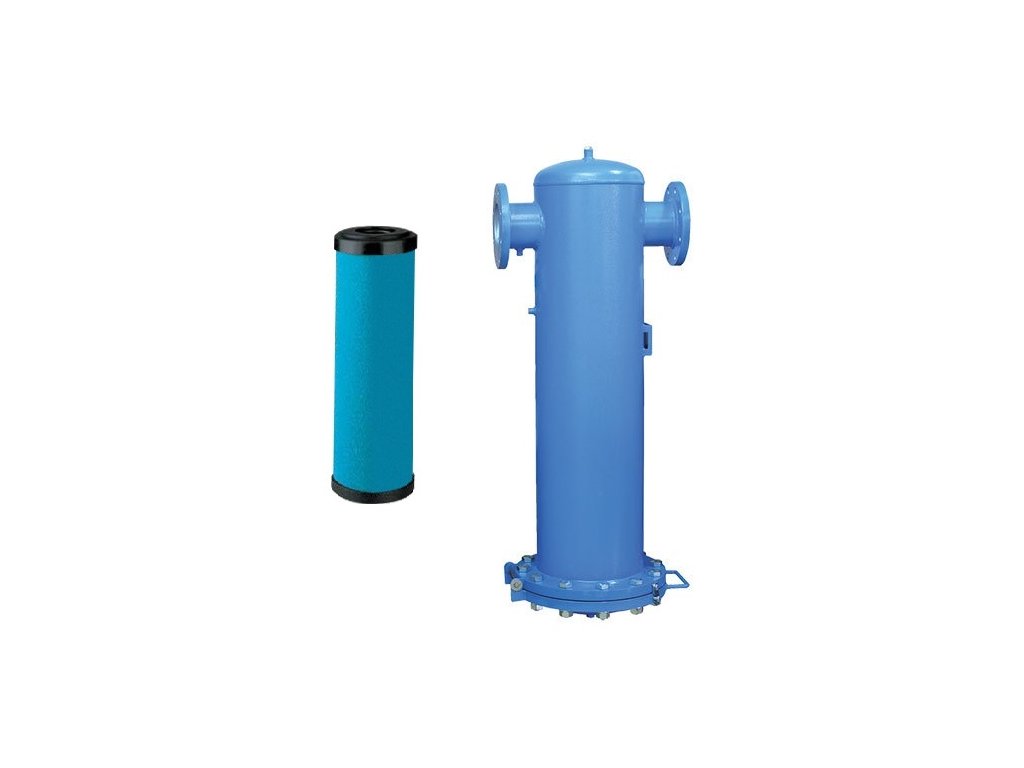

Flange dust filter BFR-0240

Code: BFR-0240

Not rated

Brand: OMEGA AIR

91 169 Kč –2 %

91 169 Kč –2 % 89 345 Kč / pcs 73 839 Kč excl. VAT

Delivery to: 11.12.2024

The filters are used to remove the smallest mechanical impurities from compressed air up to 1 um according to ISO 8573-1 class 3. Connection by flange with DN80 clearance. Designed for flow rates up to 28,000 l/min. Special corrosion-preventing coating for long filter life made of acrylic fibre and cellulose. Automatic condensate drain must be ordered separately.

Detailed information

Filter insert for BFA activated carbon filter

Original parts

8 707 Kč –2 %

Filter insert for BFA activated carbon filter

7 052 Kč excl. VAT

8 533 Kč

The BFA microfiltration insert is used to remove mechanical impurities and oil from compressed air. Borosilicate microfibre and activated carbon liner with filtration capacity...

Code: BFA-0240V

Original parts

11 564 Kč –2 %

Filter insert for coarse filter BFB

9 366 Kč excl. VAT

11 333 Kč

The BFB filter insert is used to remove the largest mechanical impurities from the compressed air. Sintered bronze insert with filtration capacity up to 15 μm. Working pressure...

Code: BFB-0240V

Original parts

8 707 Kč –2 %

Filter insert for basic BFP filter

7 052 Kč excl. VAT

8 533 Kč

The BFP basic filter cartridge is used to remove mechanical impurities from compressed air. Acrylic fibre and cellulose liner with a filtration capacity of up to 3 μm. Working...

Code: BFP-0240V

Original parts

8 707 Kč –2 %

Filter insert for BFR dust filter

7 052 Kč excl. VAT

8 533 Kč

The BFR dust filter insert is used to remove mechanical impurities from compressed air. Acrylic fibre and cellulose liner with a filtration capacity of up to 1 μm. Working...

Code: BFR-0240V

Original parts

8 707 Kč –2 %

Filter insert for BFS microfilter

(4 pcs)

7 052 Kč excl. VAT

8 533 Kč

The BFS microfiltration insert is used to remove mechanical impurities and oil from compressed air. Borosilicate microfibre insert with a filtration capacity of up to 0.01 μm....

Code: BFS-0240V

Original parts

8 707 Kč –2 %

Filter insert for BFM prefilter

(4 pcs)

7 052 Kč excl. VAT

8 533 Kč

The BFM pre-filter insert is used to remove mechanical impurities and oil from the compressed air. Borosilicate microfibre insert with a filtration capacity of up to 0.1 μm....

Code: BFM-0240V

Show all related products

Product detailed description

Flange filters BFR-0240 - filtration up to 1 um

filters designed to effectively remove solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
welded carbon steel body complying with PED 97/23ES, flange connection
operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
scope of delivery - filter body and filter cartridge, without condensate drain - order separately
reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us

Additional parameters

Category:	BFR dust filters
Version:	Dust filter
Pressure:	16 bar
Connecting:	flange DN80
Dimensions:	1170 x 450 x 1645 x 219 x 177 mm
Certification:	ISO 8573-1 (IUTA), PED 97/23/CE
Filtration:	1 um
Filter insert:	BFR-0240V
Material:	Carbon steel
Condensate discharge:	Without release
Number of inserts:	1
Working temperature:	+1.5 / +65 °C
Flow:	28,000 l/min
Residual oil:	<1 mg/m³
Quality class - oils:	3
Quality class - solid impurities:	3

Tip Sellout

5 705 Kč –2 %

Basic filter AFP 1" - 3,300 l/min

(3 pcs)

4 621 Kč excl. VAT

5 591 Kč

Basic AFP filters according to ISO 8573.1 with a filtration capacity of 3 um and an efficiency of 99.9%. FPRO filters are used to remove the largest mechanical impurities from...

Code: AFP-33

Tip Sellout

14 214 Kč –2 %

Pre-filter AFM 2" - 16,600 l/min

(4 pcs)

11 512 Kč excl. VAT

13 930 Kč

AFM filters are used to remove the largest mechanical impurities from compressed air up to 0.1 um according to ISO 8573-1 class 2. Body with easily removable container and...

Code: AFM-170

Tip Sellout

5 705 Kč –2 %

Pre-filter AFM 1" - 3,300 l/min

(2 pcs)

4 621 Kč excl. VAT

5 591 Kč

AFM filters are used to remove the largest mechanical impurities from compressed air up to 0.1 um according to ISO 8573-1 class 2. Body with easily removable container and...

Code: AFM-33

Tip Sellout

14 214 Kč –2 %

Microfilter AFS 2" - 16,600 l/min

(8 pcs)

11 512 Kč excl. VAT

13 930 Kč

The AFS microfilter is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Body with easily removable container...

Code: AFS-170

Tip Sellout

5 705 Kč –99 %

Submicrofilter AFA 1" - 3,300 l/min

1 Kč excl. VAT

1 Kč

The AFA activated carbon filter no longer removes the impurities that the AFS microfilter removed before. Removes oil mist according to ISO 8573-1 class 1. Body with easily...

Code: AFA-33

Tip Sellout

5 705 Kč –2 %

Dust filter AFR 1" - 3,300 l/min

(2 pcs)

4 621 Kč excl. VAT

5 591 Kč

The filters are used to remove the largest mechanical impurities from compressed air up to 1 um according to ISO 8573-1 class 3. Body with easily removable container and...

Code: AFR-33

Tip Sellout

6 596 Kč –2 %

Dust filter AFR 1" - 5,580 l/min

(6 pcs)

5 342 Kč excl. VAT

6 464 Kč

The filters are used to remove the largest mechanical impurities from compressed air up to 1 um according to ISO 8573-1 class 3. Body with easily removable container and...

Code: AFR-60

Show all alternative products

Be the first who will post an article to this item!

Add a rating

Be the first who will post an article to this item!

Add a comment

Alfa and Omega from Slovenia

Based in the Slovenian capital, Ljubljana, is a company specializing in compressed air treatment, production of industrial filters and filter cartridges, separators, or special membrane dryers, and other products. Omega Air was founded in 1988 as a family business and soon secured an essential place in its field. Over the years, with increasing production, the number of Omega Air employees also grew, and today the company employs more than 250 people.

Omega's Products Find Use Everywhere

The products of Omega Air are characterized by a wide range of applications. Their products are used in heavy industry as well as by private entities. The Slovenian footprint is noticeable in industrial areas such as electronics, gastronomy, pharmacy, automotive, or even in the chemical industry sector. The company's main product is special filters, which are exported worldwide.

No Newcomer in the Field

Omega Air also boasts several innovations and patents of its own, which are developed in its R&D department. For its innovative solutions, the company has been awarded several times at the International Engineering Fair, traditionally held in Hannover, Germany.

The offered range of Omega Air products is brought to you by our company Kompresory vzduchotechnika below.

What Omega Air Produces:

special industrial filters
filter cartridges
electronic condensate drains
separators
dryers (adsorption, membrane)
active carbon columns
