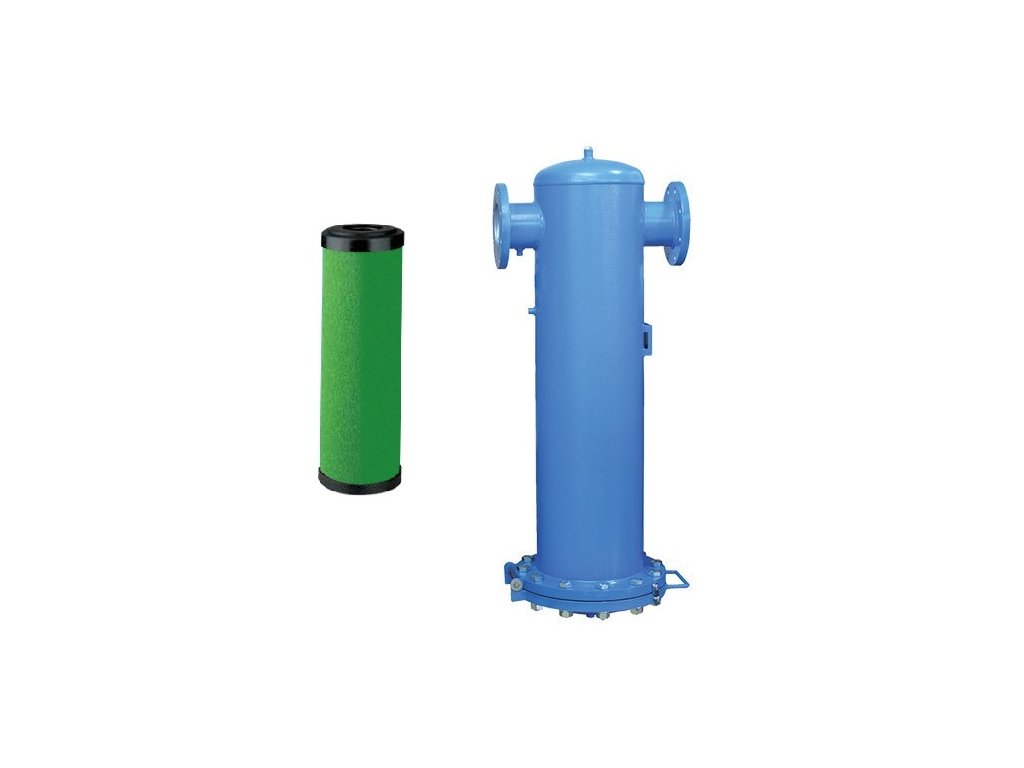

    Flange prefilter BFM-0600

    Code: BFM-0600
    Not rated
    Brand: OMEGA AIR
    223 506 Kč –2 %
    Flange prefilter BFM-0600
    223 506 Kč –2 % 219 036 Kč / pcs 181 021 Kč excl. VAT
    up to 14 days
    Delivery to:
    18.10.2024
    The filters are used to remove the smallest mechanical impurities from compressed air up to 0.1 um and oil according to ISO 8573-1 class 2. Connection by flange with DN150 clearance. Designed for flow rates up to 105,000 l/min. Special corrosion-preventing coating for long life of the borosilicate microfibre filter. Automatic condensate drain must be ordered separately.

    Detailed information

    Related products

    Filter insert for basic BFP filter
    Original parts
    8 707 Kč –2 %
    Filter insert for basic BFP filter
    up to 14 days
    7 052 Kč excl. VAT
    8 533 Kč

    The BFP basic filter cartridge is used to remove mechanical impurities from compressed air. Acrylic fibre and cellulose liner with a filtration capacity of up to 3 μm. Working...

    Code: BFP-0240V
    Filter insert for BFA activated carbon filter
    Original parts
    8 707 Kč –2 %
    Filter insert for BFA activated carbon filter
    up to 14 days
    7 052 Kč excl. VAT
    8 533 Kč

    The BFA microfiltration insert is used to remove mechanical impurities and oil from compressed air. Borosilicate microfibre and activated carbon liner with filtration capacity...

    Code: BFA-0240V
    Filter insert for BFR dust filter
    Original parts
    8 707 Kč –2 %
    Filter insert for BFR dust filter
    up to 14 days
    7 052 Kč excl. VAT
    8 533 Kč

    The BFR dust filter insert is used to remove mechanical impurities from compressed air. Acrylic fibre and cellulose liner with a filtration capacity of up to 1 μm. Working...

    Code: BFR-0240V
    Filter insert for BFS microfilter
    Original parts
    8 707 Kč –2 %
    Filter insert for BFS microfilter
    Stock (4 pcs)
    7 052 Kč excl. VAT
    8 533 Kč

    The BFS microfiltration insert is used to remove mechanical impurities and oil from compressed air. Borosilicate microfibre insert with a filtration capacity of up to 0.01 μm....

    Code: BFS-0240V
    Filter insert for coarse filter BFB
    Original parts
    11 564 Kč –2 %
    Filter insert for coarse filter BFB
    up to 14 days
    9 366 Kč excl. VAT
    11 333 Kč

    The BFB filter insert is used to remove the largest mechanical impurities from the compressed air. Sintered bronze insert with filtration capacity up to 15 μm. Working pressure...

    Code: BFB-0240V
    Filter insert for BFM prefilter
    Original parts
    8 707 Kč –2 %
    Filter insert for BFM prefilter
    Stock (4 pcs)
    7 052 Kč excl. VAT
    8 533 Kč

    The BFM pre-filter insert is used to remove mechanical impurities and oil from the compressed air. Borosilicate microfibre insert with a filtration capacity of up to 0.1 μm....

    Code: BFM-0240V
    Show all related products Previous product Next product

    Product detailed description

    Flange filters BFM-0600 - microfiltration up to 0,1 um

    • filters designed to effectively remove solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
    • welded carbon steel body complying with PED 97/23ES, flange connection
    • operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
    • filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
    • scope of delivery - filter body and filter cartridge, without condensate drain - order separately
    • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us

    Additional parameters

    Category: BFM compressed air pre-filters
    Version: Prefilter
    Pressure: 16 bar
    Connecting: flange DN150
    Dimensions: 1425 x 620 x 1810 x 368 x 265 mm
    Certification: ISO 8573-1 (IUTA), PED 97/23/CE
    Filtration: 0.1 µm
    Filter insert: BFM-0240V
    Material: Carbon steel
    Condensate discharge: Without release
    Number of inserts: 4
    Working temperature: +1.5 / +65 °C
    Flow: 105,000 l/min
    Residual oil: <0,1 mg/m³
    Quality class - oils: 2
    Quality class - solid impurities: 2
