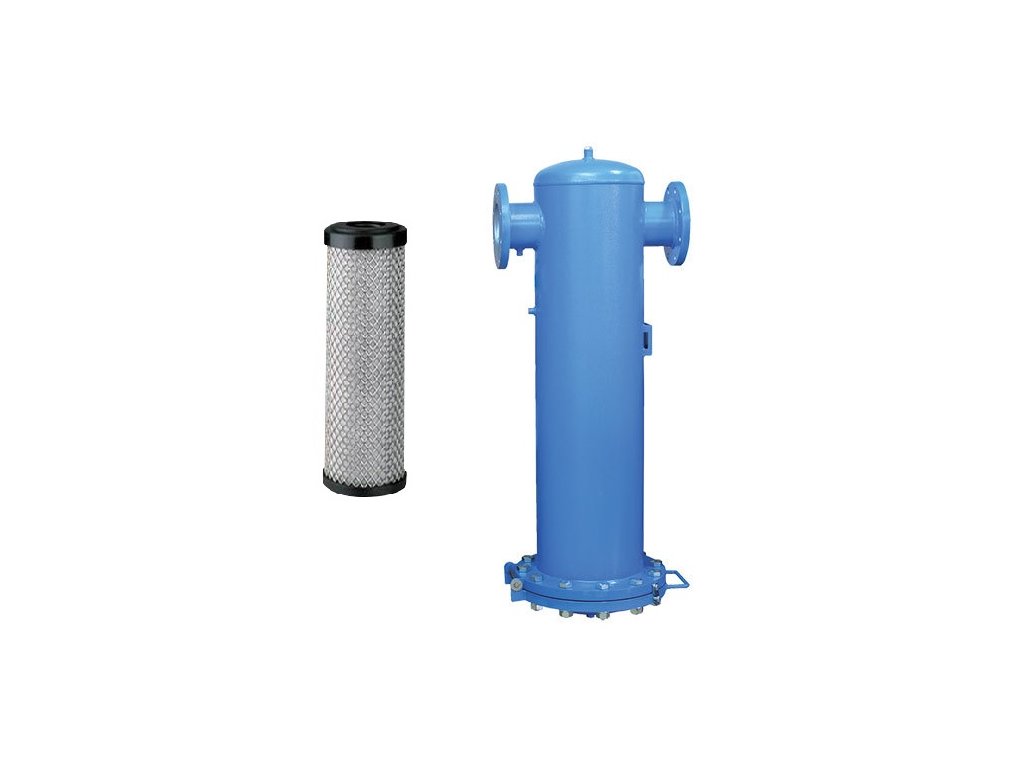

Flange filter with active carbon BFA-0600
Code: BFA-0600
Product detailed description
Flange filters BFA-0600 - activated carbon
- filters designed to effectively remove solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
- welded carbon steel body complying with PED 97/23ES, flange connection
- operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
- filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
- scope of delivery - filter body and filter cartridge, without condensate drain - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Additional parameters
| Category: | Filter and activated carbon BFA, oil 0.005 mg/m3 |
|---|---|
| Version: | Activated carbon |
| Pressure: | 16 bar |
| Connecting: | flange DN150 |
| Dimensions: | 1425 x 620 x 1810 x 368 x 265 mm |
| Certification: | ISO 8573-1 (IUTA), PED 97/23/CE |
| Filtration: | Activated carbon |
| Filter insert: | BFA-0240V |
| Material: | Carbon steel |
| Condensate discharge: | Without release |
| Number of inserts: | 4 |
| Working temperature: | +1.5 / +65 °C |
| Flow: | 105,000 l/min |
| Residual oil: | <0,05 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
