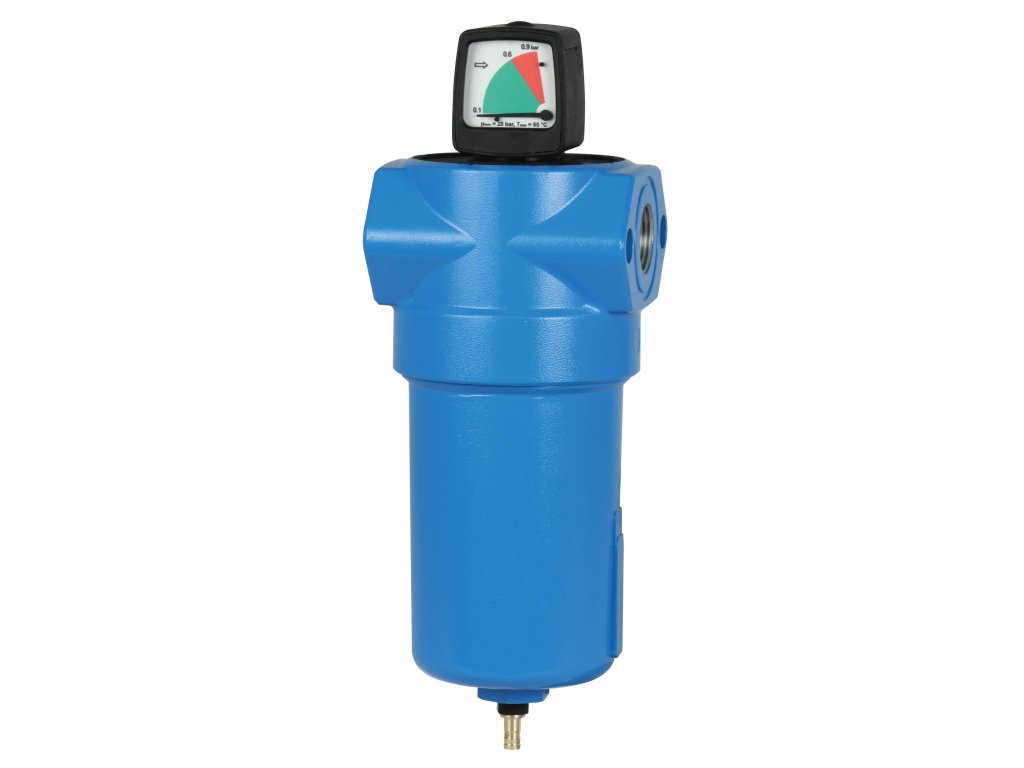

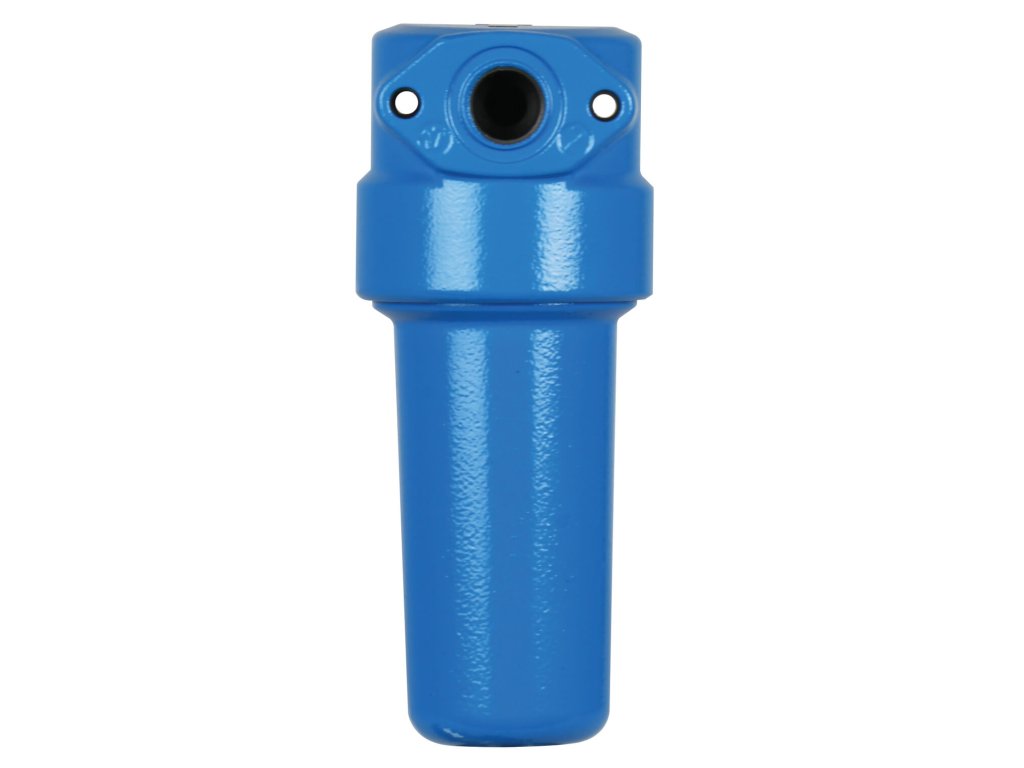

Coarse Filter AAFB - 1" - 3,300 l/min

Code: AAFB-198

Tip

Not rated

Brand: OMEGA AIR

7 432 Kč –2 %

7 432 Kč –2 % 7 283 Kč / pcs 6 019 Kč excl. VAT

Delivery to: 17.03.2025 Delivery offer

AAFB 1" coarse filter for removal of the largest mechanical impurities up to 15 um from compressed air according to ISO 8573-1 class 7. Body with easily removable container and designed for a flow rate of 3,300 l/min. Special coating to prevent corrosion, for long filter life, automatic condensate drainage from the container by means of AOK16B float drain. The residual oil content is greater than 0,01 mg/m3.

Detailed information

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Original parts

2 092 Kč –2 %

Replacement coarse filter cartridge - AAFB-198V

(1 pcs)

1 694 Kč excl. VAT

2 050 Kč

Replacement sintered bronze filter cartridge 15 µm for OMEGA AIR filter AAFB-198. Recommended replacement 12 months or every 4,000 MH and when clogging of the filter cartridge...

Code: AAFB-198V

Original parts

742 Kč –2 %

AF air filter cartridge contamination indicator

(8 pcs)

601 Kč excl. VAT

727 Kč

Simple mechanical device for checking the condition of the filter cartridge. Contributes to reducing power consumption by alerting to high pressure gradients. If the filter...

Code: PDI

Differential manometer filters AF - MDM60

Original parts

2 334 Kč –1 %

Differential manometer filters AF - MDM60

(6 pcs)

1 891 Kč excl. VAT

2 288 Kč

Designed to accurately display the pressure gradient value of the filter cartridge. Dial with coloured fields - red to indicate both wear and tear of the insert. Optimized...

Code: MDA60

mdm40 diferencni manometr indikace filtru

Original parts

1 646 Kč –2 %

Differential manometer filters AF - MDM40

(8 pcs)

1 333 Kč excl. VAT

1 613 Kč

MDM40 - basic version. Magnetic differential pressure gauges for displaying the orientation state of the filter cartridge. Fitted with dial with indicative scale and green/red...

Code: MDM40

Original parts

2 299 Kč –2 %

Differential manometer filters AF - MDM40C

1 862 Kč excl. VAT

2 253 Kč

MDM40C - version with voltage-free electrical contact for remote alarm signalling. Magnetic differential pressure gauges for displaying the orientation state of the filter...

Code: MDM40C

mdm60 diferencni manometr indikace filtru

Sellout Original parts

2 406 Kč –2 %

Differential manometer filters AF - MDM60E

(1 pcs)

1 949 Kč excl. VAT

2 358 Kč

Magnetic differential pressure gauges to indicate the pressure gradient of the filter cartridge. MDM60E - equipped with LED signalling when the insert is dropped. Designed for...

Code: MDM60E

Original parts

1 177 Kč –2 %

Float release AOK16B

(54 pcs)

953 Kč excl. VAT

1 153 Kč

Float valve for condensate discharge from compressed air system working on float principle. Version AOK16B for internal mounting of filter vessels using 1/2" thread.

Code: AOK16B

Original parts

1 335 Kč –2 %

AOK13PA float release

(8 pcs)

1 081 Kč excl. VAT

1 308 Kč

Float-operated condensate drain valve for compressed air systems up to 13 bar. Version AOK13PA for external mounting on the filter body with 1/2" thread.

Code: AOK13PA

Original parts

1 858 Kč –2 %

AOK20B float release

(16 pcs)

1 504 Kč excl. VAT

1 820 Kč

Float-operated condensate drain valve for compressed air systems up to 20 bar. Version AOK20B for external mounting on the filter body with 1/2" thread.

Code: AOK20B

TD16M odpoustec kondenzatu vysokotlak kompresor bar mosaz

New Original parts

3 526 Kč –2 %

Time condensate drain TD16M

(58 pcs)

2 855 Kč excl. VAT

3 455 Kč

Electronic timed condensate drain for compressed air systems up to 16 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...

Code: TD16M

IED elektronicky odpoustec kondenzatu filtru omega air

Original parts

3 694 Kč –2 %

Electronic condensate drain IED

(4 pcs)

2 992 Kč excl. VAT

3 620 Kč

Electronic IEDs are primarily designed to drain condensed water from filter vessels. Equipped with LED indicator and test button. Operating temperature +1,5 °C to +65 °C,...

Code: IED

Original parts

5 905 Kč –2 %

IEDC electronic condensate drain

4 783 Kč excl. VAT

5 787 Kč

The IEDC electronic skimmers with alarm output for remote monitoring and with the possibility of service connection for obtaining operating data from the device are primarily...

Code: IEDC

Original parts

2 775 Kč –1 %

Wall mounting kit for AAF-W1XL filters

(1 pcs)

2 248 Kč excl. VAT

2 720 Kč

Kit for wall mounting and connecting filters. The set consists of two angles that are attached to the edges of the filter and allow subsequent mounting on the wall. Connecting...

Code: AAF-W1XL

Original parts

2 957 Kč –2 %

Wall mounting kit for AAF-W2XL filters

(1 pcs)

2 395 Kč excl. VAT

2 898 Kč

Kit for wall mounting and connecting filters. The set consists of two angles that are attached to the edges of the filter and allow subsequent mounting on the wall. Connecting...

Code: AAF-W2XL

Original parts

3 070 Kč –1 %

Wall mounting kit for AAF-W3XL filters

(1 pcs)

2 487 Kč excl. VAT

3 009 Kč

Kit for wall mounting and connecting filters. The set consists of two angles that are attached to the edges of the filter and allow subsequent mounting on the wall. Connecting...

Code: AAF-W3XL

Original parts

1 580 Kč –2 %

AAF-2XL filter connection kit

(2 pcs)

1 279 Kč excl. VAT

1 548 Kč

Set for connecting 2 filters of the OMEGA AIR AAF series in sizes 198 - 780. Fast and elegant installation that everyone can handle.

Code: AAF-2XL

Show all related products

Product detailed description

Coarse Filter for compressed air up to 15 um - AAFB-198

Hrubá filtrace stlačeného vzduchu kompresoru do 15 um

sintered bronze 15 µm
use as a coarse pre-filter for solid impurities
filtration according to ISO 8573-1 class 7-x-x
filter material: sintered brass
condensate drainage from the vessel by float drain AOK16B
operating temperature +1.5 to +65 °C
working pressure 16 bar
reference flow conditions: ambient temperature +20 °C, inlet air temperature +35 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation.

Filtrační stupně stlačeného vzduchu ISO 8573-1

Jednotlivé filtrační vložky filtrů stlačeného vzduchu AAF OMEGA AIR

Schéma filtru stlačeného vzduchu od kompresoru AAF

Příslušenství k filtrům stlačeného vzduchu AAF do 16 bar od kompresoru

Additional parameters

Category:	AAFB compressed air coarse filters
Version:	Coarse filter
Pressure:	16 bar
Connecting:	1"
Dimensions:	(A)261 x (B)125 x (C)37 x (D)160 mm
Certification:	CE-PED-H, ISO 8573-1 (IUTA)
Filtration:	15 um
Filter insert:	AAFB-198V
Material:	Aluminium
Condensate discharge:	Automatic
Working temperature:	+1.5 / +65 °C
Flow:	3,300 l/min
Residual oil:	>0.01 mg/m³
Quality class - oils:	-
Quality class - solid impurities:	7
