    AAFP Basic Compressed Air Filters

    Základní filtry stlačeného vzduchu AAFP
    • pre-filter 3 µm
    • use as a pre-filter for solid dirt and larger dust particles
    • filtration according to ISO 8573-1 class 6-x-x
    • filter material: acrylic. phibres, cellulose
    • condensate drainage from the vessel by float drain AOK16B
    • operating temperature +1.5 to +65 °C
    • working pressure 16 bar
    • reference flow conditions: ambient temperature +20 °C, inlet air temperature +35 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation - please contact us

    Basic filtration of compressed air with AAFP filters - 3 um
    Ordering
    number    		 Flow Pressure Thread Dimensions mm Weight Filtration
    liner
    l/min m³/h bar " and b c d kg
    AAFP-25 417 25 16 1/4" 145 73 18 50 0,42 AAFP-25V
    AAFP-30 500 30 16 3/8" 145 73 18 50 0,42
    AAFP-35 583 35 16 1/4" 189 88 21 60 0,72 AAFP-35V
    AAFP-60 1 000 60 16 3/8" 189 88 21 60 0,60
    AAFP-78 1 300 78 16 1/2" 189 88 21 80 0,60 AAFP-78V
    AAFP-120 2 000 120 16 3/4" 257 88 21 150 0,70 AAFP-120V
    AAFP-198 3 300 198 16 1" 261 125 37 160 1,20 AAFP-198V
    AAFP-335 5 583 335 16 1" 361 125 37 250 1,60 AAFP-335V
    AAFP-510 8 500 510 16 1 1/2" 461 125 37 350 1,90 AAFP-510V
    AAFP-780 13 000 780 16 1 1/2" 641 125 37 530 2,60 AAFP-780V
    AAFP-1000 16 667 1 000 16 2" 696 164 50 520 5,70 AAFP-1000V
    AAFP-1500 25 000 1 500 16 2" 943 164 50 770 7,60 AAFP-1500V
    AAFP-1680 28 000 1 680 16 2 1/2" 943 164 50 770 7,30
    AAFP-2160 36 000 2 160 16 3" 801 242 60 630 16,70 AAFP-2160V
    AAFP-2760 46 000 2 760 16 3" 998 242 60 780 21,30 AAFP-2760V
    Reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation.

    Correction factor - Working pressure
    Working pressure bar 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
    Correction factor 0,38 0,50 0,63 0,75 0,88 1,00 1,13 1,25 1,38 1,50 1,63 1,75 1,88 2,00 2,13

    #ShowMore#

    Filtrační stupně stlačeného vzduchu ISO 8573-1

    Jednotlivé filtrační vložky filtrů stlačeného vzduchu AAF OMEGA AIR

    Schéma filtru stlačeného vzduchu od kompresoru AAF

    Bestsellers

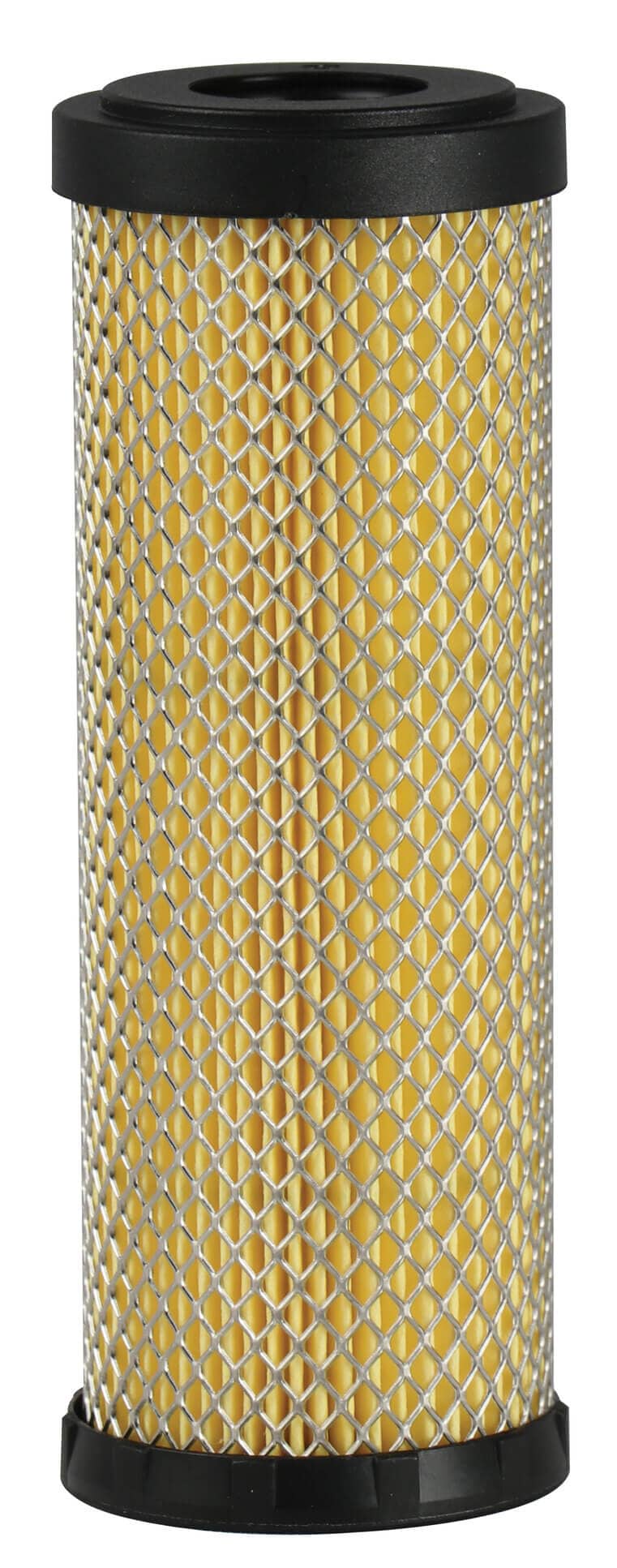

    vlozka aafp
