    Hose clamps EW deformation design with eyelets

    Deformační hadicová spona EWD
    • deformation clamps with one or two lugs for fast and inexpensive fastening of smaller hose diameters
    • non-detachable connection method, no protruding sharp strip to minimise risk of injury
    • design W 1 - galvanized steel
    • version W4 - stainless steel 1.4301
    • hose clamps designed especially for quick and inexpensive serial assembly of hoses with small diameters

    Hose clamps EWS4 - with one eyelet
    Ordering
    number    		 Extent
    mm    		 Tape width
    mm
    EWS4-04 3,3 - 4,1 4
    EWS4-05 4,1 - 5,1 4
    EWS4-06 5,1 - 6,1 4
    EWS4-07 6,1 - 7,0 5
    EWS4-08 6,8 - 8,0 5
    EWS4-10 8,1 - 9,5 6
    EWS4-11 9,1 - 10,5 6
    EWS4-12 10,1 - 11,8 6
    EWS4-13 10,8 - 12,8 6
    EWS4-14 11,8 - 13,8 6
    EWS4-15 13,0 - 15,0 6
    EWS4-16 13,8 - 16,0 6
    EWS4-17 14,6 - 16,8 6
    EWS4-18 15,3 - 17,5 6
    EWS4-20 17,2 - 19,5 6
    EWS4-21 18,7 - 21,0 7
    EWS4-22 19,5 - 21,8 7
    EWS4-24 21,0 - 23,5 7
    EWS4-26 23,6 - 26,3 7
    EWS4-27 24,1 - 27,0 7
    EWS4-31 27,2 - 30,7 7

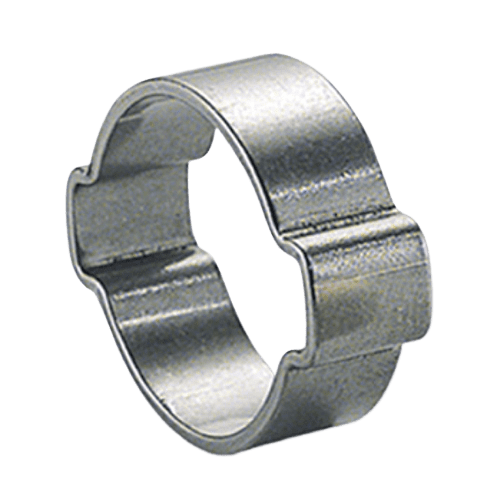

    Hose clamps EWD1 - with two lugs
    Ordering
    number    		 Extent
    mm    		 Tape width
    mm    		 Tape thickness
    mm
    EWD1-07 5 - 7 6 0,6
    EWD1-09 7 - 9 6 0,8
    EWD1-11 9 - 11 6,5 0,8
    EWD1-12 10 - 12 6,5 0,9
    EWD1-13 11 - 13 6,5 0,9
    EWD1-15 13 - 15 7 1,0
    EWD1-18 15 - 18 7,5 1,2
    EWD1-20 17 - 20 7,5 1,2
    EWD1-21 18 - 21 8 1,2
    EWD1-23 20 - 23 8 1,3
    EWD1-25 22 - 25 8,5 1,4
    EWD1-27 23 - 27 8,5 1,4
    EWD1-28 25 - 28 9 1,4
    EWD1-31 28 - 31 9 1,4
    EWD1-34 31 - 34 9,5 1,4
    EWD1-37 34 - 37 9,5 1,6
    EWD1-40 37 - 40 10 1,6

    Pliers for deformation clips
    Ordering
    number    		 Description
    ZOSZ Pliers for mounting deformation clamps

    Bestsellers

    ews4 spona hadicova
    19 Kč –5 %
    Hose clamp EWS4 - 13 mm
    Stock (25 pcs)
    Code: EWS4-13
    Was: 19 Kč  (–5 %)
    18 Kč
    (15 Kč excl. VAT)
    Hose clip EWD1 - 15mm
    9 Kč –11 %
    Hose clip EWD1 - 15mm
    Stock (>1000 pcs)
    Code: EWD1-15
    Was: 9 Kč  (–11 %)
    8 Kč
    (7 Kč excl. VAT)
    Hose clip EWD1 - 13mm
    8 Kč –12 %
    Hose clip EWD1 - 13mm
    Stock (>1000 pcs)
    Code: EWD1-13
    Was: 8 Kč  (–12 %)
    7 Kč
    (6 Kč excl. VAT)
    ews4 spona hadicova
    21 Kč –9 %
    Hose clamp EWS4 - 16 mm
    Stock (50 pcs)
    Code: EWS4-16
    Was: 21 Kč  (–9 %)
    19 Kč
    (16 Kč excl. VAT)
    ews4 spona hadicova
    16 Kč –6 %
    Hose clamp EWS4 - 8 mm
    Stock (24 pcs)
    Code: EWS4-08
    Was: 16 Kč  (–6 %)
    15 Kč
    (12 Kč excl. VAT)
    ews4 spona hadicova
    18 Kč –5 %
    Hose clamp EWS4 - 12 mm
    Stock (25 pcs)
    Code: EWS4-12
    Was: 18 Kč  (–5 %)
    17 Kč
    (14 Kč excl. VAT)
    Hose clip EWD1 - 7mm
    6 Kč –16 %
    Hose clip EWD1 - 7mm
    Stock (>1000 pcs)
    Code: EWD1-07
    Was: 6 Kč  (–16 %)
    5 Kč
    (4 Kč excl. VAT)
    ews4 spona hadicova
    14 Kč –7 %
    Hose clamp EWS4 - 6 mm
    Stock (20 pcs)
    Code: EWS4-06
    Was: 14 Kč  (–7 %)
    13 Kč
    (11 Kč excl. VAT)
    Hose clip EWD1 - 9mm
    Hose clip EWD1 - 9mm
    Stock (>1000 pcs)
    Code: EWD1-09

    7 Kč
    (6 Kč excl. VAT)
    ews4 spona hadicova
    31 Kč –6 %
    Hose clamp EWS4 - 31 mm
    up to 14 days
    Code: EWS4-31
    Was: 31 Kč  (–6 %)
    29 Kč
    (24 Kč excl. VAT)
    Show more products
    39 items total
    Hose clip EWD1 - 15mm
    Tip
    9 Kč –11 %
    Hose clip EWD1 - 15mm
    Stock (>1000 pcs)
    7 Kč excl. VAT
    8 Kč / pcs

    Deformation hose coupling EWD1 with a range of 13 to 15 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-15
    Hose clip EWD1 - 9mm
    Tip
    Hose clip EWD1 - 9mm
    Stock (>1000 pcs)
    6 Kč excl. VAT
    7 Kč / pcs

    Deformation hose coupling EWD1 with a range of 7 to 9 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-09
    Hose clip EWD1 - 11mm
    Tip
    Hose clip EWD1 - 11mm
    Stock (>1000 pcs)
    6 Kč excl. VAT
    7 Kč / pcs

    Deformation hose coupling EWD1 with a range of 9 to 11 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-11
    Hose clip EWD1 - 12mm
    Tip
    8 Kč –12 %
    Hose clip EWD1 - 12mm
    Stock (>1000 pcs)
    6 Kč excl. VAT
    7 Kč / pcs

    Deformation hose coupling EWD1 with a range of 10 to 12 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-12
    Hose clip EWD1 - 7mm
    Tip
    6 Kč –16 %
    Hose clip EWD1 - 7mm
    Stock (>1000 pcs)
    4 Kč excl. VAT
    5 Kč / pcs

    Deformation hose coupling EWD1 with a range of 5 to 7 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-07
    ews4 spona hadicova
    16 Kč –6 %
    Hose clamp EWS4 - 8 mm
    Stock (24 pcs)
    12 Kč excl. VAT
    15 Kč / pcs

    Deformation hose clamp EWS4 range 6,8 to 8,0 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-08
    Hose clip EWD1 - 23mm
    Tip
    Hose clip EWD1 - 23mm
    Stock (>1000 pcs)
    12 Kč excl. VAT
    14 Kč / pcs

    Deformation hose coupling EWD1 with a range of 20 to 23 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-23
    ews4 spona hadicova
    16 Kč –6 %
    Hose clamp EWS4 - 10 mm
    Stock (50 pcs)
    12 Kč excl. VAT
    15 Kč / pcs

    Deformation hose clamp EWS4 range 8,1 to 9,5 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-10
    Hose clip EWD1 - 20mm
    Tip
    12 Kč –8 %
    Hose clip EWD1 - 20mm
    Stock (>1000 pcs)
    9 Kč excl. VAT
    11 Kč / pcs

    Deformation hose coupling EWD1 with a range of 17 to 20 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-20
    ews4 spona hadicova
    14 Kč –7 %
    Hose clamp EWS4 - 6 mm
    Stock (20 pcs)
    11 Kč excl. VAT
    13 Kč / pcs

    Deformation hose clamp EWS4 range 5,1 to 6,1 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-06
    Hose clip EWD1 - 13mm
    Tip
    8 Kč –12 %
    Hose clip EWD1 - 13mm
    Stock (>1000 pcs)
    6 Kč excl. VAT
    7 Kč / pcs

    Deformation hose coupling EWD1 with a range of 11 to 13 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-13
    ews4 spona hadicova
    17 Kč –5 %
    Hose clamp EWS4 - 11 mm
    Stock (400 pcs)
    13 Kč excl. VAT
    16 Kč / pcs

    Deformation hose clamp EWS4 range 9,1 to 10,5 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-11
    Hose clip EWD1 - 18mm
    Tip
    12 Kč –8 %
    Hose clip EWD1 - 18mm
    Stock (>1000 pcs)
    9 Kč excl. VAT
    11 Kč / pcs

    Deformation hose coupling EWD1 with a range of 15 to 18 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-18
    Hose clip EWD1 - 21mm
    Tip
    13 Kč –7 %
    Hose clip EWD1 - 21mm
    Stock (>1000 pcs)
    10 Kč excl. VAT
    12 Kč / pcs

    Deformation hose coupling EWD1 with a range of 18 to 21 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-21
    ews4 spona hadicova
    14 Kč –7 %
    Hose clamp EWS4 - 7 mm
    Stock (50 pcs)
    11 Kč excl. VAT
    13 Kč / pcs

    Deformation hose clamp EWS4 range 6,1 to 7,0 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-07
    ews4 spona hadicova
    21 Kč –9 %
    Hose clamp EWS4 - 16 mm
    Stock (50 pcs)
    16 Kč excl. VAT
    19 Kč / pcs

    Deformation hose clamp EWS4 range 13,8 to 16,0 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-16
    ews4 spona hadicova
    18 Kč –5 %
    Hose clamp EWS4 - 12 mm
    Stock (25 pcs)
    14 Kč excl. VAT
    17 Kč / pcs

    Deformation hose clamp EWS4 range 10,1 to 11,8 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-12
    Hose clip EWD1 - 40mm
    Tip
    34 Kč –5 %
    Hose clip EWD1 - 40mm
    Stock (928 pcs)
    26 Kč excl. VAT
    32 Kč / pcs

    Deformation hose coupling EWD1 with a range of 37 to 40 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-40
    ews4 spona hadicova
    19 Kč –5 %
    Hose clamp EWS4 - 13 mm
    Stock (25 pcs)
    15 Kč excl. VAT
    18 Kč / pcs

    Deformation hose clamp EWS4 range 10,8 to 12,8 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-13
    Pliers for deformation buckles
    Original parts
    1 640 Kč –5 %
    Pliers for deformation buckles
    Stock (2 pcs)
    1 288 Kč excl. VAT
    1 558 Kč / pcs

    Pliers for mounting EW deformation clamps.

    Code: ZOSZ
    Hose clip EWD1 - 37mm
    Tip
    30 Kč –3 %
    Hose clip EWD1 - 37mm
    Stock (828 pcs)
    24 Kč excl. VAT
    29 Kč / pcs

    Deformation hose coupling EWD1 with a range of 34 to 37 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-37
    ews4 spona hadicova
    20 Kč –5 %
    Hose clamp EWS4 - 15 mm
    Stock (10 pcs)
    16 Kč excl. VAT
    19 Kč / pcs

    Deformation hose clamp EWS4 range 13,0 to 15,0 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-15
    ews4 spona hadicova
    21 Kč –4 %
    Hose clamp EWS4 - 17 mm
    Stock (10 pcs)
    17 Kč excl. VAT
    20 Kč / pcs

    Deformation hose clamp EWS4 range 14,6 to 16,8 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-17
    ews4 spona hadicova
    19 Kč –5 %
    Hose clamp EWS4 - 14 mm
    Stock (20 pcs)
    15 Kč excl. VAT
    18 Kč / pcs

    Deformation hose clamp EWS4 range 11,8 to 13,8 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-14
    ews4 spona hadicova
    22 Kč –4 %
    Hose clamp EWS4 - 18 mm
    Stock (100 pcs)
    17 Kč excl. VAT
    21 Kč / pcs

    Deformation hose clamp EWS4 range 15,3 to 17,5 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-18
    ews4 spona hadicova
    23 Kč –4 %
    Hose clamp EWS4 - 20 mm
    Stock (2 pcs)
    18 Kč excl. VAT
    22 Kč / pcs

    Deformation hose clamp EWS4 range 17,2 to 19,5 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-20
    ews4 spona hadicova
    23 Kč –4 %
    Hose clamp EWS4 - 21 mm
    Stock (20 pcs)
    18 Kč excl. VAT
    22 Kč / pcs

    Deformation hose clamp EWS4 range 18,7 to 21,0 mm with one eyelet and 7 mm wide strap. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-21
    Hose clip EWD1 - 25mm
    Tip
    18 Kč –5 %
    Hose clip EWD1 - 25mm
    Stock (>1000 pcs)
    14 Kč excl. VAT
    17 Kč / pcs

    Deformation hose coupling EWD1 with a range of 22 to 25 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-25
    Hose clip EWD1 - 27mm
    Tip
    19 Kč –5 %
    Hose clip EWD1 - 27mm
    Stock (318 pcs)
    15 Kč excl. VAT
    18 Kč / pcs

    EWD1 deformation hose coupling with a range of 23 to 27 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-27
    Hose clip EWD1 - 28mm
    Tip
    21 Kč –9 %
    Hose clip EWD1 - 28mm
    Stock (151 pcs)
    16 Kč excl. VAT
    19 Kč / pcs

    Deformation hose coupling EWD1 with a range of 25 to 28 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-28
    Hose clip EWD1 - 31mm
    Tip
    22 Kč –4 %
    Hose clip EWD1 - 31mm
    Stock (>1000 pcs)
    17 Kč excl. VAT
    21 Kč / pcs

    Deformation hose coupling EWD1 with a range of 28 to 31 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-31
    Hose clip EWD1 - 34mm
    Tip
    25 Kč –4 %
    Hose clip EWD1 - 34mm
    Stock (281 pcs)
    20 Kč excl. VAT
    24 Kč / pcs

    Deformation hose coupling EWD1 with a range of 31 to 34 mm. It allows very inexpensive connection of hoses with small diameters. Made of material W1 - white galvanized steel....

    Code: EWD1-34
    ews4 spona hadicova
    18 Kč –5 %
    Hose clamp EWS4 - 4 mm
    up to 14 days
    14 Kč excl. VAT
    17 Kč / pcs

    Deformation hose clamp EWS4 range 3,3 to 4,1 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-04
    ews4 spona hadicova
    31 Kč –6 %
    Hose clamp EWS4 - 31 mm
    up to 14 days
    24 Kč excl. VAT
    29 Kč / pcs

    Deformation hose clamp EWS4 range 27,2 to 30,7 mm with one eyelet and 7 mm wide strap. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-31
    ews4 spona hadicova
    26 Kč –3 %
    Hose clamp EWS4 - 24 mm
    up to 14 days
    21 Kč excl. VAT
    25 Kč / pcs

    Deformation hose clamp EWS4 range 21,0 to 23,5 mm with one eyelet and 7 mm wide strap. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-24
    ews4 spona hadicova
    29 Kč –6 %
    Hose clamp EWS4 - 26 mm
    up to 14 days
    22 Kč excl. VAT
    27 Kč / pcs

    Deformation hose clamp EWS4 range 23,6 to 26,3 mm with one eyelet and 7 mm wide band. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-26
    ews4 spona hadicova
    24 Kč –4 %
    Hose clamp EWS4 - 22 mm
    up to 14 days
    19 Kč excl. VAT
    23 Kč / pcs

    Deformation hose clamp EWS4 range 19,5 to 21,8 mm with one eyelet and 7 mm wide strap. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-22
    ews4 spona hadicova
    30 Kč –6 %
    Hose clamp EWS4 - 27 mm
    up to 14 days
    23 Kč excl. VAT
    28 Kč / pcs

    Deformation hose clamp EWS4 range 24,1 to 27,0 mm with one eyelet and 7 mm wide band. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-27
    ews4 spona hadicova
    14 Kč –7 %
    Hose clamp EWS4 - 5 mm
    up to 14 days
    11 Kč excl. VAT
    13 Kč / pcs

    Deformation hose clamp EWS4 range 4,1 to 5,1 mm with one eyelet and 4 mm tape width. Allows the connection of hoses with small diameters using deformation clamps. Made of W4 -...

    Code: EWS4-05
