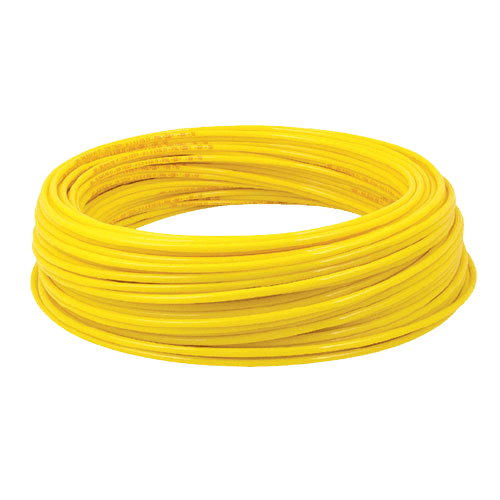

Polyamide hoses PA12 Longlife

Plastové nástrčné hadice PA12 Polyamid LongLife
  • Tubing manufactured to DIN 73378 / 74324
  • Excellent dimensional stability at higher temperatures
  • Operating temperature -40/+100 °C, hardness 64 °Sh
  • For joints with extreme demands on plastic tubing life

Plastic tubing made of polyamide PA12 Longlife according to DIN 73378

Order number Diameter
mm
Pressure
bar
Weight
g/m
Radius
bend

mm
azure blue clear black red yellow green external inside working defective
PL42A PL42B PL42N PL42S PL42R PL42Y PL42G 4 2 56 167 10 20
PL425A PL425B PL425N PL425S PL425R PL425Y PL425G 4 2,5 38 115 8 25
PL427A PL427B PL427N PL427S PL427R PL427Y PL427G 4 2,7 32 97 7 25
PL64A PL64B PL64N PL64S PL64R PL64Y PL64G 6 4 33 100 16 35
- PL85B PL85N PL85S - - - 8 5 38 115 31 40
PL86A PL86B PL86N PL86S PL86R PL86Y PL86G 8 6 24 71 22 40
PL108A PL108B PL108N PL108S PL108R PL108Y PL108G 10 8 19 56 29 60
- PL129B PL129N PL129S PL129R PL129Y - 12 9 24 71 50 70
PL1210A PL1210B PL1210N PL1210S PL1210R PL1210Y - 12 10 15 45 35 85
Important Notice : Some sizes of tubing are only available in a full 100m pack. Info in product detail.

If the hose is used at a temperature other than 20 °C, the working pressure is reduced in the following ratio

20°C 40°C 60°C 80°C 100°C
100% 85% 60% 40% 35%
