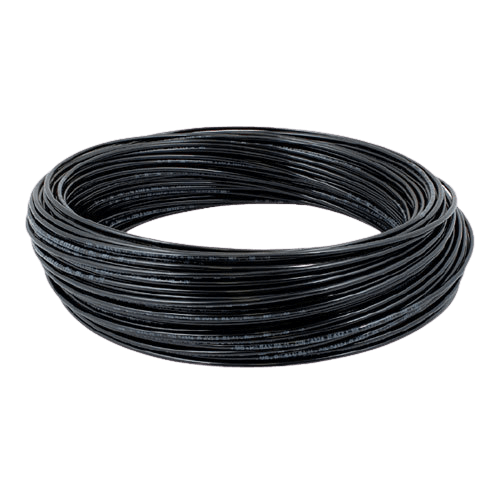

Polyamide hoses PA12 - air brakes

Černá plastová hadice PA12 pro brzdy
  • for automotive air brake systems
  • Tubing manufactured to DIN 73378 with excellent durability
  • Designed especially for truck and commercial vehicle air brake systems

PA12 polyamide hoses for air brakes

Order number Diameter mm Pressure bar Weight
g/m
Bend radius
mm
Packaging
m
black inside external working defective
PH64S
6 4 21 80 16 35 100
PH86S 8 6 15 57 22 40 100
PH106S 10 6 26 100 50 60 100
PH108S 10 8 11 44 28 60 100
PH129S 10 9 15 57 50 70 100
PH1612S 16 12 15 57 88 95 100
PH1814S 18 14 13 50 101 100 100
Important note : Tubing can be supplied in rolls of 100 m. Information in product detail.

If the hose is used at a temperature other than 20 °C, the working pressure is reduced in the following ratio

20°C 30°C 40°C 60°C 80°C
100% 83% 72% 58% 47%

Bestsellers

Tubing made of polyamide PA12 black 12/9 mm
75 Kč –5 %
Was: 75 Kč  (–5 %)
71 Kč
(59 Kč excl. VAT)
Tubing made of polyamide PA12 black 6/4 mm
22 Kč –4 %
Was: 22 Kč  (–4 %)
21 Kč
(17 Kč excl. VAT)
Tubing made of polyamide PA12 black 10/8 mm
40 Kč –5 %
Was: 40 Kč  (–5 %)
38 Kč
(31 Kč excl. VAT)
Tubing made of polyamide PA12 black 8/6 mm
31 Kč –3 %
Was: 31 Kč  (–3 %)
30 Kč
(25 Kč excl. VAT)
Tubing made of polyamide PA12 black 18/14 mm
164 Kč –4 %
Was: 164 Kč  (–4 %)
156 Kč
(129 Kč excl. VAT)
Tubing made of polyamide PA12 black 16/12 mm
134 Kč –5 %
Was: 134 Kč  (–5 %)
127 Kč
(105 Kč excl. VAT)
Tubing made of polyamide PA12 black 10/6 mm
82 Kč –4 %
Was: 82 Kč  (–4 %)
78 Kč
(64 Kč excl. VAT)
7 items total
Tubing made of polyamide PA12 black 10/8 mm
40 Kč –5 %
31 Kč excl. VAT
38 Kč / m

Black 10/8 mm hose manufactured to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH108S
Tubing made of polyamide PA12 black 6/4 mm
22 Kč –4 %
17 Kč excl. VAT
21 Kč / m

Black 6/4 mm hose manufactured to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH64S
Tubing made of polyamide PA12 black 8/6 mm
31 Kč –3 %
25 Kč excl. VAT
30 Kč / m

Black 8/6 mm hose manufactured to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH86S
Tubing made of polyamide PA12 black 12/9 mm
75 Kč –5 %
59 Kč excl. VAT
71 Kč / m

Black 12/9 mm hose manufactured to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH129S
Tubing made of polyamide PA12 black 10/6 mm
82 Kč –4 %
64 Kč excl. VAT
78 Kč / m

Black 10/6 mm hose manufactured to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH106S
Tubing made of polyamide PA12 black 18/14 mm
164 Kč –4 %
129 Kč excl. VAT
156 Kč / m

Black 18/14 mm hose manufactured to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH1814S
Tubing made of polyamide PA12 black 16/12 mm
134 Kč –5 %
105 Kč excl. VAT
127 Kč / m

Black hose 16/12 mm manufactured according to DIN 73378 with excellent durability. Designed especially for truck and commercial vehicle air brake systems.

Code: PH1612S
