    Hose for Steam Profi 165 steam - 28/16 mm

    Code: SP165-16
    Not rated
    Brand: ESSENTIAL
    Hose for Steam Profi 165 steam - 28/16 mm
    418 Kč / m 345 Kč excl. VAT
    up to 20 days
    Delivery to:
    18.12.2024

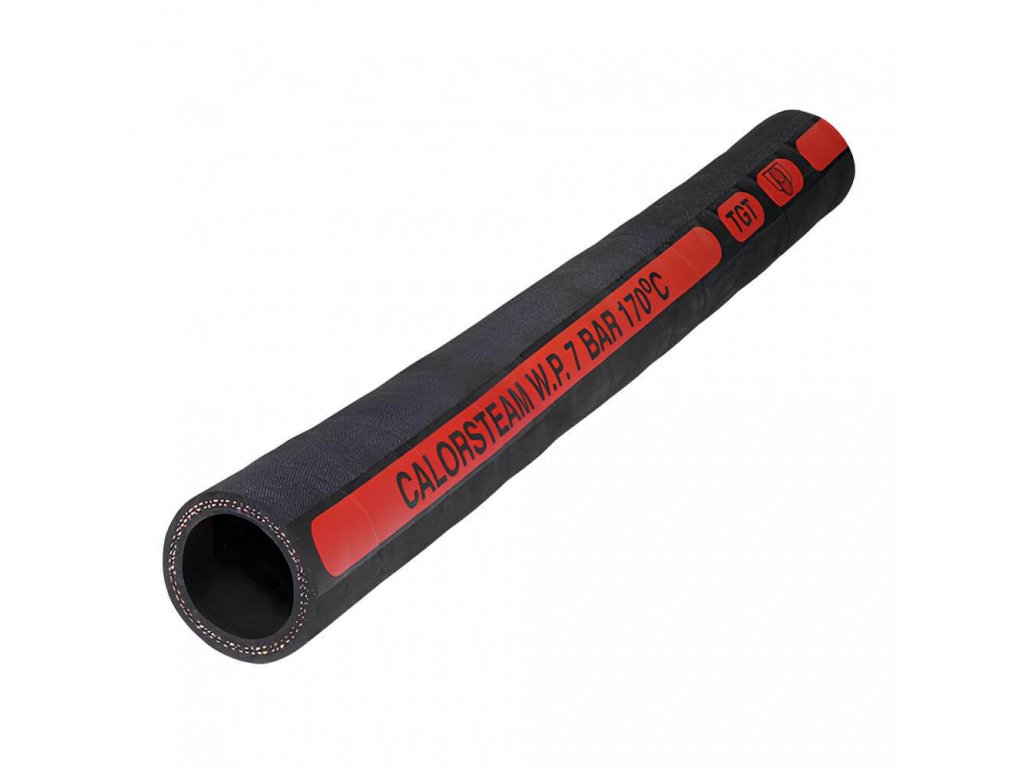

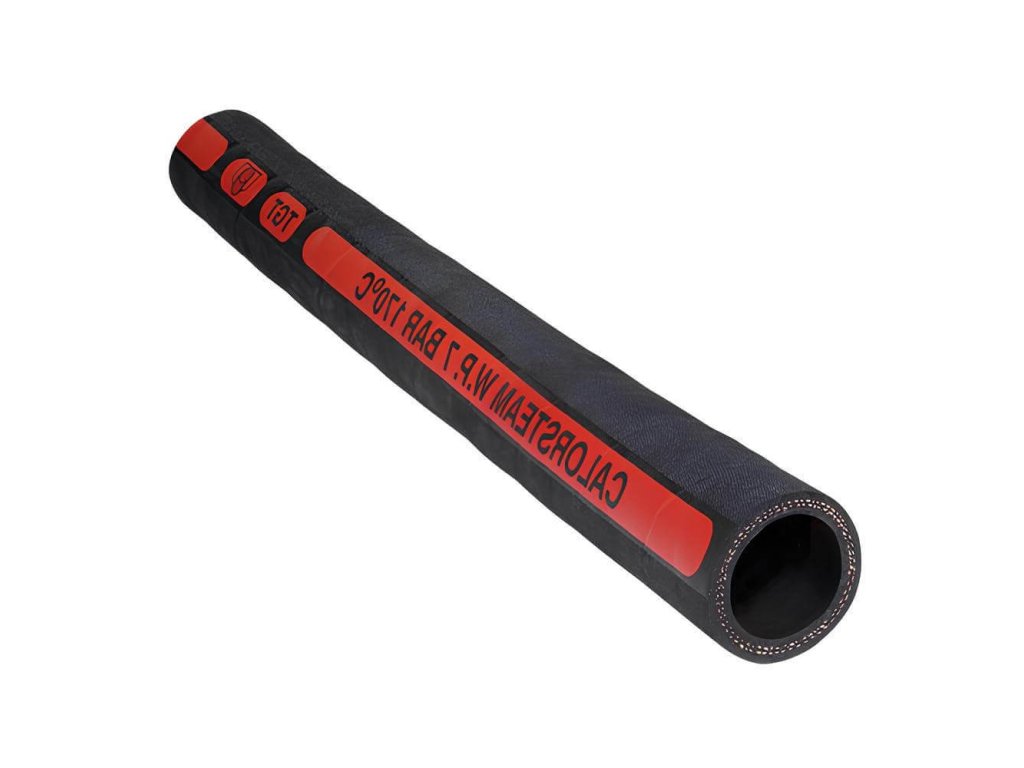

    Pressure hose for transport of pressure saturated steam up to +170 °C, diameter 28/16 mm with red stripe. Reinforcement high-strength textile braid; working temperature -40/+170 °C. Black EPDM inner tube, temperature resistant; black EPDM outer jacket, textile-imprinted, temperature, abrasion and ozone resistant. The hose complies with DIN 2825. Working pressure 7 bar, failure pressure 60 bar.

    Detailed information

    Product detailed description

    Steam Hose Profi 165 for steam - SP165-16

    • inner tube made of black EPDM, temperature resistant; outer sheath made of black EPDM, with textile imprint, temperature, abrasion and ozone resistant
    • reinforcement high-strength textile braid; working temperature -40/+170 °C
    • working pressure 7 bar, failure pressure up to 19 mm diameter 70 bar, from 25 mm diameter 56 bar
    • hose conforms to DIN 2825
    • pressure hose for transport of pressure saturated steam up to +170 °C

    Additional parameters

    Category: Steam Hose Steam Profi 165
    Pressure: 7 bar
    Barva: Black
    Material: EPDM
    Medium: Steam
    Temperature: -40/+170 °C
    Outer diameter: 28 mm
    Inner diameter: 16 mm

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Range of Pipes and Hoses

    Regardless of the material, hoses, pipes, and tubes find wide applications across all areas not only in industry. Parker, as one of the world's largest manufacturers, offers a wide range of such products, using materials such as rubber, stainless steel, thermoplastics, or even fluoropolymers in their manufacturing process. The company offers several series, so that customers can always find the most suitable one that meets their requirements. One of these series is the Essential.

    		 global_petroleum___pts_blog_pic_2_1
    1

    Giant with Wide Scope

    Parker is not only the largest manufacturer of hoses and pipes but is also involved in the overall field of motion control, which is why it is divided into several divisions that focus on the specific area. These areas include: hydraulics, automation, filtration, sealing, aerospace, process control, and fluid and gas handling. It is no wonder that it is a mark of proven quality, and when you add a globalized production, employing 55,000 people and with a deep tradition dating back to 1917, customer satisfaction is instantly ensured.
